Roerborg - IMO 9592599

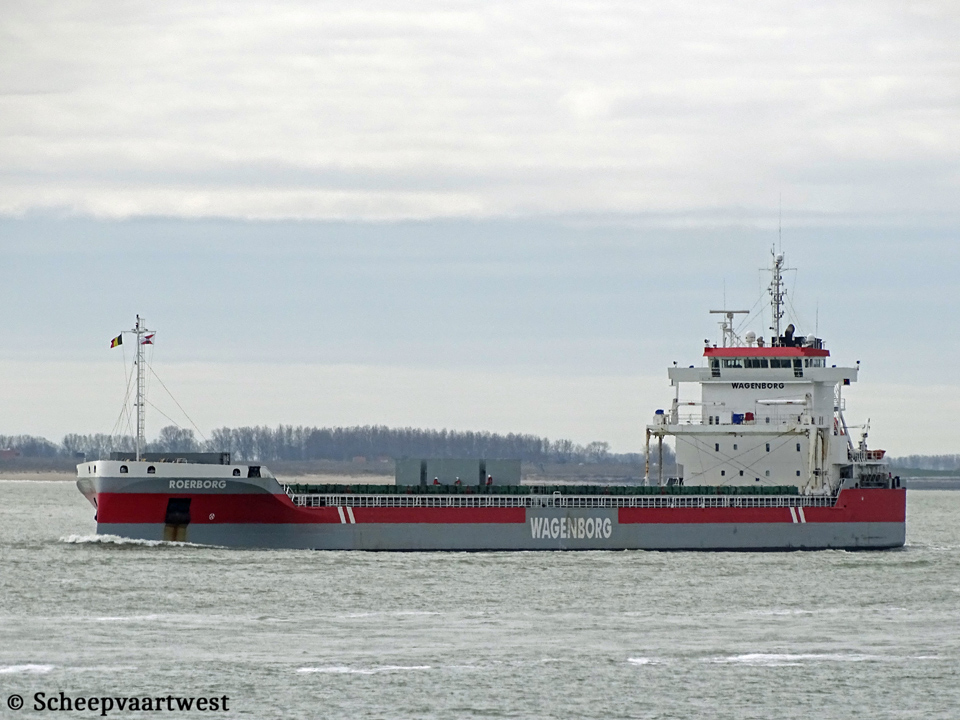

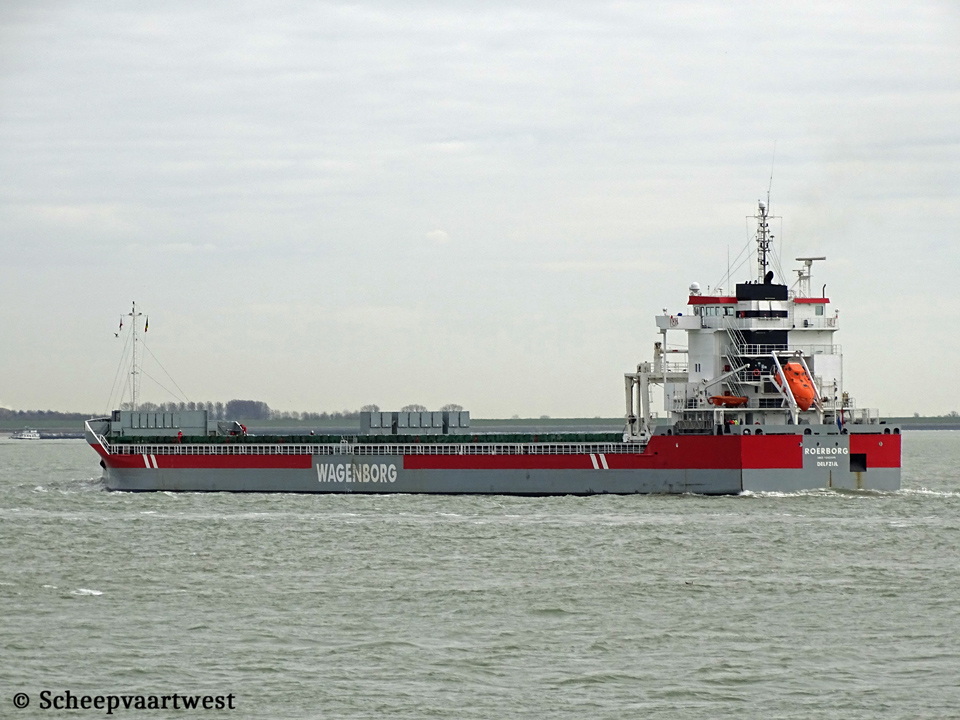

Westerschelde 18 March 2020

Name

ROERBORG

Type

General dry cargo ship - Container ship - Single-decker

IMO-number

9592599

Call sign

PCPO

Flag

The Netherlands

Port of registry

Delfzijl

GT

14.224 t

DWT

Summer: 23.249 t

SWCC

22.000 t

NT

6.853 t

Length

169,75 m overall

166,09 m between perpendiculars

Breadth

20,40 m

Draught

Summer: 9,72 m

Air draft

35,24 m in ballast

Freeboard

4.056 mm

Depth

13,75 m moulded

Speed

Max: 13,5 knots

Built

2014

Launch date

04/07/2014

Date of completion

12/09/2014

Builder

Ferus Smit Leer GmbH

Germany

Yard number

405

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Movable bulkheads

2

Continuous decks

1

Main engine

1x MaK 9M32C - 4 stroke single acting 9 cylinder 320 x 480 mm combustion engine 4.500 kW / 6.114 bhp at 600 rpm

Build: 17/12/2013

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 110,0 rpm

4 blades with nozzle - Diameter 4.720 mm

Shaft generator

1x 1.238 kVA - 990 kW

Generators

2x Main diesel generatorsets each 520 kVA - 416 kW - 595 hp

Emergency generator

1x Diesel generatorset 179 kVA - 143 kW - 211 hp

Bow thruster

1x 860 kW

Number of holds

2x Box shaped - both holds are open hatch, no understow, double skinned

Hold 1: 60,59 x 17,00 x 13,55 m

Hold 2: 60,59 x 17,00 x 13,55 m

Total capacity of holds

Grain/bale:

26.746,50 m³ / 945.000 ft³

Hold ventilation

Electrical ventilation, 12 air changes per hour basis empty holds - Both holds are fitted with de humidifier system

Number of hatches

2

hatch 1: 60,59 x 17,00 m

Hatch 2: 60,59 x 17,00 m

Hatch type

Coops & Nieborg pontoon hatchcovers

Tank capacities

HFO: 1.066 m³

MGO: 120 m³

Water ballast: 10.093 m³

Fresh water: 101 m³

Manager

Wagenborg Shipping B.V.,

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Registered owner

Roerborg Beheer B.V.

Delfzijl

The Netherlands

Latest data adjustment

11 January 2021
