Malaga, Spain, 20 February 2021 |
|
Name |

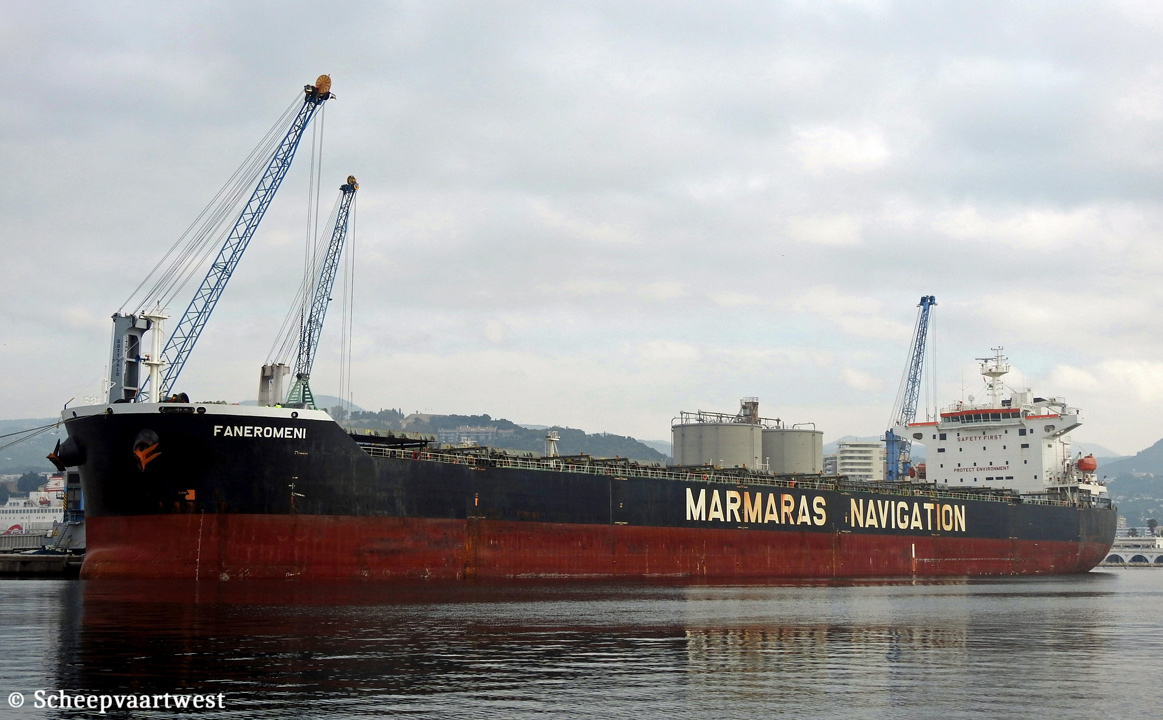

FANEROMENI |
|
Hellenic name |
ΦANEPΩMENH |
|
Type |
Bulk carrier - Strengthened for heavy cargoes - Panamax |
|
IMO-number |
9343857 |
|
Call sign |
SVKG |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
GT |
50.177 t |
|
DWT |
Summer: 92.484 t |
|
NT |
30.679 t |
|
Length |
229,50 m overall 331,60 m between perpendiculars |
|
Breadth |
36,92 m moulded |
|
Draught |
12,20 m |
|
Forecastle |
16,98 m |
|
Deckhouse |
13,60 m |
|
Freeboard |
5.828 mm |
|
Depth |
20,50 m moulded |
|
Speed |
Service: 13,8 knots Max: 16,5 knots |
|
Built |
2007 |
|
Keel laid |
20/06/2006 |
|
Date of completion |
21/05/2007 |
|
Builder |
Sungdong Shipbuilding & Marine Engineering Co., Ltd. Tongyeong South Korea |
|
Yard number |
S1004 |
|
Hull material |
Steel |
|
Bulkheads |
8 |
|
Continuous decks |
1x Upper deck |
|
Main engine |
1x STX/MAN-B&W 7S50MC-C - 7 cylinder 500 x 2.000 mm combustion engine 11.060 kW at 127,0 rpm Build: 07/09/2006 Manufacturer: STX Engine. Co., Ltd., South Korea |
|
Propellers |
1 |
|
Boilers |
1x Composite boiler - 0,59 MPa Heating surface: 22 / 306 m² Build: 20/06/2006 Manufacturer: KangRim Industries Co. Ltd. |
|
Generators |
3x FE547B-10 main diesel generatorsets each 600 kW - 450 Volt Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of holds |
7 |
|
Cargo hold capacity |
Hold 1: (G 13.872,50 m³) - (B 13.178,90 m³) Hold 2: (G 16.085,20 m³) - (B 15.280,90 m³) Hold 3: (G 16.083,10 m³) - (B 15.279,00 m³) Hold 4: (G 16.085,00 m³) - (B 15.280,70 m³) Hold 5: (G 16.083,10 m³) - (B 15.278,90 m³) Hold 6: (G 16.034,20 m³) - (B 15.232,50 m³) Hold 7: (G 14.794,80 m³) - (B 14/055,00 m³) Total: Grain: 109.037,9 m³ - Bale: 103.585,9 m³ |
|
Number of hatches |
7 6x 17,50 x 17,60 m 1x 14,62 x 15,80 m |
|
Tank capacities |
Ballast: 25.425 m³ |
|
Lifting equipment |
1x Crane - SWL 3,1 t 1x Crane - SWL 5,2 t |
|
Cargo gear |
Gearless |
|
Manager |
Marmaras Navigation Ltd. Zefirou 58 17564 Palaio Faliro Athens Greece |
|
Operator |
Marmaras Navigation Ltd. |
|
Registered owner |
Faneromeni Special Maritime Enterprise Greece |
|
Latest data adjustment |
24 February 2021 |
