Westerschelde 21 March 2020 |
|
Name |

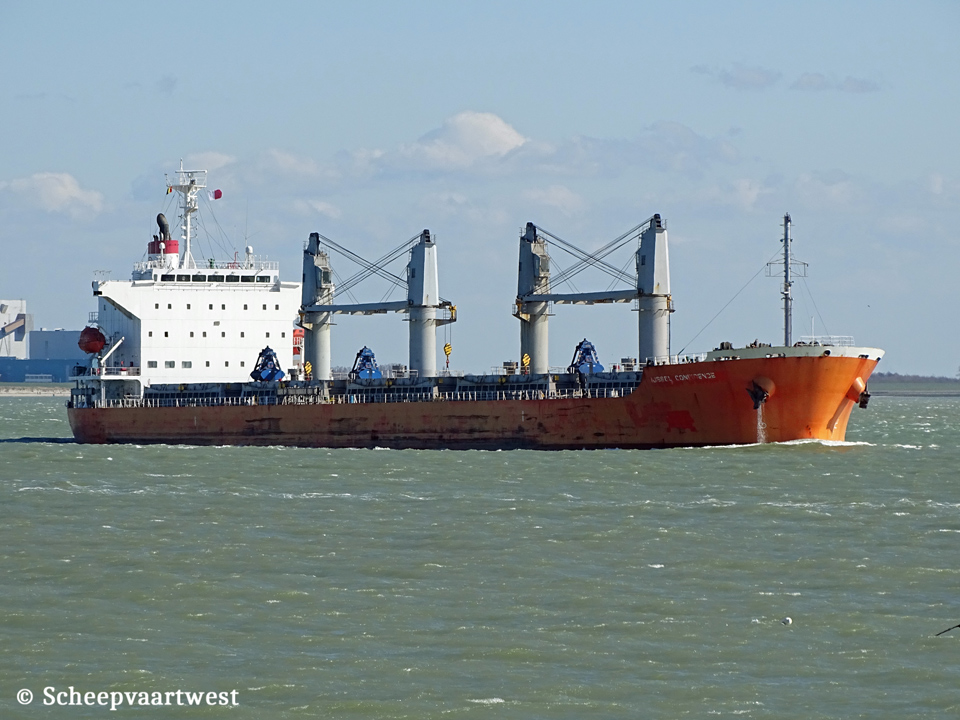

IJSSEL CONFIDENCE |
|
Previous names |
Ocean Wealth |
|
Type |
Handymax bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9604809 |
|
Call sign |
CQIW8 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2012 - 2014 Republic of Panama, Panama City - Call sign: 3EYP6 2014 - 2019 Republic of Singapore, Singapore city - Call sign: 9V3059 |
|
GT |
23.264 t registered Suez: 23.815 t |
|
DWT |
Summer: 38.243 t |
|
NT |
12.134 t registered |
|
Lightweight |
8.061 t Suez: 21.648 t Panama: 19.375 t |
|
Length |
179,97 m overall |
|
Breadth |
29,80 m moulded |
|
Draught |
Summer: 10,54 m |
|
Moulded L x B x D |
173,00 x 29,80 x 15,00 m |
|
Registered L x B x D |
173,52 x 29,80 x 15,00 m |
|
Keel top mast |
44,41 m |
|
Freeboard |
Summer: 4.500 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Laden: 13,0 knots Ico: 12,0 knots Max: 16,7 knots |
|
Built |
2012 |
|
Keel laid |
24/09/2010 |
|
Launch date |
29/11/2011 |
|
Date of completion |
17/01/2012 |
|
Builder |
Imabari Zosen K.K. (Imabari Shipbuilding Co., Ltd.) Imabari Japan |
|
Yard number |
794 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Makita Mitsui MAN-B&W 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.686 bhp at 129,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,16 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Yanmar 6EY18AL diesel generatorsets each 550 kVA - 450 Volt 60 Hz |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 272.187 ft³ / 260.626 ft³ Hold 2: 350.774 ft³ / 338.164 ft³ Hold 3: 351.978 ft³ / 338.265 ft³ Hold 4: 351.566 ft³ / 338.244 m³ Hold 5: 337.735 ft³ / 326.908 ft³ Total: 1.664.240 ft³ / 1.602.207 ft³ 47.125 m³ / 45.369 m³ |
|
Floor space holds |
Hold 1: 27,40 x 16,93 m Hold 2: 27,40 x 25,70 m Hold 3: 27,40 x 25,70 m Hold 4: 27,40 x 25,70 m Hold 5: 29,20 x 17,33 m |
|
Floor space hatches |
Hatch 1: 15,87 x 17,06 m Hatch 2: 20,04 x 20,02 m Hatch 3: 20,04 x 20,02 m Hatch 4: 20,04 x 20,02 m Hatch 5: 20,04 x 20,02 m |
|
Hatch type |
MacGregor hydraulic folding type |
|
Tank capacities |
Fuel oil: 1.946 m³ - 100% Fuel oil: 1.320 m³ - 85% MGO: 333 m³ - 85% Fresh water: 294 m³ Ballast: 15.132 m³ - 100% Slop tanks: 402 m³ |
|
Cargo gear |
4x Electric/hydraulic cranes - SWL 30,5 t each Manufacturer: Mitsubishi Heavy Indiustries |
|
Crew |
21 |
|
Manager |
Hellas Confidence Shipmanagement S.A. Marinou Antipa 14 Alimos 174 55 Greece |
|
Operator |
OSR Rotterdam B.V. (Orient Shipping Rotterdam), Capelle a/d IJssel The Netherlands |
|
Registered owner |
IJssel Shipping Ltd. |
|
Latest data adjustment |
10 April 2020 |
