Westerschelde 31 October 2019 |
|
Name |

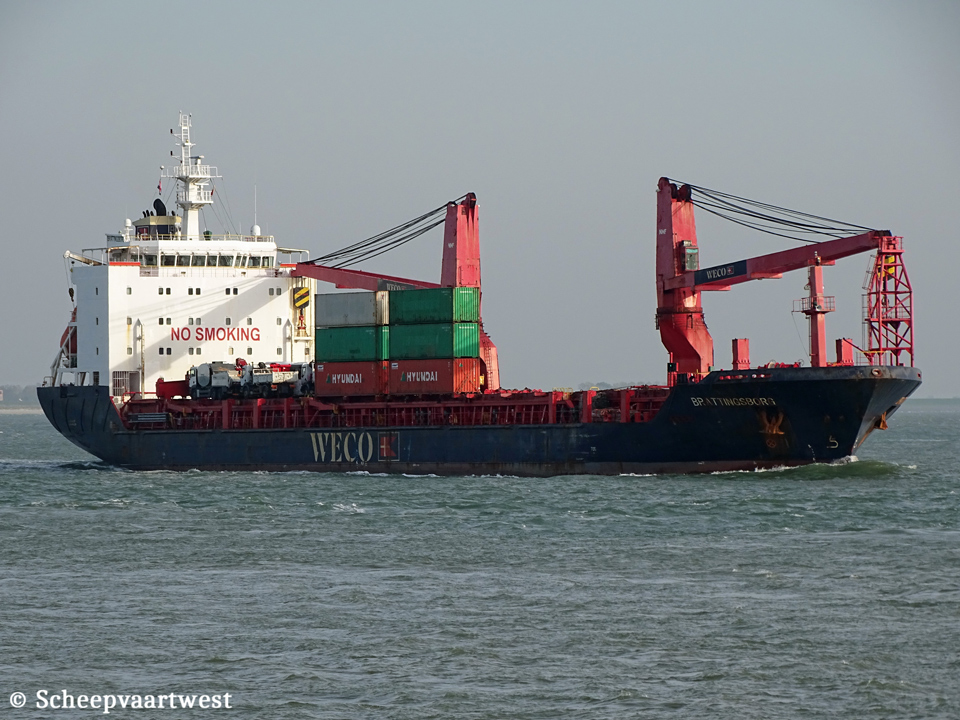

BRATTINGSBORG |
|
Previous names |
2010 - 06/2011 Brattingsborg 09/2011- 09/2011 OXL Rebel 09/2011- 05/2012 Brattingsborg 05/2012 - 05/2014 Clipper Agnes |
|
Type |
Multi-purpose carrier - Strengthened for heavy cargoes |
|
IMO-number |
9488035 |
|
Call sign |
HP2103 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2010 - 2015 Republic of Singapore; Singapore City - Call sign: 9V8924 |
|
GT |
9.627 t |
|
DWT |
Summer: 12.767 t |
|
NT |
4.261 t |
|
Displacement |
Lightship: 5.205 t |
|
Number of 20ft containers |
In hold: 334 On deck: 331 Total: 665 |
|
Reefer capacity |
50 |
|
Length |
183,54 m overall 130,00 m between perpendiculars |
|
Breadth |
21,03 m |
|
Draught |
Summer: 8,00 m |
|
Air draft |
43,04 m |
|
Depth |
11,00 m |
|
Speed |
15,0 knots |
|
Built |
2010 |
|
Builder |
Taizhou Sanfu Ship Engineering Co. Taizhou China |
|
Yard number |
SF070107 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 Stroke single acting 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.342 hp at 514 rpm Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
1x Controllable pitch propeller- at at 132,0 rpm |
|
Shaft generator |
1x 750 kW |
|
Generators |
3x MAN D2842LE - 4 stroke 12 cylinder 128 x 142 mm diesel engines each 535 kW connected with HCM 634 G2 generators each 500 kW/ 400 Volt |
|
Emergency generator |
1x Caterpillar 4XCAT43406 |
|
Bow thruster |
1x Tunnel thruster 500 kW / 680 bhp |
|
Number of holds |
3 Hold 1: 18,75 x 15,04/10,08 m Hold 2: 42,00 x 17,50 m Hold 3: 25,50 m x 17,50 m |
|
Cargo hold capacity |
Grain & bale: 15.953 m³ |
|
Number of hatches |
3 |
|
Max permitted loads |
Tanktop strength: 16,0 t/m² Hold 1: 2,5 t/m² Hold 2 Upper Position: 2,5 t/m² Hold 2 Lower + Mid Position: 4,0 t/m² Hold 3: 4,0 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 957 m³ Diesel oil: 152 m³ |
|
Cargo gear |
2x Deck cranes - SWL 150 t each Combinable - SWL 300 t |
|
Crew size |
18 |
|
Registered owner |
Hono Ship Investment Inc. Republic of panama |
|
Renamed |
2020 BBC Missouri Liberia, Monrovia - Call sign: D5ZC7 Reg. owner: Hono Ship Investment Inc. Manager: Carisbrooke Shipping Ltd. - United Kingdom Commercial manager: BBC Chartering |
|
Latest data adjustment |
13 June 2021 |
