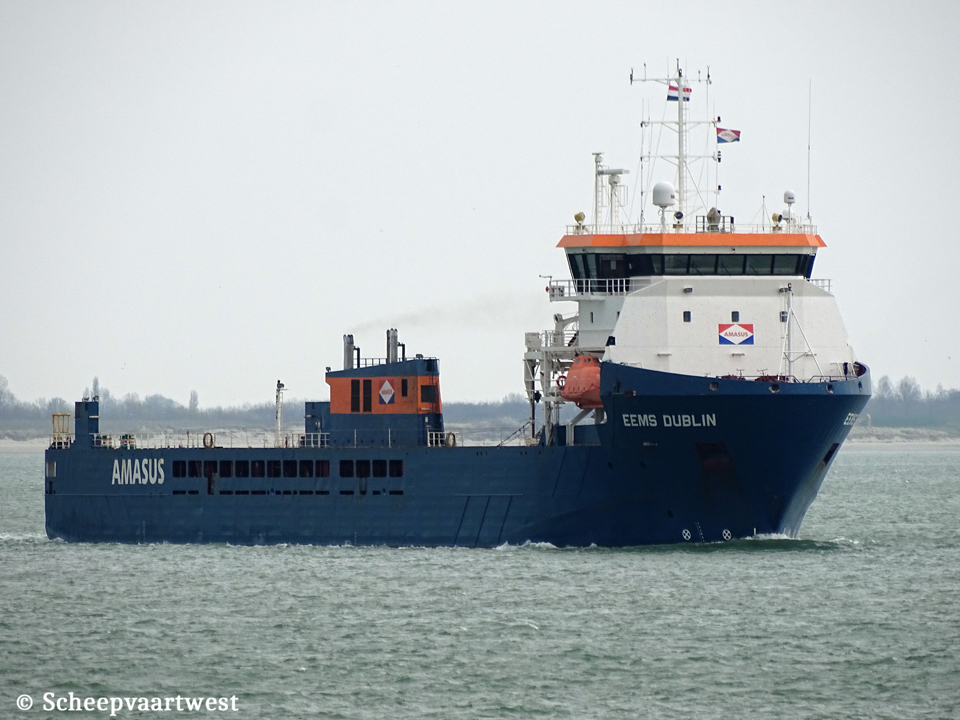

Westerschelde 31 March 2019 |
 |
| Westerschelde 05/04/19 |
|
Name |
EEMS DUBLIN |
|
Previous names |
2012 - 2017 Abis Dublin |
|
Type |
General cargo ship - Heavycargo - Occasional dry bulk cargo Open top, Tweendeck |
|
IMO-number |
9613642 |
|
Call sign |
PCKG |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
2012 - 2017 The Netherlands, Harlingen - Call sign: PCKG |
|
GT |
4.678 t |
|
DWT |
Summer: 6.000 t |
|
DWCC |
Summer: 5.800 t Winter: 4.650 t |
|
NT |
1.997 t |
|
Number of 20ft containers |
On deck: 138 In hold: 128 Total: 266 |
|
Length |
107,95 m overall 99,67 m between perpendiculars |
|
Breadth |
16,00 m |
|
Draught |
Summer: 6,45 m |
|
Air draft |
31,00 m |
|
Freeboard |
2.860 mm |
|
Depth |
9,30 m moulded |
|
Speed |
12,0 knots |
|
Built |
2012 |
|
Date of completion |
17/12/2012 |
|
Builder casco |
Partner Stocznia Sp.z.o.o. Poland |
|
Builder completion |
Shipkits B.V. Harlingen The Netherlands |
|
Yard number |
107 |
|
Hull material |
Steel |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
Saab-Scania DI16 55 M - 4 stroke 8 cylinder combustion engine total 2.890 kW / 3.926 hp Builder: Scania D.E., Södertalje - Sweden |
|
Propelling type |
Electrical |
|
Propelling system |
2x Azimuth thruster solid - aft at 1.600 rpm |
|
Generators |
6x Scania diesel generators with 2x Leroy Somer VG6000 (Diesel Electrical) at 1.495 rpm |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 158 hp |
|
Bow thruster |
2x 450 kW |
|
Number of holds |
1 Lower hold: 62,30 x 11,50 x 4,53 m Upper hold: 80,00 x 12,00 x 4,69 m |
|
Cargo hold capacity |
Bale & Grain: 8.390 m³ / 282.500 ft³ |
|
Number of hatches |
1 86,00 x 16,00 m - Open top |
|
Hatches type |
Pontoon |
|
Max permitted loads |
Tween deck: 3,5 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel: 566,4 m³ |
|
Cargo gear |
1x Multi-docker Caterpillar on movable gantry 17,0 t at 10,00 m 8,0 t at 20,00 m |
|
Manager |
Amasus Shipping B.V. Abel Tasmanplein 4 9934 GD Delfzijl The Netherlands |
|
Previous managers |
2012 - 2017 Abis Shipping Company B.V., Harlingen - The Netherlands |
|
Owner |
Scheepvaartonderneming Eems Dublin BV Delfzijl The Netherlands |
|
Previous names & owners |
2012 - 2017 Abis Dublin - Beheermaatschappij Abis Dublin B.V., Harlingen - The Netherlands |
|
Latest data adjustment |
30 June 2021 |
