Westerschelde 06 April 2019 |
|
Name |

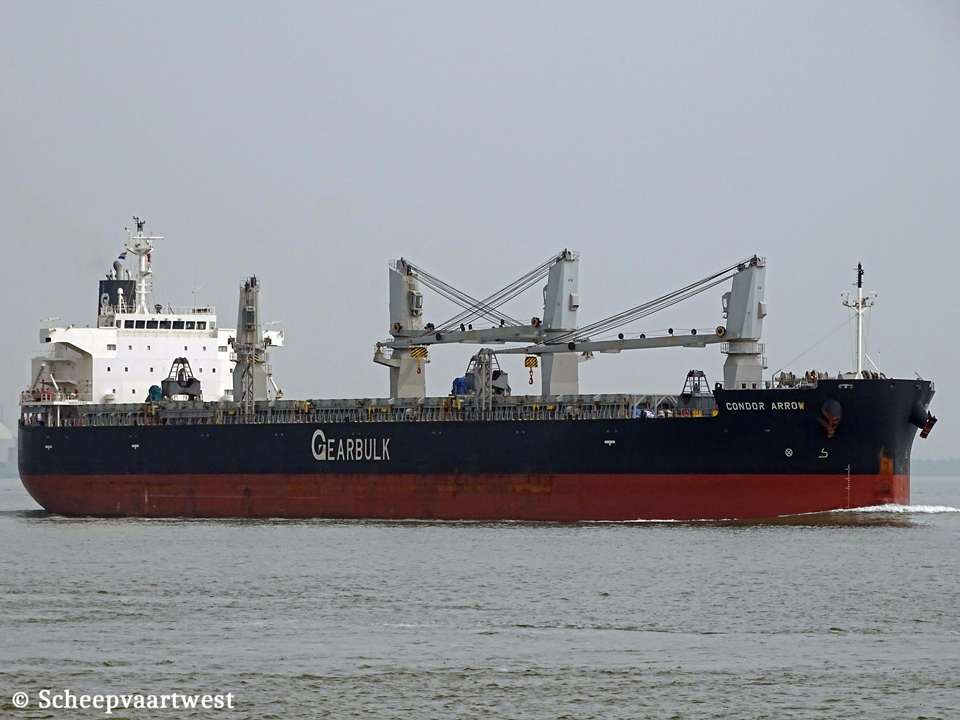

CONDOR ARROW |
|
Type |
General cargo carrier - Strengthened for heavy cargo loading Open hatch |
|
IMO-number |
9552886 |
|
Call sign |
3FHY3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
37.046 t |
|
DWT |
52.980 t |
|
NRT |
18.298 t |
|
Number of 20ft containers |
270 |
|
Length |
199,98 m overall |
|
Breadth |
32,26 m moulder |
|
Draught |
Summer: 13,51 m |
|
Moulded L x B x D |
196,00 x 32,26 x 19,22 m |
|
Registered L x B x D |
196,11 x 32,26 x 19,22 m |
|
Freeboard |
5.786 mm |
|
Depth |
19,22 m moulded |
|
Speed |
14,5 knots Eco: 12,2 knots |
|
Built |
2012 |
|
Keel laid |
14/05/2010 |
|
Launch date |
30/11/2011 |
|
Date of completion |
09/02/2012 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Japan |
|
Yard number |
10627 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x MAN-B&W/Kawasaki 6S50MC-C8 - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.605 kW at 110,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd.- Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter 495 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 2,87 t/h Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
1x Daihatsu 5DK-20 diesel generatorset Mcr 800 kW 2x Daihatsu 6DK-20 diesel generatorsets each Mcr 850 kW Builder: Daihatsu Diesel Mfg. Co., Ltd. |
|
Emergency generator |
1x Deutz BF 6L 913 diesel generatorset 118 KW |
|
Bow thruster |
1x 1.480 kW |
|
Number of holds |
8 Hold 1: 16,80 x14,80 x 19,26 m Hold 2,3,4,5,6,7,8: 18,30 x 27,40 x 19,26 m |
|
Cargo hold capacity |
Bale: 70.283 m³ Grain: 71.312 m³ |
|
Number of hatches |
8 |
|
Max permitted loads |
Hatch covers: 2,50 t/m² Tank top holds 1,2,4,6,8: 27,0 t/m² Tank top holds 3,5,7: 28,0 t/m² |
|
Tank capacities |
Fuel oil: 2.177,4 m³ Fresh water: 551,2 m³ Ballast: 21.399 m³ |
|
Lifting equipment |
Length: 660,00 m Diameter: 76 mm |
|
Cargo gear |
4x Jib cranes - SWL - 40,0 t each Grab fitted: 4x 12 m³ |
|
Crew |
20 |
|
Manager |
Temm Maritime, Co., Ltd. 123-1, Higashimachi, Chuo-Ku Boueki Bldg 810 Kobe 650-0031 Japan |
|
Operator |
G2 Ocean AS Grieg-Gaarden, C. Sundtsgate 17 5004 Bergen Norway |
|
Registered owner |
Glory Ocean Shipping SA Piso 15, Banco general Tower Calle Aquilino de la Guarda y Calle 50 Panama City Republic of Pabama |
|
Latest data adjustment |
04 August 2021 |
