Westerschelde 05 April 2019 |
Name |

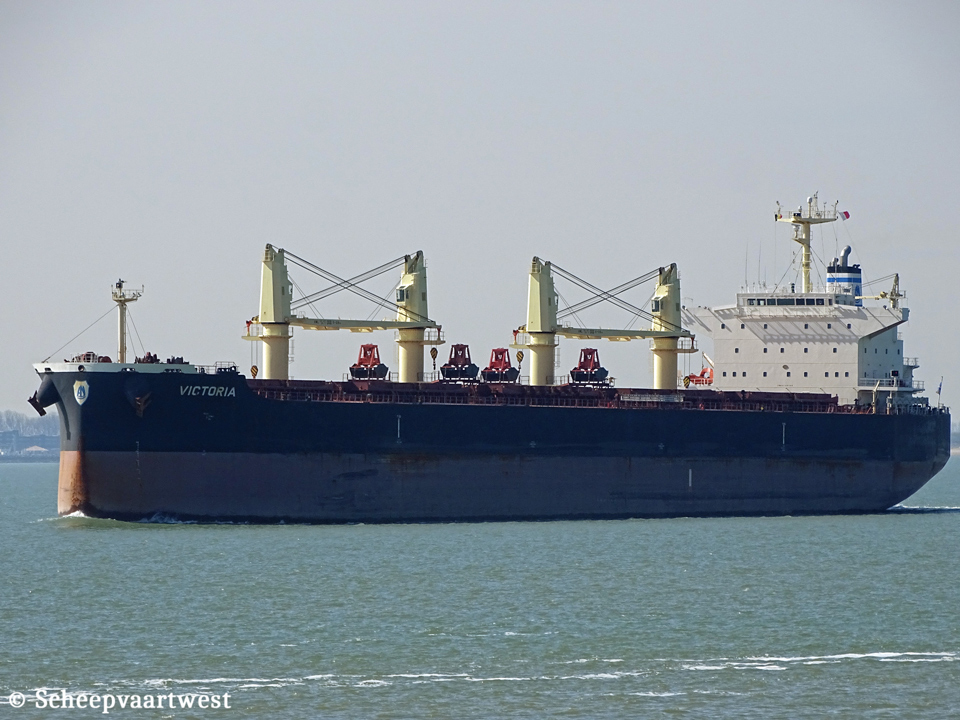

VICTORIA |
Type |
Geared bulk carrier - Strengthened for heavy cargo loading - Ultramax |
IMO-number |
9738466 |
Call sign |
V7LN2 |
Flag |
Marshall Islands |
Port of registry |
Majuro |
GRT |
34.619 t Suez: 25.400 t |
DWT |
Summer: 61.620 t winter: 59.983 t |
NRT |
20.170 t Suez: 32.270 t Panama: 28.675 t |
Length |
199,90 m overall |
Breadth |
32,24 m moulded |
Draught |
Summer: 13,03 m Winter: 12,75 m |
Moulded L x B x D |
197,00 x 32,24 x 18,60 m |
Registered L x B x D |
197,00 x 32,24 x 18,60 m |
Freeboard |
Summer: 5.627 mm |
Depth |
18,60 m moulded |
Speed |
Service: 14,0 knots Max: 16,2 knots |
Built |
2016 |
Keel laid |
28/04/2015 |
Launch date |
04/08/2015 |
Date of completion |
07/01/2016 |
Builder |
Nantong COSCO KHI Ship Engineering Co., Ltd. China |
Yard number |
NE204 |
Hull material |
Steel |
Hull type |
Single hull |
Main engine |
1x MAN-B&W 6S50ME-B9 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 8.130 kW / 11.054 hp at 108,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
Propellers |
1x Fixed pitch propeller |
Boilers |
1x Auxiliary vertical boiler - 0,7 MPa Evaporation: 1,60 t/h Manufacturer: Alfa Laval Qingdao Ltd. |
Generators |
4x Diesel generatorsets total 2.599 kVA |
Number of holds |
5 Hold 1: Length 29,37m, Width fwd 10,20 m, mid 20,00 m, aft 23,88 m Holds 2-4: Length 28,80 m, Width 23,88 m Hold 3: Length 26,70 m, Width 23,88 m Hold 5: Length 26,79 m, Width fwd 23,88 , mid 20,00 , aft 8,10 m |
Cargo hold capacity |
Grain / Bale Hold 1 : 14.270,3 / 13.581,1 m³ Hold 2: 16.805,6 / 16.091,1 m³ Hold 3: 15.631,3 / 14.816,3 m³ Hold 4: 16.805,6 / 16.090,5 m³ Hold 5: 14.033,4 / 13.578,6 m³ Total: 77.546,2 / 74.157,6 m³ |
Caro hold capacity |
Grain: 77.546,3 m³ Bale: 73.552,0 m³ |
Hold ventilation |
Natural ventilation |
Numb er of hatches |
5 Hatch 1: 18,69 x 18,60 m Hatches 2-5: 21,36 x 18,60 m |
Hatch type |
4 Panels per hatch, end folding, double skin-hydraulic cylinder operated |
Tank capacities |
Fuel oil: 2.127,0 m³ Fresh water: 319,7 m³ |
Cargo gear |
4x Electro/hydraulic deck cranes - SWL 30,5 t each Grabs: 4x 12,5 m³ |
Commerical manager |
A.M. Nomikos Transworld Maritime Agencies S.A. Euroco Building, 1, Alamanas Street Marousi, 151 25 Athens Greece |
ISM manager |
AM Nomikos Transworld Maritime Euroco Building, 1, Alamanas Street Marousi, 151 25 Athens Greece |
Registered owner |
Ariel Maritime Incorporation Care of AM Nomikos Transworld Maritime Agencies SA, Euroco Building, 1, Alamanas Street Marousi, 151 25 Athens Greece |
Latest data adjustment |
05 August 2021 |
