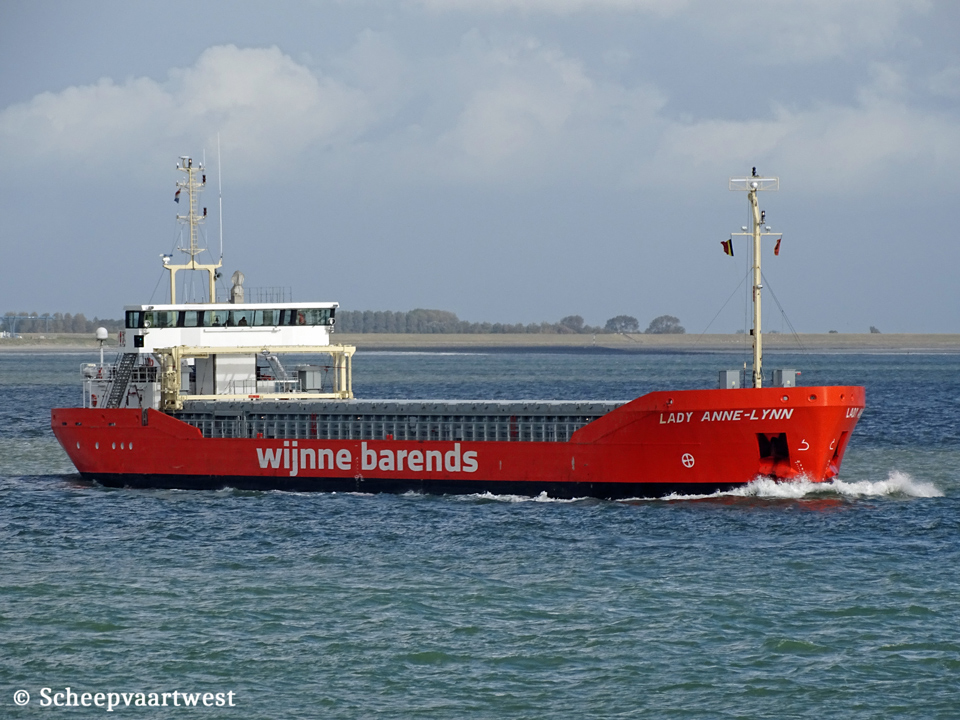

Westerschelde 29 August 2020 |
|
Name |
LADY ANNE-LYNN |
|
Type |
General dry cargo ship - Strengthened for heavy cargoes |
|
IMO-number |
9760392 |
|
Call sign |
PCMD |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.544 t |
|
DWT |
3.688 t |
|
DWCC |
Summer/winter: 3.550 t |
|
NT |
1.216 t |
|
Number of 20ft containers |
16 |
|
Length |
88,00 m overall 84,98 m between perpendiculars |
|
Breadth |
13,35 m moulded |
|
Draught |
Summer: 4,91 m |
|
Air draft |
8,50 m in ballast |
|
Depth |
7,05 m moulded |
|
Speed |
Service: 10,0 knots Max: 13,9 knots |
|
Built |
2016 |
|
Launch date |
02/04/2016 |
|
Date of completion |
06/2016 |
|
Builder |
Groningen Shipyard B.V. Waterhuizen The Netherlands |
|
Yard number |
160 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3508 C - 4 stroke single acting 8 cylinder 170 x 190 mm combustion engine Mcr 746 kW / 1.014 bhp at 1.600 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 214 rpm |
|
Generators |
1x Perkins C6.6 diesel engine Mcr 155 kW connected with generator 126 ekW / 400 Volt 50Hz 1x Saab-Scania DI12 - 4 stroke 6 cylinder 127 x 154 mm diesel engine Mcr 331 kW connected with generator 216 ekW / 400 Volt 50Hz |
|
Bow thruster |
1x Tunnel thruster 265 kW / 260 bhp, forward |
|
Number of holds |
1 62,30 x 10,80 x 7,73 m |
|
Cargo hold capacity |
Grain: 4.860 m³ Bale: 4.830 m³ |
|
Timber capacity |
5.300 m³ |
|
Number of hatches |
1 62,30 x 11,07 m |
|
Cargo gear |
Gearless |
|
Manager |
Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V. Handelskade Oost 5 9934 AR Delfzijl The Netherlands |
|
Registered owner |
Beheermaatschappij Lady Anne-Lynn B.V. Handelskade Oost 5 9934 AR Delfzijl The Netherlands |
|
Latest data adjustment |
08 August 2021 |
