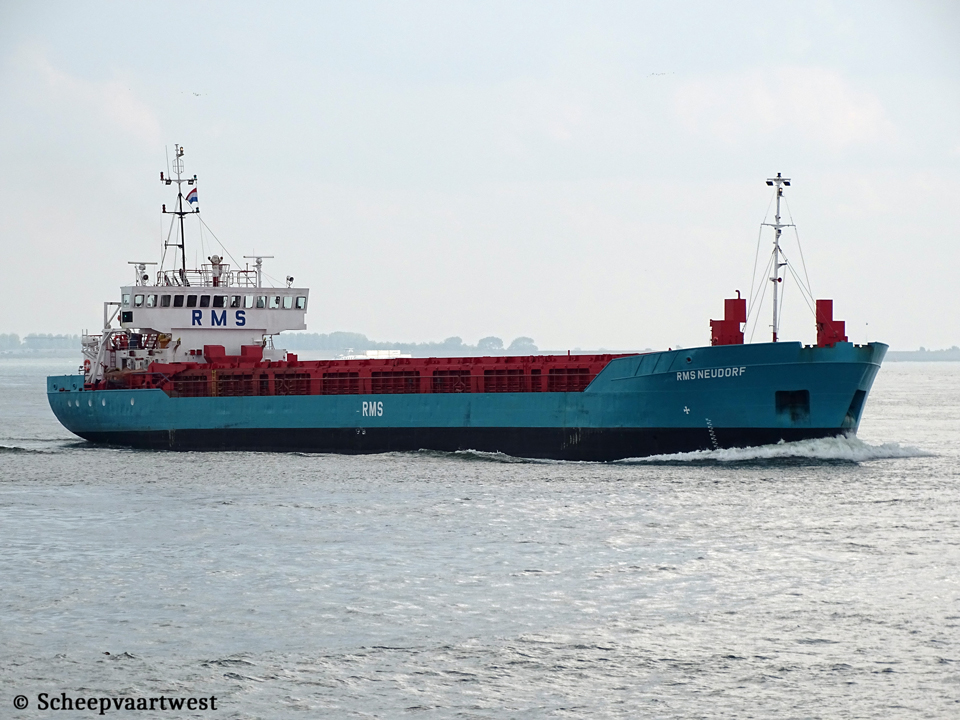

Westerschelde 17 August 2020 |
 |
 |
|

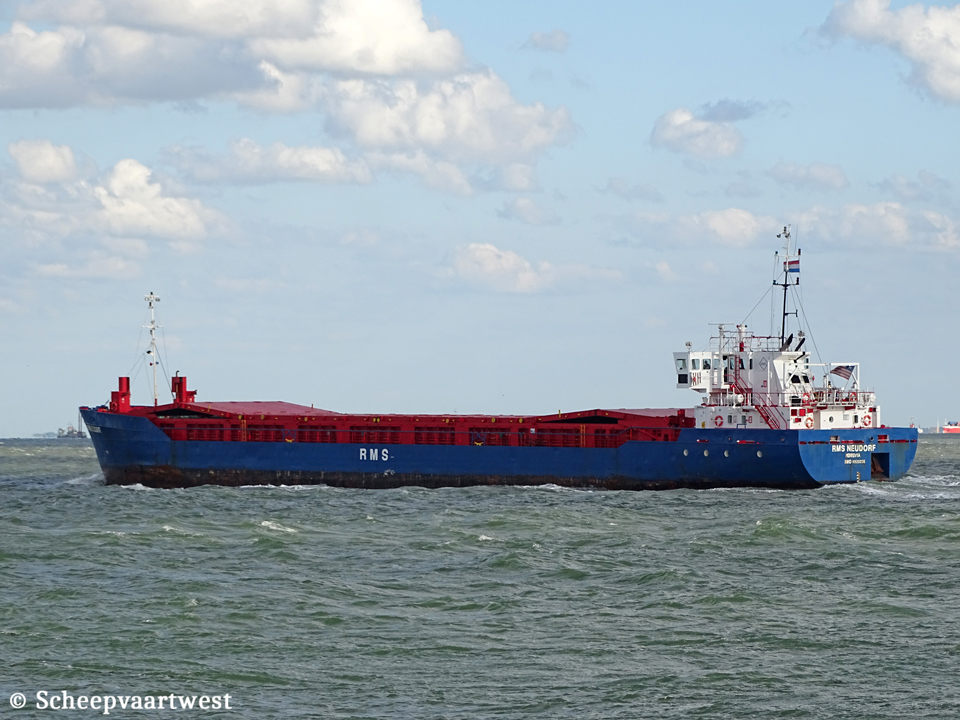

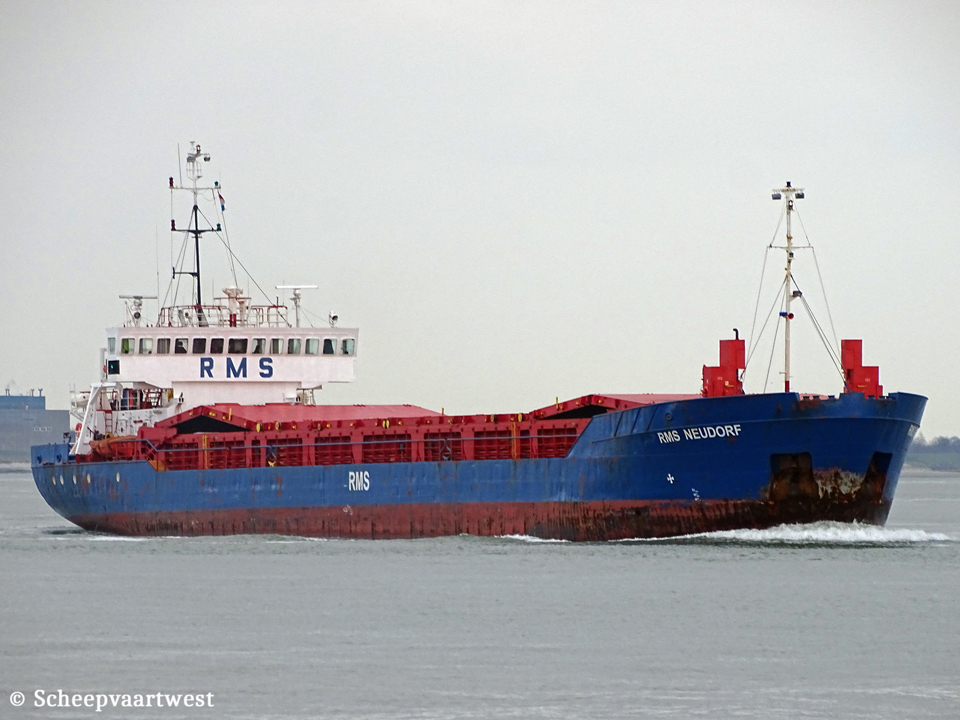

| Westerschelde 27/03/19 | Westerschelde 07/09/18 |
|
Name |
RMS NEUDORF |
|
Previous names |
1990 Launched as: Rosemarie 1990 - 10/1990 Sagitta |
|
Type |
General cargo ship - Strengthened for heavy cargo Sea - Rivergoing vessel |
|
IMO-number |
8920256 |
|
Call sign |
D5LW9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
1990 - 1993 Germany, Hamburg - Call sign: DPGO 1993 - Antigua & Barbuda, St. John’s - Call sing: V2AI5 |
|
GT |
1.985 t |
|
DWT |
Summer: 2.620 t |
|
DWCC |
Summer: 2.500 t Winter: 2.400 t |
|
NT |
969 t |
|
Number of 20ft containers |
102 |
|
Length |
82,46 m overall 79,65 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Summer: 4,47 m Winter: 4,37 m |
|
Air draft |
10,00 m 3,32 m ballast |
|
Depth |
6,50 m moulded |
|
Speed |
Service: 10,5 knots |
|
Built |
1990 |
|
Keel laid |
22/12/1990 |
|
Launch date |
07/05/1990 |
|
Date of completion |
14/10/1990 |
|
Builder casco |
Damen Scheepswerf Bergum BV Bergum The Netherlands |
|
Builder completion |
Damen Scheepswerf Gornnichem BV Gorninchem The Netherlands |
|
Yard number |
8254 |
|
Hull material |
Stel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2 (7 positions) |
|
Main engine |
1x MaK 6M332AK - 4 stroke 6 cylinder 240 x 330 mm combustion engine 1.200 kW / 1.632 hp at 900 rpm Builder: Krupp Mak Maschinenbau GmbH, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 600 kW |
|
Generators |
2x Caterpillar 3304 B DINA - 4 stroke 4 cylinder 121 x 152 mm diesel each Mcr 123 kW connected with generators each 105 ekW |
|
Emergency generator |
1x Diesel generatorset 65 kW |
|
Bow thruster |
1x 200 kW |
|
Number of holds |
1x Fully box 57,50 x 10,00 x 6,81 m |
|
Cargo hold capacity |
Grain: 4.020 m³ Grain: 142.100 ft³fitted with two grain bulkheads |
|
Hold ventilation |
6x |
|
Number of hatches |
1 57,50 x 10,00 m |
|
Hatch type |
Multifold crocodile |
|
Max permitted loads |
Tanktop: 12,0 t/m² Hatch covers: 1,5 t/m² |
|
Anchor equipment |
Length: 385,00 m Diameter: 32 mm |
|
Crew |
7 |
|
ISM & commercial manager |
Bulkers Marine Ltd. 49, Methonis Street 185 45 Piraeus Greece |
|
Operator |
Rhenus Maritime Services GmbH Krausstraße 1a 47119 Duisburg Germany |
|
Registered owner |
Neudorf Shipping S.A. Care of Bulkers Marine Ltd 49, Methonis Street 185 45 Piraeus Greece |
|
Previous owners |
|
|
Latest data adjustment |
01 January 2022 |
