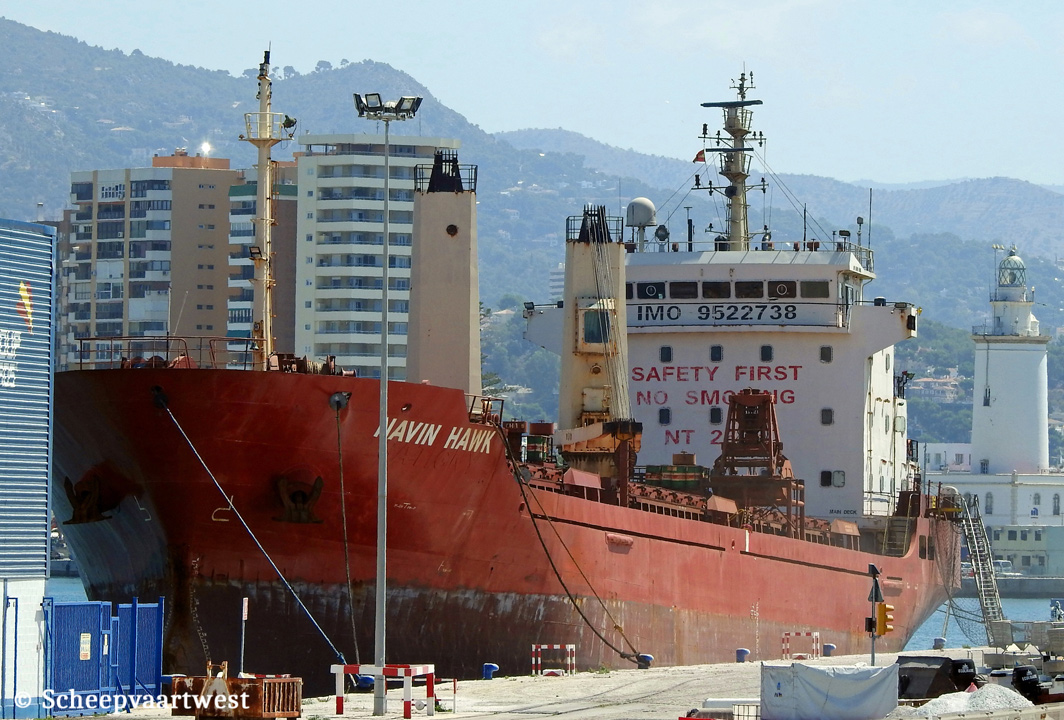

Malaga, Spain 13 July 2021 |
|
Name |
NAVIN HAWK |
|
Previous names |
2008 Launch as: Universe 8 2009 - 2015 Sarigny |
|
Type |
General dry cargo ship |
|
IMO-number |
9522738 |
|
Call sign |
V7LK6 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
Previous flags |
Malta, Valletta - Call sign: 9HVQ9 |
|
GT |
5.087 t |
|
DWT |
Summer: 7.390 t Winter: 7.157 t |
|
NT |
2.625 t |
|
Length |
112,80 m overall 106,00 m between perpendiculars |
|
Breadth |
17,20 m |
|
Draught |
Summer: 6,90 m Winter: 9,76 m |
|
Freeboard |
2.112 mm |
|
Depth |
9,10 m moulded |
|
Speed |
11,0 knots |
|
Built |
2009 |
|
Date of completion |
15/01/2009 |
|
Builder |
Universe Shipbuilding (Yangzhou ) Co.,Ltd. Yizheng China |
|
Yard number |
H06-006 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Daihatsu/Shaanxi 8DKM-28 - 4 stroke 8 cylinder 280 x 390 mm combustion engine 2.500 kW / 3.397 hp at 750 rpm Builder: Shanxi Diesel Engine Heavy Industry Co. Ltd. |
|
Propellers |
1x Fixed pitch propeller - aft at 178 rpm |
|
Boilers |
1x CHO 70;00 m² - 8,0 bar |
|
Generators |
3x Main diesel generatorsets each 313 kVA - 250 kW - 386 hp |
|
Emergency generator |
1x Diesel generatorset 64 kW |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain: 9.394 m³ |
|
Cargo gear |
2x Deck cranes - SWL 25,0 t each |
|
Crew |
14 |
|
ISM & commercial manager |
Bright Denizcilik ve Gemi Isletmeciligi AS Organize 2. Cadde 5, Esensehir Mah, Umraniye 34776 Istanbul Turkey |
|
Registered owner |
Nordic Gale Navigation Ltd. Care of Bright Denizcilik ve Gemi Isletmeciligi AS, Organize 2. Cadde 5, Esensehir Mah, Umraniye 34776 Istanbul Turkey |
|
Latest data adjustment |
23 September 2021 |
