Westerschelde 27 October 2020 |
|
Name |

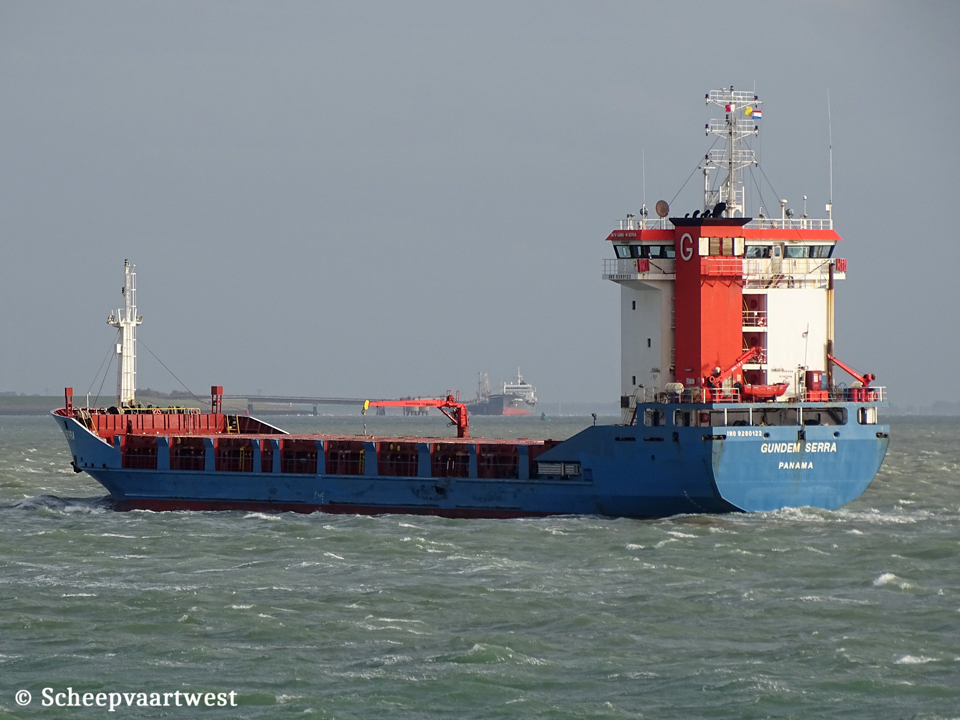

GUNDEM SERRA |
|
Previous names |
2004 - 2015 Gundem 2 |
|
Type |
Multi-purpose dry cargo ship |
|
IMO-number |
9280122 |
|
Call sign |
3EUJ9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2004 - 2015 Turkey, Istanbul - Call sign: TCCT5 |
|
GT |
2.995 t registered |
|
DWT |
6.029 t |
|
NT |
1.840 t registered |
|
Number of 20ft containers |
404 |
|
Length |
94,72 m overall 84,72 m between perpendiculars |
|
Breadth |
17,00 m |
|
Draught |
Summer: 6,91 m |
|
Moulded L x B x D |
94,72 x 17,00 x 8,30 m |
|
Registered L x B x D |
84,95 x 17,00 x 8,30 m |
|
Freeboard |
1.411 mm |
|
Depth |
8,30 m |
|
Speed |
14,5 knots |
|
Built |
2004 |
|
Keel laid |
01/05/2002 |
|
Date of completion |
05/05/2004 |
|
Builder |
Gisan Gemi İnşa Sanayi ve Ticaret A.Ş Turkey |
|
Yard number |
31 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32 - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine Mcr 2.880 kW / 3.616 hp at 600 rpm Builder: Caterpillar Motoren GMBH & Co. KG, Kiel - Germany |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler - 10,0 MPa Evaporation: 800,00 kW |
|
Generators |
5x Generator total 2.108 kVA |
|
Number of holds |
2 |
|
Cargo hold capacity |
Bale: 6.388,10 m³ Grain: 6.654,27 m³ |
|
Number of hatches |
2 |
|
Tank capacities |
Fuel oil: 552,16 m³ fresh water: 154,99 m³ |
|
Cargo gear |
Gearless |
|
Crew |
12 |
|
ISM & commercial manager |
Gundem Denizcilik Ticaret ve Sanayi AS Blok E, Serdivan Sokak 4, Dogu Mah, Pendik Istanbul Turkey |
|
Registered owner |
Parlar Shipping Inc. Care of Gundem Denizcilik Ticaret ve Sanayi AS Guzin Sokak 39, Aydintepe Mah Tuzla, Istanbul Turkey |
|
Latest data adjustment |
26 October 2021 |
