Westerschelde 29 August 2020 |
|
Name |

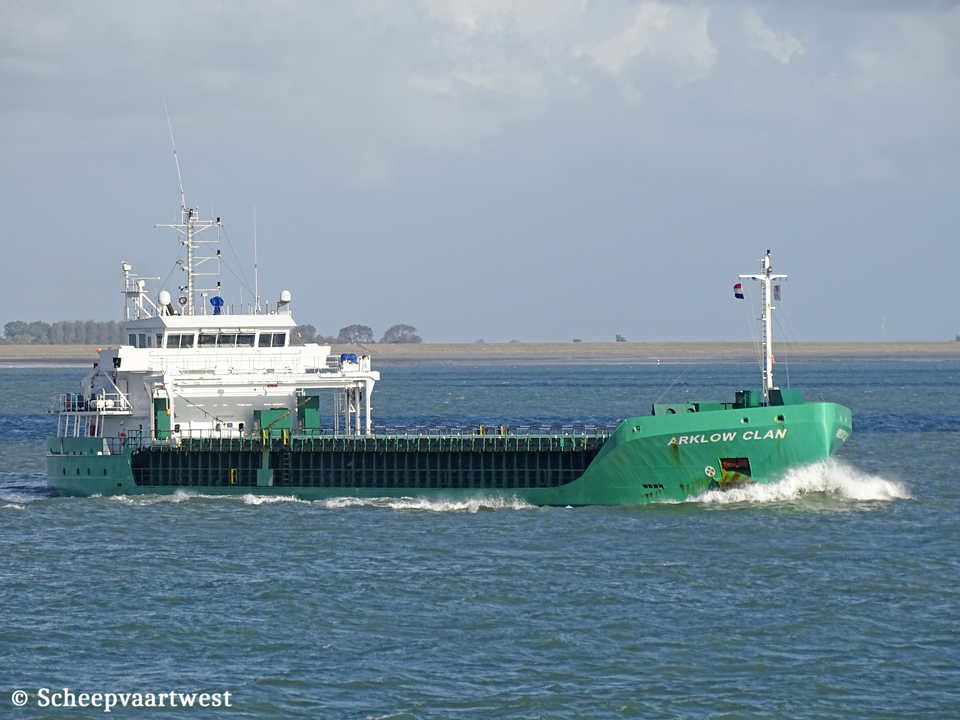

ARKLOW CLAN |
|
Type |
General cargo ship - Heavycargo - Occasional dry bulk cargo |
|
IMO-number |
9757113 |
|
Call sign |
EISK6 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.999 t |
|
DWT |
Summer: 4.990 t Winter: 4.823 t |
|
NT |
1.692 t |
|
Length |
87,40 m overall 84,99 m between perpendiculars |
|
Breadth |
14,99 m moulded |
|
Draught |
Summer: 6,26 m Winter: 6,13 m Ballast: 3,88 m |
|
Air draft |
Min: 21,70 m |
|
Freeboard |
868 mm |
|
Depth |
7,12 m |
|
Speed |
12,0 knots |
|
Built |
2017 |
|
Launch date |
07/04/2017 |
|
Date of completion |
12/08/2017 |
|
Builder |
Scheepswerf Ferus Smit B.V. Hoogezand The Netherlands |
|
Yard number |
427 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Portable bulkheads may be placed in 11 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.740 kW / 2.364 hp at 720 rpm Build: 20/09/2016 Builder: Caterpillar Motoren Gmbh & Co. KG, Anqing - China |
|
Propellers |
1x Screw propeller controllable pitch - aft at 148 rpm |
|
Shaft generator |
1x 340 kW |
|
Generators |
2x Main diesel generatorsets each 208 kVA - 166 kW - 247 hp |
|
Emergency generator |
1x diesel generatorset 100 kVA - 80 kW - 109 hp |
|
Bow thruster |
1x Electric bow thruster 275 kW |
|
Number of holds |
1 59,80 x 12,60 x 8,50 m |
|
Total capacity of holds |
Grain: 6.138 m³ Bale: 6.106 m³ |
|
Hold ventilation |
6x Changes p/h in empty hold |
|
Number of hatches |
1 59,80 x 12,60 m |
|
Hatch type |
Pontoon system |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,75 t/m² |
|
Tank capacities |
HFO: 101 m³ Gas oil: 96 m³ |
|
Crew size |
10 |
|
Commerical manager |
Arklow Shipping Nederland BV Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
ISM manager |
Arklow Shipping ULC North Quay, Arklow, Co Wicklow Ireland |
|
Registered owner |
Crinnis Shipping Limited Care of Arklow Shipping Nederland BV Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Latest data adjustment |
20 November 2021 |
