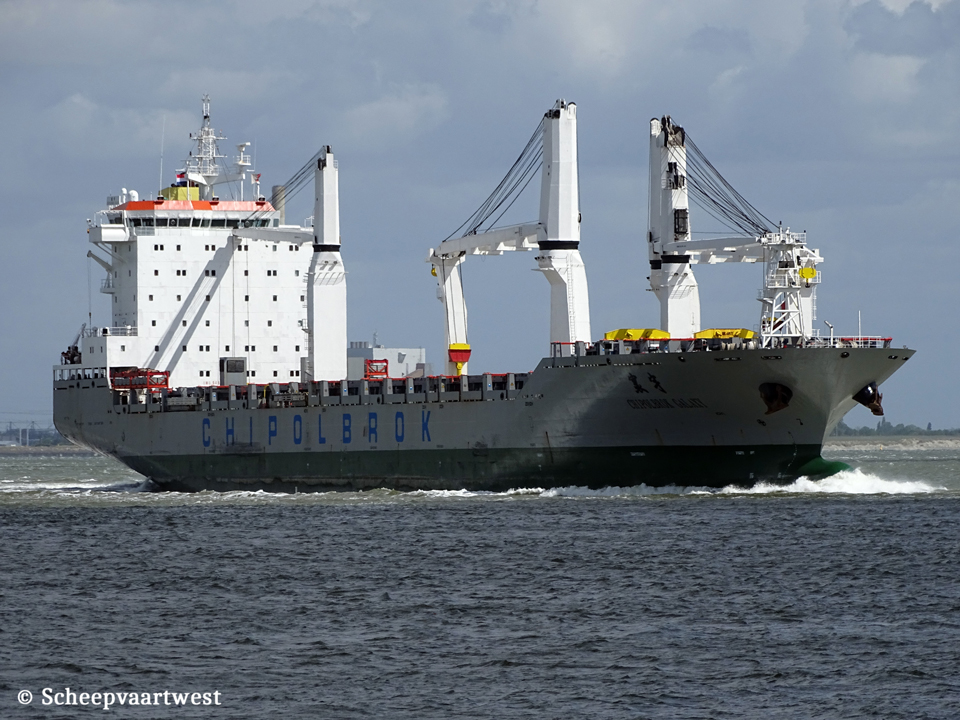

Westerschelde 04 May 2019 |
 |
 |
 |
||

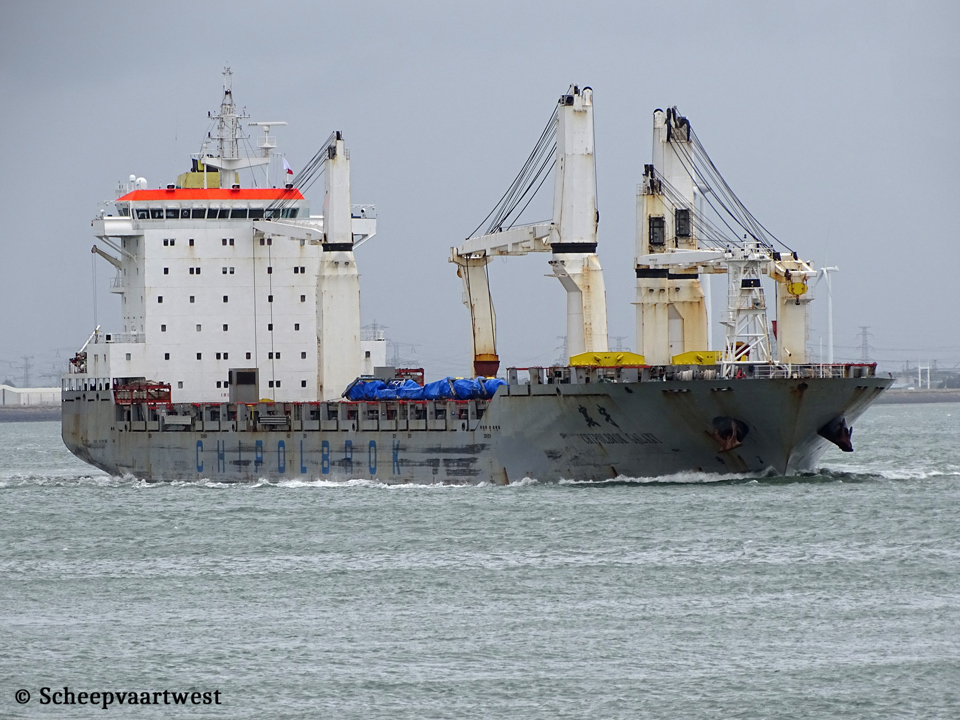

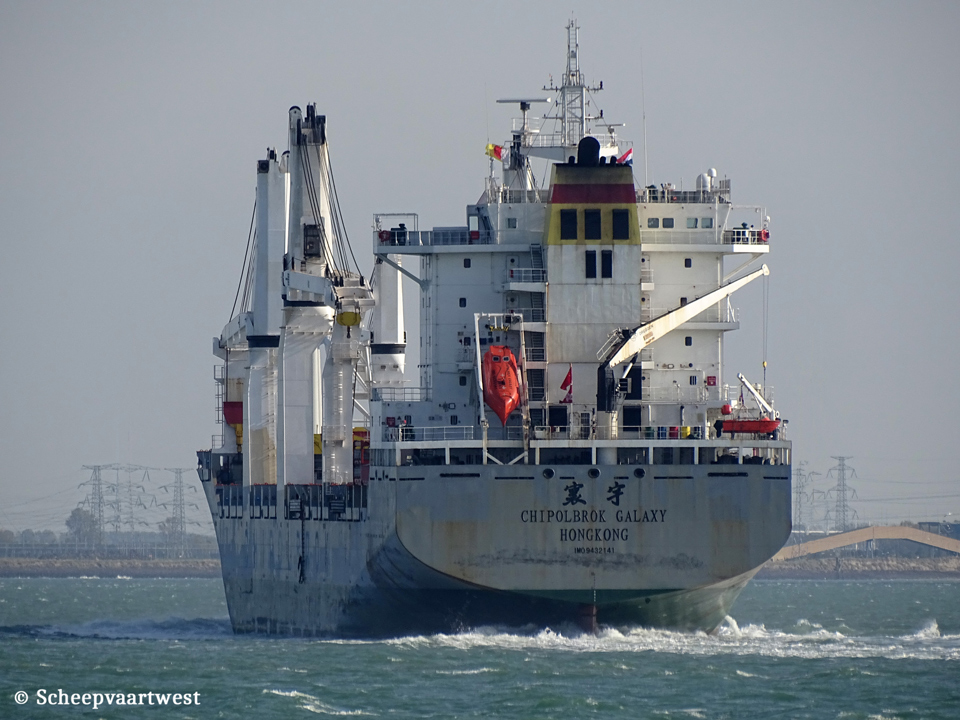

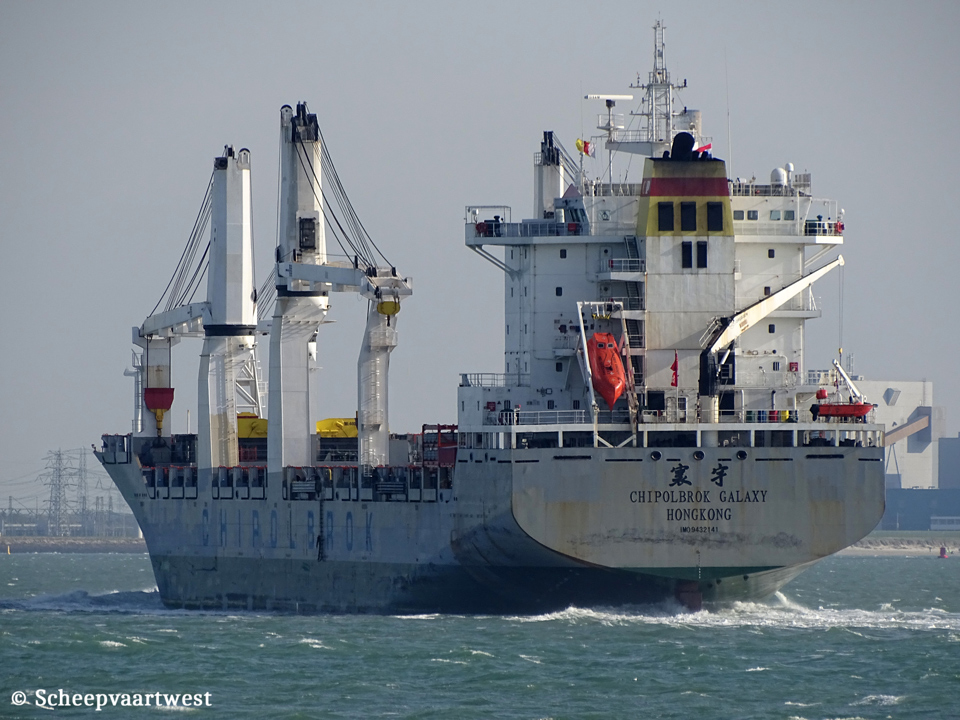

| Westerschelde 30/08/20 | Westerschelde 15/10/19 | Westerschelde 15/10/19 | ||
|
Name |
CHIPOLBROK GALAXY |
|
Chinese name |
寰宇 |
|
Type |
General dry cargo vessel - Strengthened for heavy cargoes |
|
IMO-number |
9432141 |
|
Call sign |
VRHR3 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
Previous flags |
10/2010 - 11/2010 Cyprus |
|
GT |
24.142 t |
|
DWT |
30.330t |
|
NT |
11.266 t |
|
Number of 20ft containers |
On deck: 1.108 In hold: 796 Total: 1.904 |
|
Reefer capacity |
20 |
|
Length |
199,80 m overall 189,00 m between perpendiculars |
|
Breadth |
27,80 m moulded |
|
Draught |
Summer: 10,30 m |
|
Keel to mast end |
51,10 m |
|
Forecastle |
44,50 m |
|
Deckhouse |
14,25 m |
|
Poop |
20,25 m |
|
Freeboard |
4.524 mm |
|
Depth |
15,50 m moulded |
|
Speed |
Max: 19,2 knots |
|
Built |
2010 |
|
Keel laid |
20/11/2009 |
|
Date of completion |
22/12/2010 |
|
Builder |
COSCO (Dalian) Shipyard Co.,Ltd. China |
|
Yard number |
CSGD 004 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
7 |
|
Number of decks |
1 |
|
Main engine |
1x QMD/Wärtsilä 7RT-flex60C - 2 stroke 7 cylinder 600 x 2.250 mm combustion engine 16.520 kW hp at 114,0 rpm Build: 12/04/2010 Builder: Qingdao Qiyao Wärtsilä MHI Linshan Marine Diesel Co.,Ltd., Qingdao - China |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Oil-fired boiler Mission OS 1600 Heating surface: 20,50 m² 1x Exhaust-gas boiler AV-4 Heating surface: 262,40 m² Builder: Zhake (Qingdao) Marine Boiler Co., Ltd. |
|
Generators |
3x Wärtsilä A6L20 main diesel generatorsets each 1.020 kW |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 212,5 kVA |
|
Bow thruster |
1x Wuhan-Kawasaki type KT-105B3 - 900 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain / Bale NO.1 Lower hold 1.602,53 / 1.599,33 m³ NO.1 Lower tweendeck 1.137,63 / 1.135,36 m³ NO.1 Upper tweendeck 2.644,72 / 2.639,43 m³ NO.2 Hold (P) 4.083,03 / 4.074,86 m³ NO.2 Hold (S) 4.083,03 / 4.074,86 m³ NO.3 Hold (P) 5.282,26 / 5.271,69 m³ NO.3 Hold (S) 5.282,26 / 5.271,69 m³ NO.4 Hold (P) 5.276,62 / 5.266,07 m³ NO.4 Hold (S) 5.276,62 / 5.266,07 m³ NO.5 Lower hold (P) 800,25 / 798,65 m³ NO.5 Lower hold (S) 809,22 / 807,60 m³ NO.5 Lower tweendeck (P) 829,20 / 827,54 m³ NO.5 Lower tweendeck (S) 839,37 / 837,69 m³ NO.5 Upper tweendeck (P) 1.190,72 / 1.188,34 m³ NO.5 Upper tweendeck (S) 1.193,79 / 1.191,40 m³ |
|
Hatchways |
9 2x 12,64 x 11,45 m 1x 18,96 x 19,17/12,95 m 2x 25,28 x 10,50 m 4x 31,60 x 10,50 m |
|
Tank capacities |
Ballast: 11.591 t Fuel: 2.741 t Diesel oil: 175,40 m³ Lub oil: 142,60 m³ Fresh water: 275,50 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,0 t 1x Provision crane - SWL 4,5 t |
|
Cargo gear |
2x Mac Gregor cranes - SWL 320 t each 2x Mac Gregor cranes - SWL 50 t each |
|
Crew size |
28 |
|
ISM & commercial manager |
Chinese Polish Joint Stock Shipping Company 26th-34th Floors, Gongshanglian Building, 55, Yan'an Donglu, Huangpu Qu Shanghai, 200002 China |
|
Registered owner |
Chipolbrok Cosmos Maritime Company Limited Care of Chinese-Polish Joint Stock Shipping Co. 26th-34th Floors, Gongshanglian Building, 55, Yan'an Donglu, Huangpu Qu Shanghai, 200002 China |
|
Latest data adjustment |
21 November 2021 |
