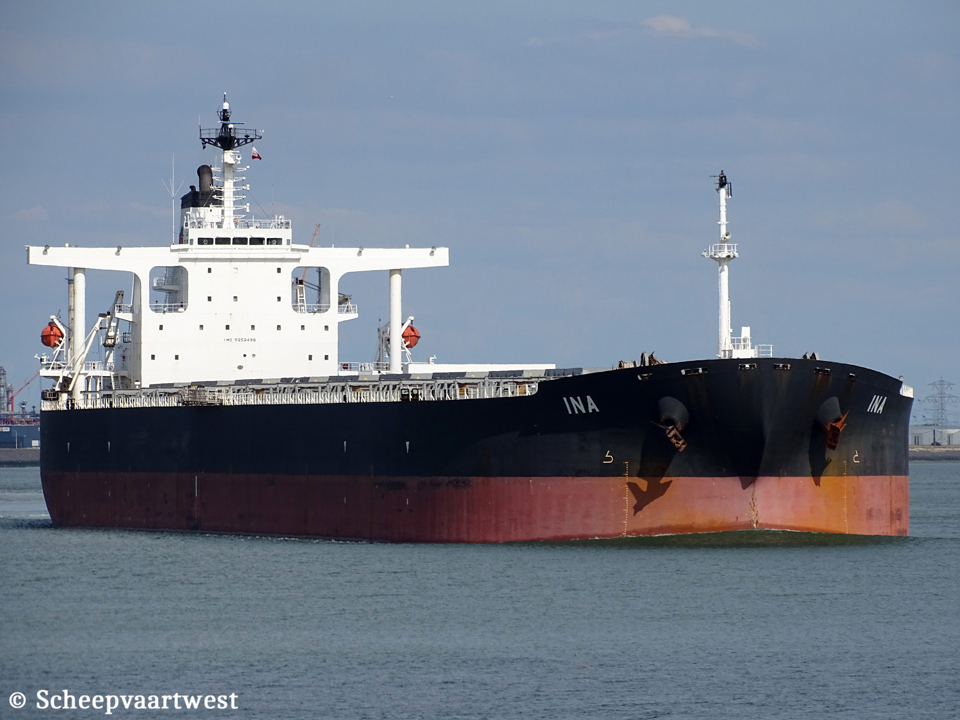

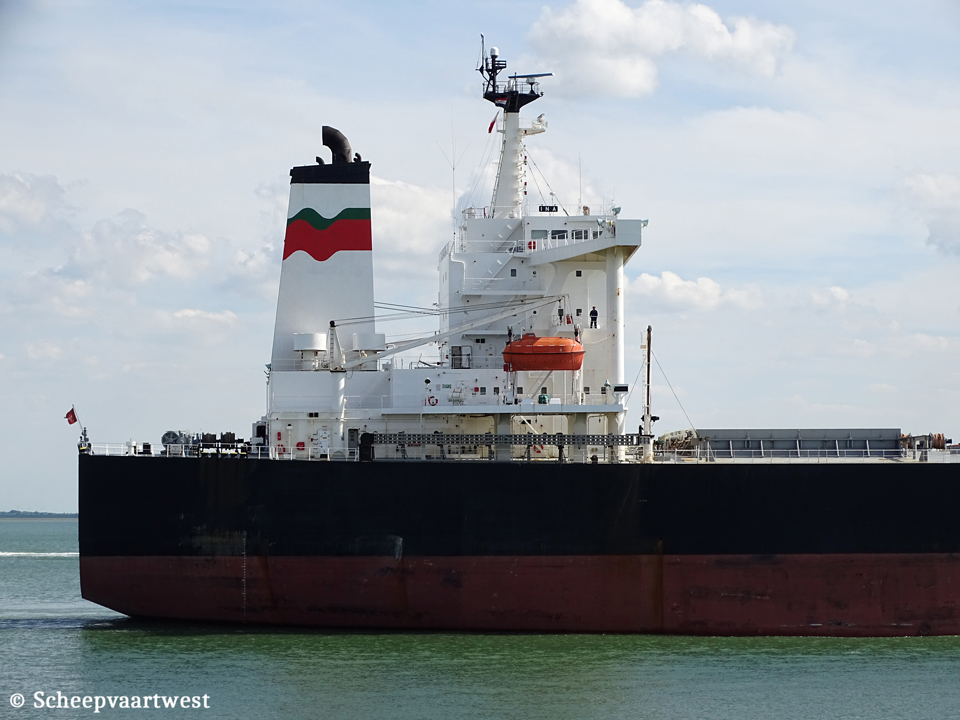

| Westerschelde 12 July 2020 |
 |
| Westerschelde 12/07/20 |
|
Name |
INA |
|
Type |
Bulk carrier |
|
IMO-number |
9252498 |
|
Call sign |
9HRS7 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
88.702 t |
|
DWT |
176.423 t |
|
NT |
58.998 t |
|
Displacement |
197.739 t |
|
Length |
289,05 m overall 280,75 m between perpendiculars |
|
Breadth |
45,04 m |
|
Draught |
Summer: 17,82 m |
|
Freeboard |
6.314 mm |
|
Depth |
24,10 m |
|
Speed |
14,5 knots |
|
Built |
2003 |
|
Keel laid |
25/06/2002 |
|
Launch date |
09/07/2003 |
|
Delivery date |
31/10/2003 |
|
Builder |
Japan Marine United Corporation Tsu Shipyard 1-3, Kumozu-Kokan-Cho Tsu City, 514-0398 Japan |
|
Yard number |
227 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Mitsui 6S70MC - 3 stroke 6 cylinder 700 x 2.674 mm combustion engine 16.860 kW / 22.923 hp at 91,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller - 4 blades Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Vertical composite boiler oil burning vertical cylindrical marine boiler - 6,9 MPa Manufacturer: Osaka Boiler Mfg Co.,Ltd. |
|
Generators |
3x Main diesel generatorsets each 560 kW Manufacturer: Taiyo Electric Mfg. Co., Ltd. |
|
Number of holds |
9 |
|
Cargo hold capacity |
Grain: 194.291 m³ |
|
Number of hatches |
9 |
|
Tank capacities |
Fresh water: 502 m³ Ballast: 29.988 m³ Diesel oil: 294 m³ Fuel oil: 4.991 m³ |
|
Lifting equipment |
1x Provision handling crane - SWL 1,5 t 1x Hose & Suez boat davit - SWL 4,0 t 1x Engine provision handling crane - SWL 5,0 t |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
Manager |
PortLine Transportes Maritimos Internacionais SA. Avenida Infante Dom Henrique 332-3 Lisboa Portugal |
|
Owner |
Silver Shadow Marine Ltd. |
|
Renamed |
03/2021 Lila Lisbon Liberia, Monrovia - Call sign: D5ZP6 Owner & manager: Orion Shipping & Trading, Monrovia - Liberia |
|
Latest data adjustment |
09 December 2021 |
