| Westerschelde 11 July 2020 |
|
Name |

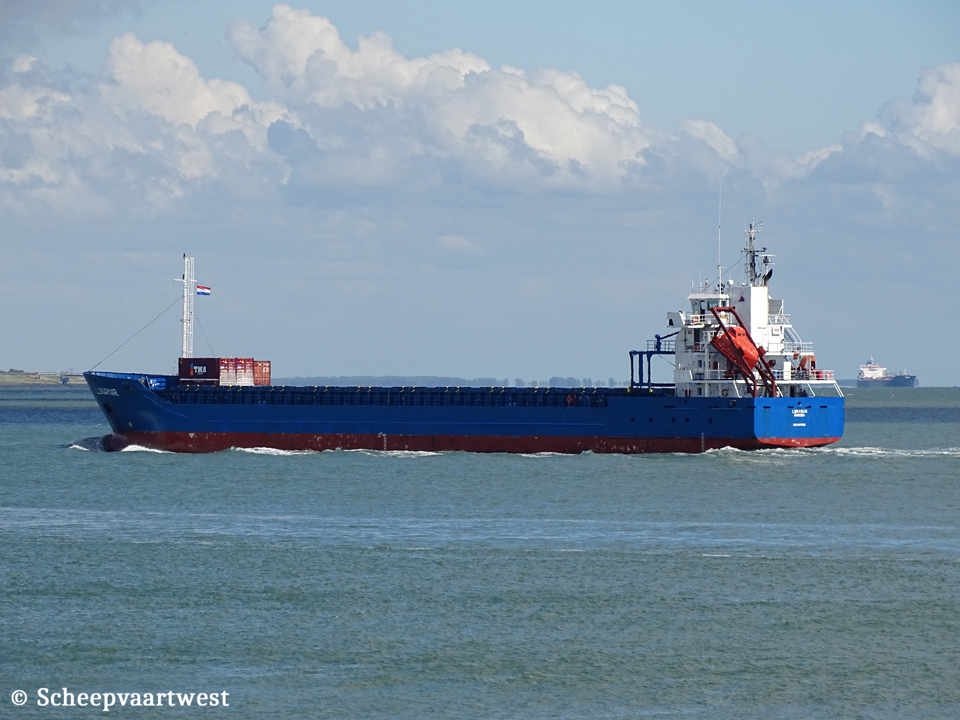

LUNAMAR |
|
Previous names |
2010 - 07/2010 Grona Ammersum 07/2010 - 10/2010 Emsriver 10/2010 - 11/2010 Grona Ammersum 11/2010 - 08/2012 Emsriver 08/2012 - 2016 Grona Aalsum 2016 - 2017 Auriga |
|
Type |
Multi-purpose dry cargo vessel - Equipped for carriage of containers - Strengthened for heavy cargo Singledecker |
|
IMO-number |
9551662 |
|
Call sign |
CQIK8 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2010 - 2017 Antigua & Barbuda; St. John’s - Call sign: V2FG8 |
|
GT |
3.500 t |
|
DWT |
Summer: 5.134,1 t |
|
NT |
1.382 t |
|
Number of 20ft containers |
In hold: 108 On deck: 80 Total: 188 |
|
Number of 40ft containers |
In hold: 84 - 20 TEU On deck: 36 + 8 TEU Total: 120 + 28 TEU |
|
Length |
99,48 m overall 92,49 m between perpendiculars |
|
Breadth |
13,55 m extreme 13,36 m moulded |
|
Draught |
Summer: 6,15 m |
|
Depth |
9,10 m |
|
Speed |
Service: 11,3 knots |
|
Built |
2010 |
|
Keel laid |
18/12/2008 |
|
Launch date |
28/07/2010 |
|
Date of completion |
26/11/2010 |
|
Builder |
Western Marine Shipyard Ltd. Chittagong Bangladesh |
|
Yard number |
628/01 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 6M25C - 4 stroke 6 cylinder 255 x 400 mm combustion engine 2.000 kW / 2.719 hp at 750 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 170 rpm Diameter: 2.950 mm |
|
Shaft generator |
Yes |
|
Generators |
2x Sisu 74CTA-4V main diesel generatorsets each 182 kW at 1.500 rpm |
|
Emergency generator |
1x SISU 49.548 diesel generatorset 74 kW at 1.500 rpm |
|
Bow thruster |
1x Veth Propulsion VT-240 - 280 kW |
|
Number of holds |
1 61,15 x 11,20 x 9,60 m |
|
Cargo hold capacity |
Grain/bale: 6.646 m³ / 234.629 ft³ |
|
Hold ventilation |
6 Air-changes |
|
Number of hatches |
1 61,80 x 11,50 x 9,60 m |
|
Floor space |
Under deck: 692 m³ / 7.448 ft² On deck: 713 m² / 7.674 ft² |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,35 t/m² |
|
Tank capacities |
HFO: 257,93 m³ Gas oil: 142,31 m³ Freshwater: 42,09 m³ Ballast water: 1.911,80 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
ISM & commercial manager |
Briese Dry Cargo Gmbh & Co KG Hafenstrasse 12 26789 Leer Germany |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "Auriga" Care of Briese Dry Cargo GmbH & Co KG Hafenstrasse 12 26789 Leer Germany |
|
Latest data adjustment |
09 December 2021 |
