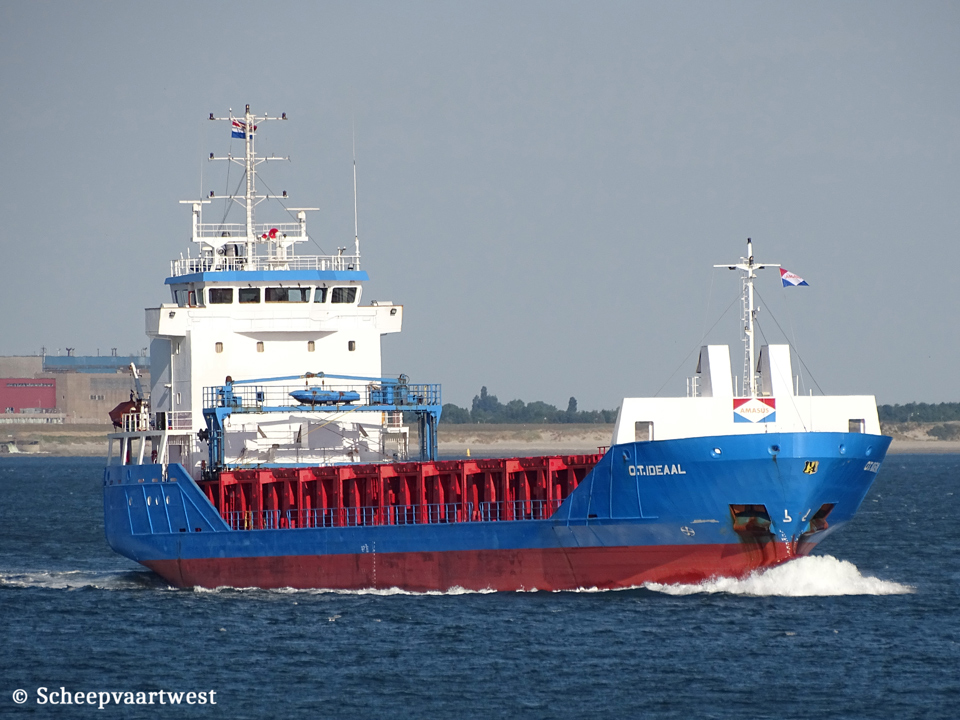

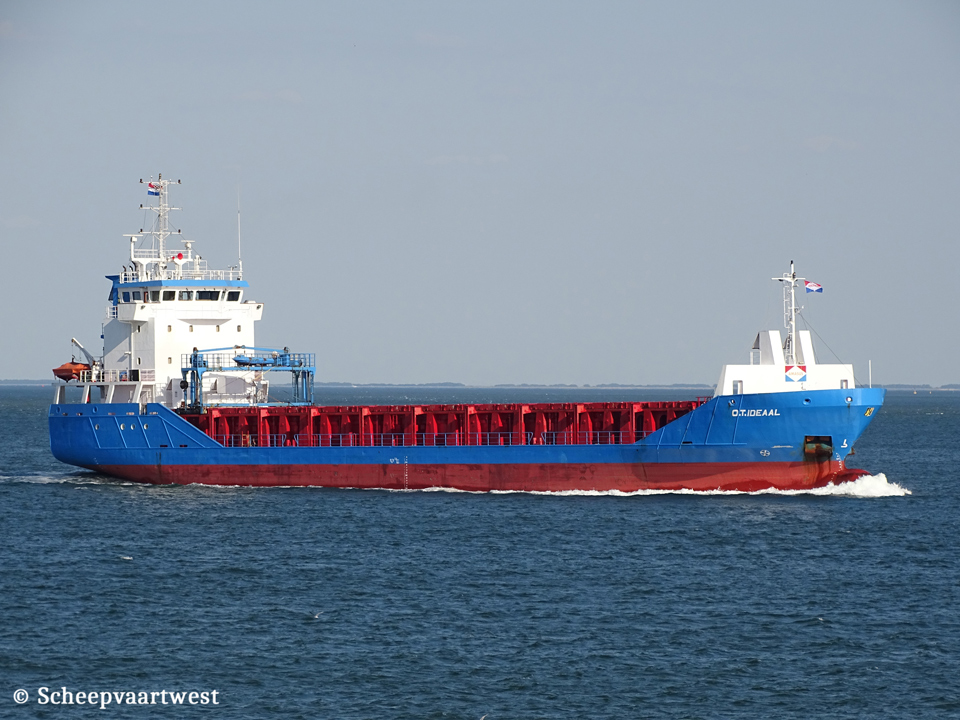

Westerschelde 30 May 2020 |
Westerschelde 30/05/20 |
Name |
O.T. IDEAAL |
Previous names |
01/2012 - 09/2013 Ideaal 09/2013 - 11/2015 Somers Isles |
Type |
Multi-purpose cargo carrier - Heavycargo - Container ship |
IMO-number |
9431604 |
Call sign |
PBHH |
Flag |
The Netherlands |
Port of registry |
Sneek |
GRT |
2.702 t |
DWT |
Summer: 3.300 t |
DWCC |
Summer: 3.200 t Winter: 3.100 t |
NRT |
1.286 t |
Number of 20ft containers |
300 |
Length |
89,98 m overall 84,98 m between perpendiculars |
Breadth |
13,75 m |
Draught |
5,20 m |
Air draft |
25,50 m |
Freeboard |
1.110 mm |
Depth |
6,25 m |
Speed |
13,0 knots |
Built |
2012 |
Launch date |
04/08/2009 |
Date of completion |
06/01/2012 |
Builder |
Hong Ha Shipbuilding One Member Limited Liability Company HaiPhong Vietnam |
Yard number |
HH-08 |
Hull material |
Steel |
Watertight compartments |
44 |
Continuous decks |
1 |
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm Build: 18/09/2008 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
Propellers |
1x Screw propeller controllable pitch - aft at 215 tpm |
Shaft generator |
1x 468 kW |
Generators |
1x Diesel generatorset 290 kVA - 232 kW - 340 hp |
Emergency generator |
1x Diesel generatorset 290 kVA - 232 kW - 340 hp |
Bow thruster |
1x 240 kW |
Number of hold |
1 61,80 x 10,80 x 7,92 m |
Cargo hold capacity |
Grain: 4.870 m³ / 178.000 ft³ |
Number of hatches |
1 61,80 x 10,80 m open top |
Hatch type |
Pontoon |
Tank capacities |
Fuel oil: 405,8 m³ |
Commercial manager |
Amasus Shipping B.V. Abel Tasmanplein 4 9934 GD Delfzijl The Netherlands |
ISM manager |
Shipowners Support BV Abel Tasmanplein 4 9934 GD Delfzijl The Netherlands |
Registered owner |
Scheepvaartonderneming Ideaal B.V. Sneek - The Netherlands Care of Amasus Shipping BV Abel Tasmanplein 4 9934 GD Delfzijl, The Netherlands. |
Previous names & owners |
01/2012 - 09/2013 Ideaal - Ideaal C.V., Sneek, Friesland - The Netherlands 09/2013 - 11/2015 Somers Isles - Ideaal C.V., Sneek, Friesland - The Netherlands |
Latest data adjustment |
21 December 2021 |
