Name |

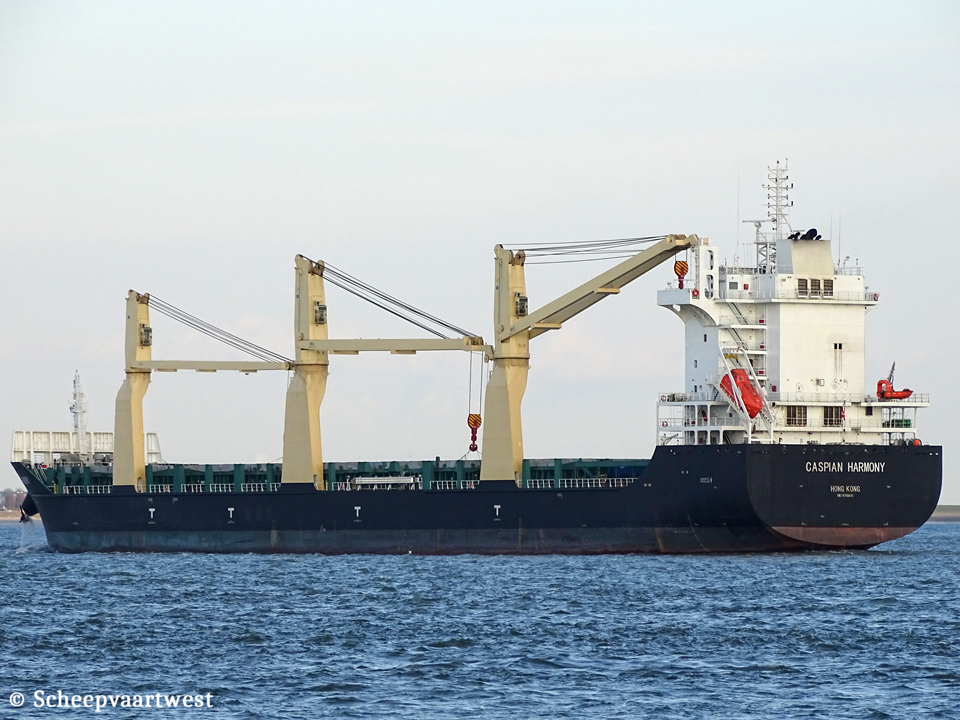

CASPIAN HARMONY |
|
Type |
Multi-purpose dry carrier - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9766645 |
|
Call sign |
VRPC8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
22.362 t |
|
DWT |
31.671,29 t |
|
NT |
10.179 t |
|
Displacement |
Summer: 41.981 t |
|
Lightship |
10.183,26 t |
|
Number of 20ft containers |
1.640 |
|
Length |
166,10 m overall 158,32 m between perpendiculars |
|
Breadth |
27,75 m extreme 27,41 m moulded |
|
Draught |
Summer: 11,00 m |
|
Keel to mast end |
47,45 m |
|
Freeboard |
Summer: 4.522 mm |
|
Depth |
15,50 m |
|
Speed |
14,0 knots |
|
Built |
2016 |
|
Keel laid |
12/12/2014 |
|
Launch date |
27/07/2015 |
|
Date of completion |
15/01/2016 |
|
Builder |
Huanghai Shipbuilding Co. Ltd. |
|
Yard number |
HCY - 149 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&X 6S46ME-B8.3 - 2 stroke 6 cylinder 400 x 1.932 mm combustion engine 6.480 kW at 110,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x Daihatsu 6DK-20e/ZFC main diesel generatorsets |
|
Emergency generator |
1x Doosan AD136TI diesel generatorset |
|
Number of holds |
2 |
|
Cargo hold capacity |
Bale & grain: 39.102 t |
|
Tank capacities |
Fresh water: 441,94 m³ HFO: 1.546,91 m³ MGO: 183,39 m³ Ballast: 12.758,38 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Cargo gear |
2x Deck cranes - SWL 250 t each 1x Deck crane - SWL 100 t |
|
Crew |
20 |
|
ISM & commercial manager |
Istanbul Denizcilik Ve Deniz Tasimaciligi A.S. Apartmani 23/5, C.E.M Is Merkezi, Buyukdere Caddesi Merkez Mah 34381 Istanbul Turkey |
|
Registered owner |
Fortune Passage Ltd. Care of Istanbul Denizcilik ve Deniz Tasimaciligi AS, Apartmani 23/5, C.E.M Is Merkezi, Buyukdere Caddesi Merkez Mah 34381 Istanbul Turkey |
|
Latest data adjustment |
19 January 2022 |
