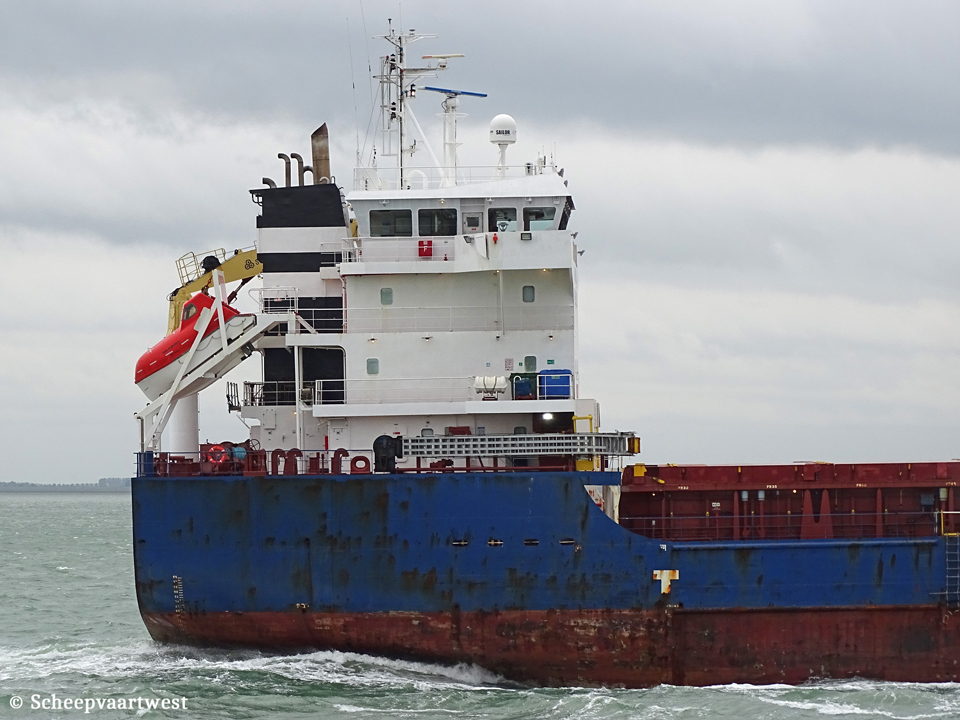

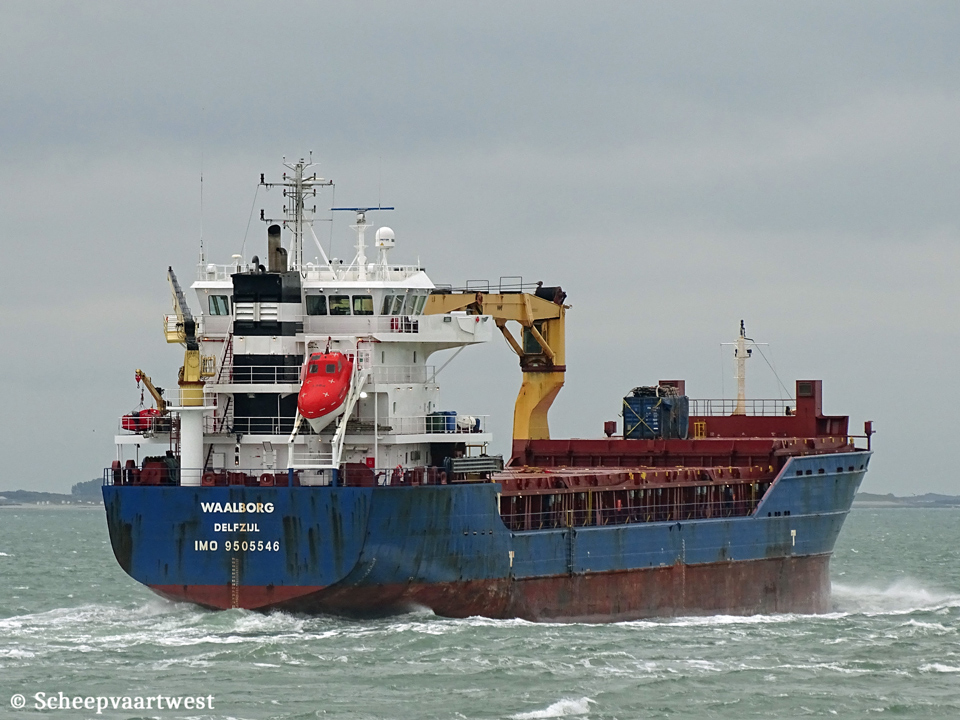

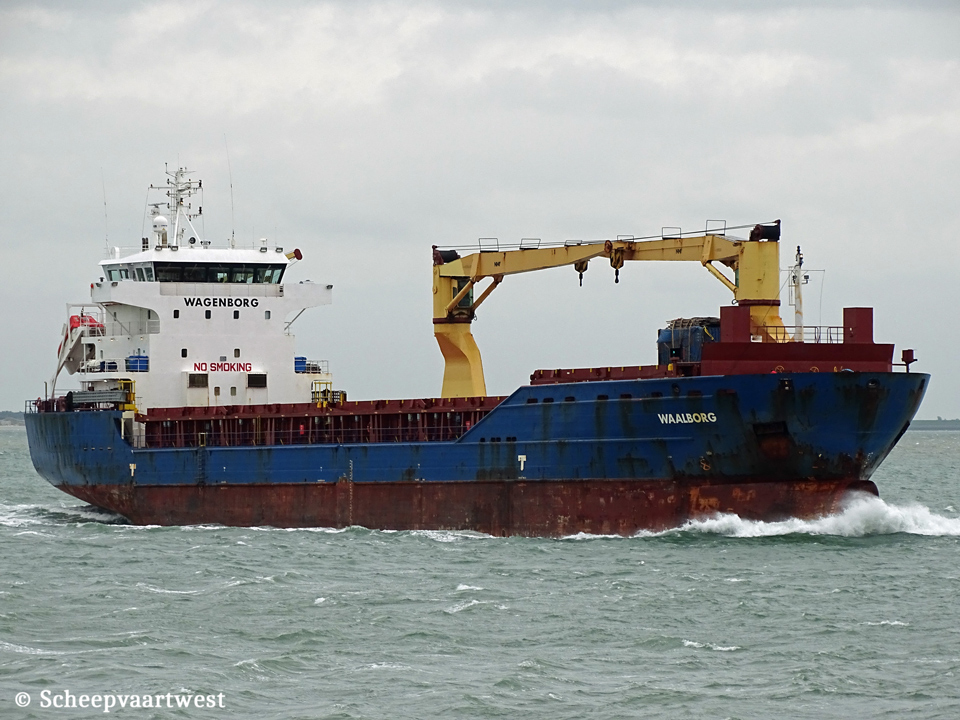

| Westerschelde 11 October 2019 |
 |
 |
|
| Westerschelde 11/10/19 | Westerschelde 11/10/19 |
|
Name |
WAALBORG |
|
Previous names |
10/2010 - 02/2014 Baltic Trader 02/2014 - 02/2017 NBP Trader |
|
Type |
General dry cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9505546 |
|
Call sign |
PBET |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
2010 - 2017 Antigua & Barbuda, St. John’s - Call sign: V2FC7 |
|
GT |
6.668 t |
|
DWT |
Summer: 9.254 t |
|
DWCC |
Summer: 9.050 t |
|
NT |
3.625 t |
|
Number of 20ft containers |
132 |
|
Length |
106,99 m overall 103,29 m between perpendiculars |
|
Breadth |
18,20 m |
|
Draught |
Summer: 8,23 m |
|
Air draft |
31,60 m in ballast |
|
Freeboard |
2.285 mm |
|
Depth |
10,50 m moulded |
|
Speed |
Service: 12,0 knots Max: 15,1 knots |
|
Built |
2010 |
|
Keel laid |
24/12/2008 |
|
Launch date |
18/01/2010 |
|
Delivery date |
13/10/2010 |
|
Builder |
Nanjing Huatai Shipyard Co., Ltd. Nanjing China |
|
Yard number |
HT07-4-01 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 hp at 600 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 148,0 rpm |
|
Boilers |
1x CHR Alfa Laval 52,60 m² - 10,0 bar 1x CHO Alfa Laval 16,00 m² - 13,0 bar |
|
Generators |
2x Main diesel generatorsets each 475 kVA - 380 kW - 602 hp |
|
Emergency generator |
1x Diesel generatorset 100 kVA - 80 kW - 122 hp |
|
Bow thruster |
1x 450 kW |
|
Number of holds |
3 Hold 1: 16,10 x 15,20 x 13,20 m Hold 2: 25,90 x 15,20 x 11,60 m hold 3: 25,90 x 15,20 x 11,60 m |
|
Cargo hold capacity |
Gran/Bale: 12.121,1 m³ / 427.944 ft³ |
|
Hold ventilation |
Hold 1: 2 fans, cap. abt. 15.000 m³/h, air changes abt. 10,21 times/h Hold 2: 2 fans, cap. abt. 25.000 m³/h, air changes abt. 10,94 times/h Hold 3: 2 fans, cap. abt. 25.000 m³/h, air changes abt. 10,94 times/h |
|
Number of hatches |
3 Hatch 1: 17,10 x 16,20 m Hatch 2: 27,90 x 16,20 m Hatch 3: 27,90 x 16,20 m |
|
Hatch type |
Pontoons |
|
Max permitted loads |
Tanktop: 14,0 t/m² |
|
Tank capacities |
HFO: 575 m³ MGO: 108 m³ Water ballast: 3.200 m³ Fresh water: 60 m³ |
|
Cargo gear |
2x NMF deck cranes - SWL 60,0 t each located portside |
|
Commerical manager |
Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
ISM manager |
Kustvaart Harlingen BV Korte Lijnbaan 13B 8861 NS Harlingen The Netherlands |
|
Previous managers |
10/2010 - 02/2014 W. Bockstiegel Reederei GmbH & Co. K.G., Emden - Germany 02/2014 - 02/2017 Liberty Blue Shipmanagement GmbH & Co. KG, Leer - Germany |
|
Registered owner |
Waalborg BV Care of Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previous names & owners |
10/2010 - 02/2014 Baltic Trader - W. Bockstiegel Reederei GmbH & Co. K.G., Emden - Germany 02/2014 - 02/2017 BNP Trader - NBP Trader UG |
|
Latest data adjustment |
21 January 2022 |
