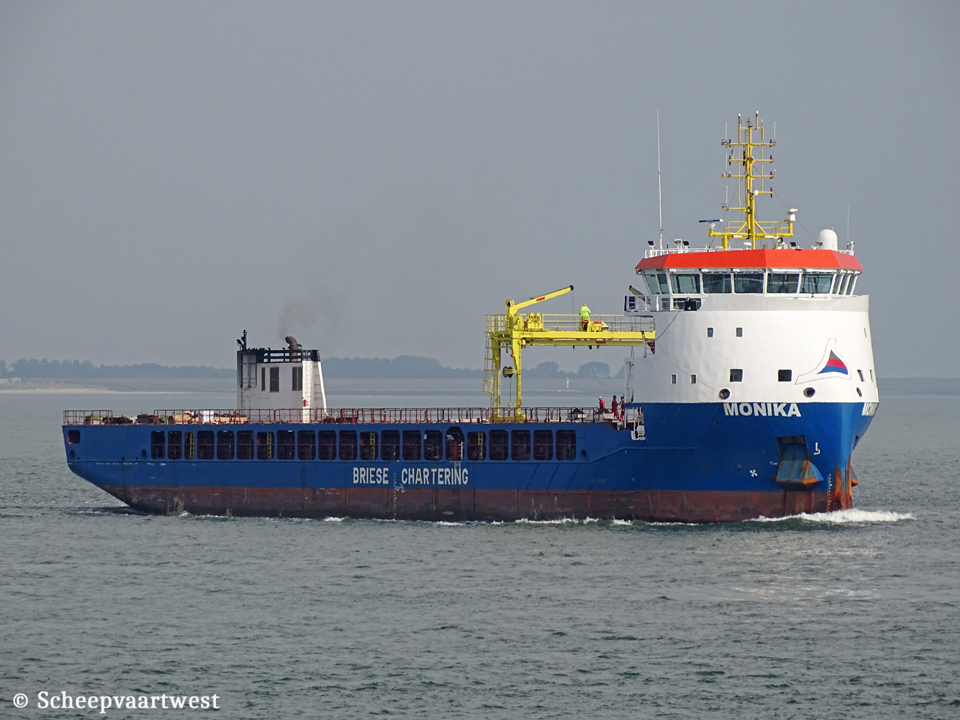

| Westerschelde 15 August 2020 |
|
Name |
MONIKA |
|
Previous names |
02/2017 - 04/2018 Porthos |
|
Type |
Multi-purpose carrier - General cargo ship - Heavycargo - Occasional dry bulk cargo - Equipped for carriage of containers Tweendecker / Open Top |
|
IMO-number |
9815317 |
|
Call sign |
PBTN |
|
Flag |
The Netherlands |
|
Port of registry |
Scheemda |
|
GT |
3.415 t |
|
DWT |
4.938 t |
|
NT |
1.768 t |
|
Number of 20ft containers |
In hold: 99 On deck: 132 Total: 321 |
|
Number of 40ft containers |
In hold: 42 + 20 TEU On deck: 60 + 12 TEU Total: 102 - 27 TEU |
|
Length |
89,90 m overall 84,99 m between perpendiculars |
|
Breadth |
14,80 m |
|
Draught |
Summer: 6,65 m |
|
Air draft |
23,60 m |
|
Freeboard |
1.809 mm |
|
Depth |
8,45 m moulded |
|
Speed |
Service: 10,5 knots Max: 14,8 knots |
|
Built |
2018 |
|
Launch date |
11/10/2017 |
|
Date of completion |
06/02/2018 |
|
Builder |
Zhejiang Zengzhou Shipbuilding Co., Ltd. Zengzhou China |
|
Yard number |
ZZ071 |
|
Hull material |
Steel |
|
Movable bulkheads |
3x in 10 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.600 kW / 2.174 hp 1.000 rpm Manufacturer: MaK Caterpillar Motoren GmbH, Anqing - China |
|
Propellers |
1x Controllable pitch propeller - aft at 1.000 rpm |
|
Shaft generator |
Yes |
|
Generators |
2x Sisu main diesel generatorsets each 167 kVA - 134 kW - 198 hp |
|
Emergency generator |
1x Diesel generatorset 125 kVA - 100 kW - 158 hp |
|
Bow thruster |
Yes |
|
Number of holds |
1 |
|
Cargo hold capacity |
6.405 m³ / 226.190 ft³ |
|
Number of hatches |
1 |
|
Hatch cover type |
Pontoon type |
|
Tweendeck |
2 Heights |
|
Floor space |
Under deck: 1.404 m² / 15.133 ft² On deck: 1.106 m² / 11.905 ft² |
|
Max permitted loads |
Tanktop: 15,0 - 30,0 t/m² Tweendeck: 3,50 t/m² On deck: 2,50 t/m² |
|
Tank capacities |
Fuel: 150 m³ MGO: 120 m³ Ballast: 1.900 m³ Fresh water: 52 m³ |
|
Commerical manager |
Briese Dry Cargo GmbH & Co KG Hafenstrasse 12 26789 Leer Germany |
|
ISM manager |
Briese Dry Cargo Gmbh & Co., KG Torenstraat 14 9679 BP Scheemda The Netherlands |
|
Registered owner |
Briese Schiffahrts GmbH & Co.KG MS ''Aries Care of Briese Shipping BV Torenstraat 14 9679 BP Scheemda The Netherlands |
|
Latest data adjustment |
15 February 2022 |
