| Westerschelde 17 October 2019 |
|
Name |

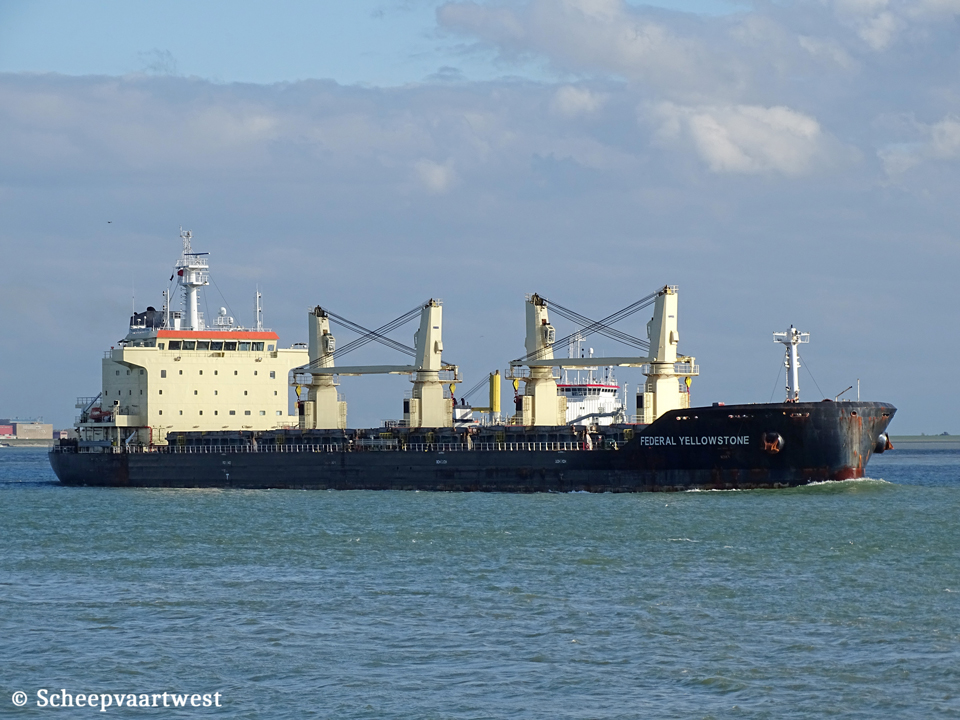

FEDERAL YELLOWSTONE |
|
Previous names |
2013- 2018 Lowlands Saguenay |
|
Type |
Bulk carrier - Handysize |
|
IMO-number |
9609653 |
|
Call sign |
V7ZC6 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2013 - 2017 Malta, Valletta- Call sign: 9HA3234 2017 - 2017 Republic of Singapore, Singapore City - Call sign: 9V5330 |
|
GRT |
24.177 t |
|
DWT |
Summer: 37.153 t Winter: 36.021 t |
|
NRT |
12.793 t Suez: 22.441 t Panama: 20.168 t |
|
Length |
179,98 m overall 176,71 m between perpendiculars |
|
Breadth |
30,05 m extreme |
|
Draught |
Summer: 10,65 m Winter: 10,42 m |
|
Depth |
14,9 m in ballast 13,8 knots laden |
|
Speed |
14,0 knots |
|
Built |
2013 |
|
Keel laid |
20/10/2012 |
|
Launch date |
15/01/2013 |
|
Date of completion |
08/06/2013 |
|
Builder |
Zhejiang East Coast Shipbuilding Co., Ltd. Zhoushan China |
|
Yard number |
H2190 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 5S50ME-B9.2. TII - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.350 kW / 8.633 hp at 99,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite 2x Auxiliary boiler, exhaust gas heated |
|
Generators |
3x MAN 6L23/30H main diesel generatorsets |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M) diesel generatorset |
|
Number of holds |
5 Hold 1: 27,50 x 26,00 / 26,00 m Hold 2: 26,30 x 26,60 / 26,60 m Hold 3: 26,20 x 26,60 / 26,60 m Hold 4: 26,20 x 26,60 / 26,60 m Hold 5: 28,30 x 26,60 / 26,60 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 7.962 m³ / 7.832 m³ Hold 2: 9.790 m³ / 9.525 m³ Hold 3: 9.783 m³ / 9.517 m³ Hold 4: 9.783 m³ / 9.517 m³ Hold 5: 9.428 m³ / 9.276 m³ Total: 46.746 m³ / 45.667 m³ |
|
Hold ventilation |
Mechanical |
|
Number of hatches |
5 Hatch 1: 16,00 x 18,70 m Hatch 2: 19,20 x 20,30 m Hatch 3: 19,20 x 20,30 m Hatch 4: 19,20 x 20,30 m Hatch 5: 19,20 x 20,30 m |
|
Hatch cover type |
Steel Folding |
|
Max permitted loads |
Tanktop: Hold 1: 23,5 t/m² Hold 2: 23,5 t/m² Hold 3: 23,5 t/m² Hold 4: 23,5 t/m² Hold 5: 23,5 t/m² |
|
Tank capacities |
IFO: 1.209 m³ MDO: 712 m³ |
|
Anchor equipment |
Length: 631,30 m Diameter: 68 mm |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Commerical manager |
Fednav Limited 1000 de La Gauchetière Street West, Suite 3400, Montreal, Quebec H3B 4W5 Canada |
|
ISM manager |
Anglo-Eastern Ship Management Ltd. 17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong China |
|
Registered owner |
Federal Cornwallis Ltd. Care of Fednav Ltd , Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Previous names & owners |
2013- 2018 Lowlands Saguenay - Cobelfret NV, Antwerpen - Belgium |
|
Latest data adjustment |
24 March 2022 |
