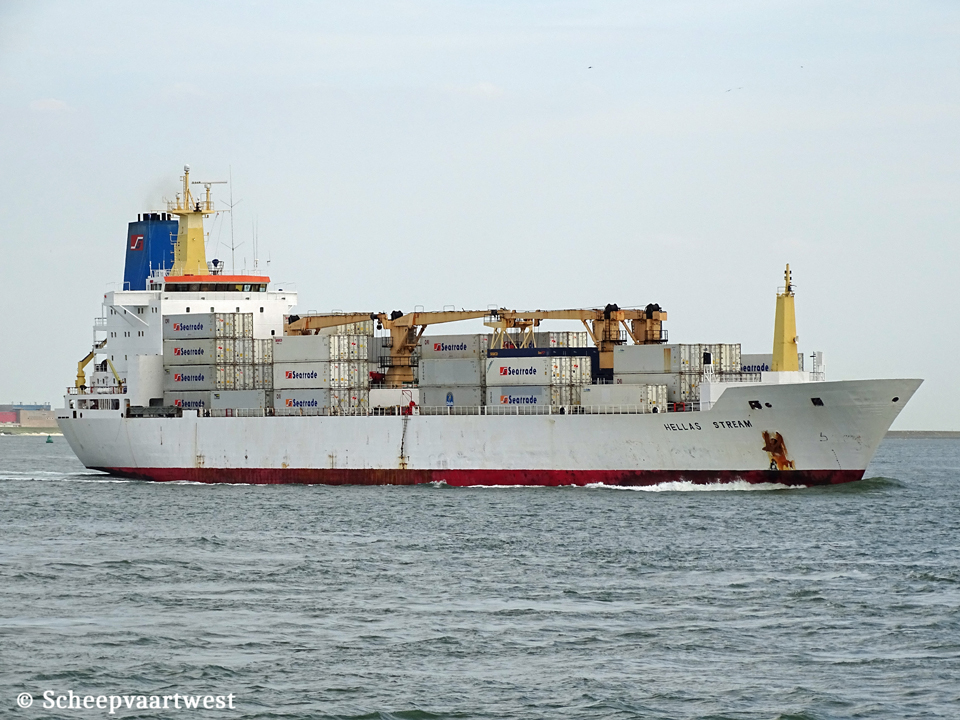

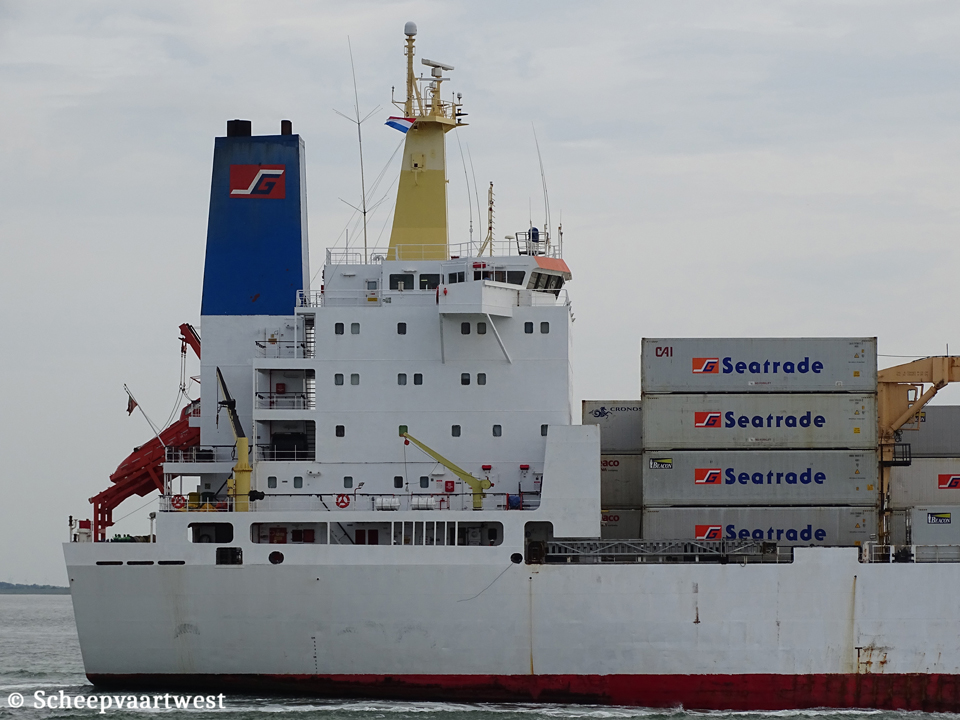

| Westerschelde 23 July 2020 |
 |
| Westerschelde 23/07/20 |
|
Name |
HELLAS STREAM |
|
Previous names |
1991 - 07/2014 Chiquita Deutschland 07/2014 - 2019 Hellas Reefer |
|
Type |
General and refrigerated cargo vessel |
|
IMO-number |
9015187 |
|
Call sign |
C6KD8 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
13.049 t registered |
|
DWT |
13.930 t |
|
NT |
5.353 t registered Panama: 10.877 t Suez: 10.958,59 t |
|
Number of 20ft containers |
439 |
|
Reefer capacity |
147 |
|
Length |
158,13 m overall 145,00 m between perpendiculars |
|
Breadth |
24,40 m moulded |
|
Draught |
Summer: 10,02 m Winter: 9,81 m |
|
Keel to mast end |
45,58 m |
|
Freeboard |
2.807 mm |
|
Depth |
15,70 m moulded |
|
Speed |
20,0 knots |
|
Built |
1991 |
|
Keel laid |
10/02/1991 |
|
Launch date |
03/05/1991 |
|
Date of completion |
12/09/1991 |
|
Builder |
Danyard A/S Frederikshavn Denmark |
|
Yard number |
706 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 18 Oil tight: 9 |
|
Main engine |
1x Kawasaki/MAN-B&W 8S60MC - 2 stroke 8 cylinder 600 x 2.292 mm combustion engine 14.571 kW / 19.810 bhp at 102,0 rpm Manufacture: Kawasaki Heavy Industries, Kobe - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 102,0 rpm Material: Bronze |
|
Boilers |
1x CHO Aalborg 28,00 m² - 10,0 bar 1x CHR Aalborg 980,00 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 2.012 kVA - 1.610 kW - 2.174 hp 2x Main diesel generatorset each 1.250 kVA - 1.000 kW - 1.359 hp 1x Leroy-Somer LSA 54 M9 / 10p main generator - 1.609 kW |
|
Emergency generator |
1x Diesel generatorset 195 kVA - 156 kW - 235 hp |
|
Bow thruster |
1.000 kW |
|
Number of holds |
4 |
|
Cargo hold capacity |
Hold 1: 93.170 ft³ Hold 2: 176.198 ft³ Hold 3: 187.421 ft³ Hold 4: 188.797 ft³ Total: 645.586 ft³ |
|
Number of hatches |
4 |
|
Compartments |
18 |
|
Pallets |
8.611 |
|
Hold surface |
Hold 1: 965 m² Hold 2: 2.260 m² Hold 3: 2.260 m² Hold 4: 1/266 m² Total: 7.565 m² |
|
Number of tanks |
Fuel oil: 12 Ballast: 11 Lubricating oil: 8 Fresh water: 5 Diesel oil: 4 Slop: 2 Sludge: 2 Thermal oil: 1 Chain: 1 Waste water: 1 |
|
Tank capacities |
Freshwater: 352 m³ Fuel oil: 2.083 m³ Tank ballast: 2.598 m³ |
|
Cargo gear |
2x Cranes - SWL 36,0 t each 1x Crane - SWL 20,0 t |
|
ISM & commercial manager |
Seatrade Groningen BV Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Registered owner |
Hellas Stream Shipping Company Ltd. Care of Seatrade Groningen BV Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Latest data adjustment |
17 April 2022 |
