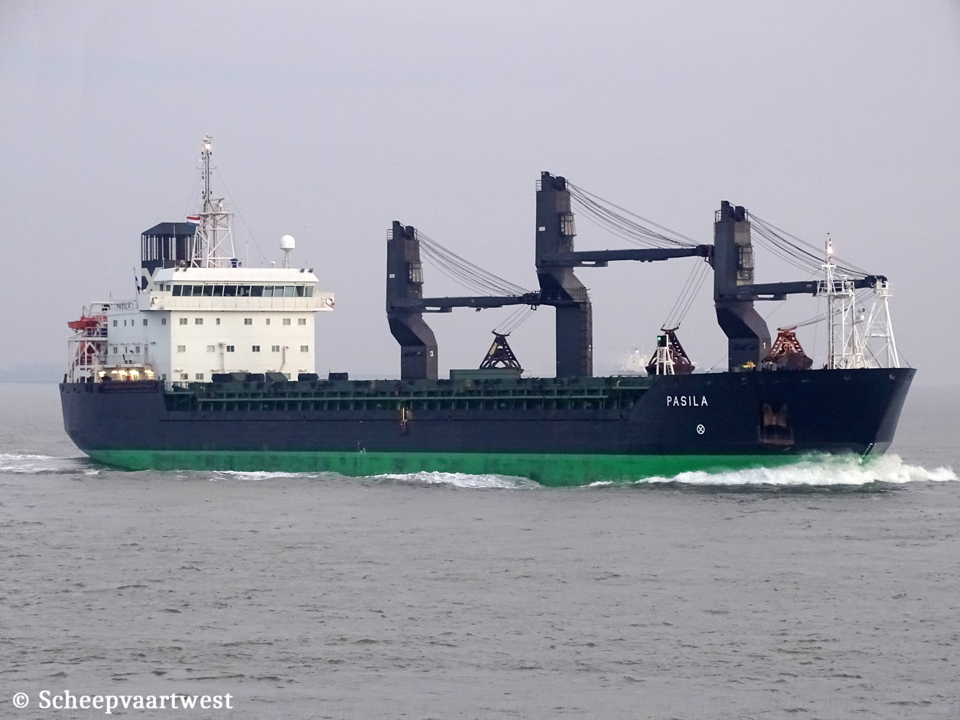

| Westerschelde 25 November 2020 |
|
Name |
PASILA |
|
Type |
Geared grab fitted general dry cargo vessel - Strengthened for heavy cargoes |
|
IMO-number |
9113018 |
|
Call sign |
OJGT |
|
Flag |
Finland |
|
Port of registry |
Helsinki |
|
GT |
10.098 t |
|
DWT |
13.367 t |
|
NT |
4.642 t |
|
Length |
137,15 m overall 129,00 m between perpendiculars |
|
Breadth |
21,60 m moulded |
|
Draught |
Summer: 8,19 m |
|
Keel to mast end |
42,00 m |
|
Depth |
11,00 m moulded |
|
Speed |
13,5 knots |
|
Built |
1995 |
|
Keel laid |
18/04/1995 |
|
Launch date |
25/08/1995 |
|
Date of completion |
22/12/1995 |
|
Builder |
Finnyards Oy Rauma Finland |
|
Yard number |
409 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8R46 - 4 stroke single acting 8 cylinder combustion engine 6.250 kW / 8.500 bhp at 450 rpm Builder: Wärtsilä Diesel Oy, Vaasa - Finland |
|
Propellers |
1 |
|
Generators |
3x Main diesel generatorsets each 660 kW |
|
Bow thruster |
1x 600 kW |
|
Number of holds |
2x Double skin cargo holds Hold 1: 40,00 x 17,60 x 12,20 m Hold 2: 39,20 x 17,60 x 12,20 m |
|
Cargo hold capacity |
Hold 1: 8.458 m³ / 298.736 ft³ Hold 2: 8.328 m³ / 294.145 ft³ Total: 16.786 m³ / 592/881 ft³ |
|
Number of hatches |
2 |
|
Hatch type |
Electro hydraulic hatches folding type |
|
Max permitted loads |
Tanktop: 20,3 t/m² Deck load: 1,75 t/m² |
|
Cargo gear |
3x Electro-hydraulic cranes: SWL 30,0 t hook SWL 25,0 t with 12,5 m³ grab Outreach: 24,00 m |
|
Manager |
ESL Shipping Ltd. Lintulahdenkuja 10 FI-00500 Helsinki Finland |
|
Registered owner |
ESL Shipping Ltd. Lintulahdenkuja 10 FI-00500 Helsinki Finland |
|
Latest data adjustment |
09 May 2022 |
