| Gent, Belgium 23 May 2022 |
|
Name |

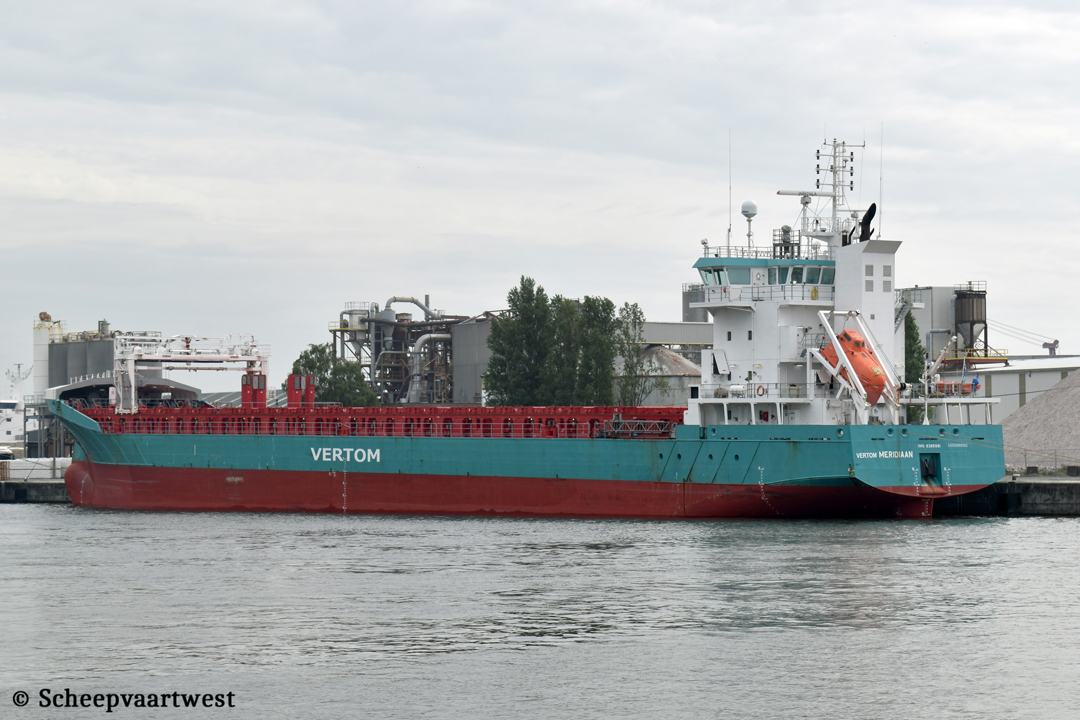

VERTOM MERIDIAAN |
|
Previous names |
2010 - 2022 Meridiaan |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9385881 |
|
Call sign |
Rhoon |
|
Flag |
The Netherlands |
|
Port of registry |
PCBO |
|
Previous flags |
2010 - 2022 The Netherlands, Terneuzen - Call sign: PCBO 2022 - 2023 G.D. Luxembourg, Luxembourg City - Call sign: LXTS |
|
GT |
5.887 t |
|
DWT |
8.044,9 t |
|
DWCC |
7.700 t |
|
NT |
2.258 t |
|
Number of 20ft containers |
In hold: 240 On deck: 150 Total: 390 |
|
Number of 40ft containers |
In hold: 100 On deck: 60 Total: 160 |
|
Length |
128,44 m overall 123,00 m between perpendiculars |
|
Breadth |
15,97 m extreme 15,58 m moulded |
|
Draught |
Summer: 6,80 m |
|
Air draft |
25,00 m |
|
Depth |
9,90 m moulded |
|
Speed |
14,7 knots |
|
Built |
2010 |
|
Keel laid |
14/11/2007 |
|
Launch date |
19/02/2009 |
|
Date of completion |
05/02/2010 |
|
Builder |
Korabostroitelnitza Ruse AD Rose Bulgaria |
|
Yard number |
820 |
|
Hull material |
Steel |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 3.000 kW / 4.045 bhp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Generators |
2x MAN D2876LE301 main diesel generatorsets |
|
Emergency generator |
1x MAN D0836LE201 diesel generatorset |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2x Box shaped Hold 1: 25,20 x 12,70 x 10,53 m Hold 2: 61,60 x 12,70 x 10,53 m |
|
Hold capacity |
Grain / Bale: 10.850 m³ / 387.500 ft³ |
|
Timber capacity |
10.500 m³ |
|
Hold ventilation |
6x Times/hr |
|
Number of hatches |
2 Hatch 1: 25,20 X 12,75 m Hatch 2: 61,80 X 12,75 m |
|
Max permitted loaded |
Tanktop: 15,0 t/m² On Hatches: 3,4 t/m² |
|
Tank capacities |
Fuel: 470 m³ MGO: 58 m³ Ballast water: 4.150 m³ Fresh water: 42 m³ Lub oil: 15 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
ISM & commercial manager |
Vertom Bereederungs GmbH & Co. KG Borgwardring 80 26802 Moormerland Germany |
|
Previous managers |
03/2010 - 02/2001 Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., Delfzijl, - The Netherlands 02/2001 - 10/2014 Q Shipping B.V., Ridderkerk - The Netherlands 10/2014 - 10/2021 Vertom Scheepvaart- en Handelmaatschappij B.V., Rotterdam - The Netherlands 10/2021 - 02/2022 Vertom Shipping & Trading B.V., Rhoon - The Netherlands |
|
Registered owner |
Vertom Meridiaan B.V. Oever 7 3161 GR Rhoon The Netherlands |
|
Previous names & owners |
03/2010 - 02/2022 Meridiaan - Ancor Shipping B.V., Terneuzen - The Netherlands |
|
Latest data adjustment |
16 January 2024 |
