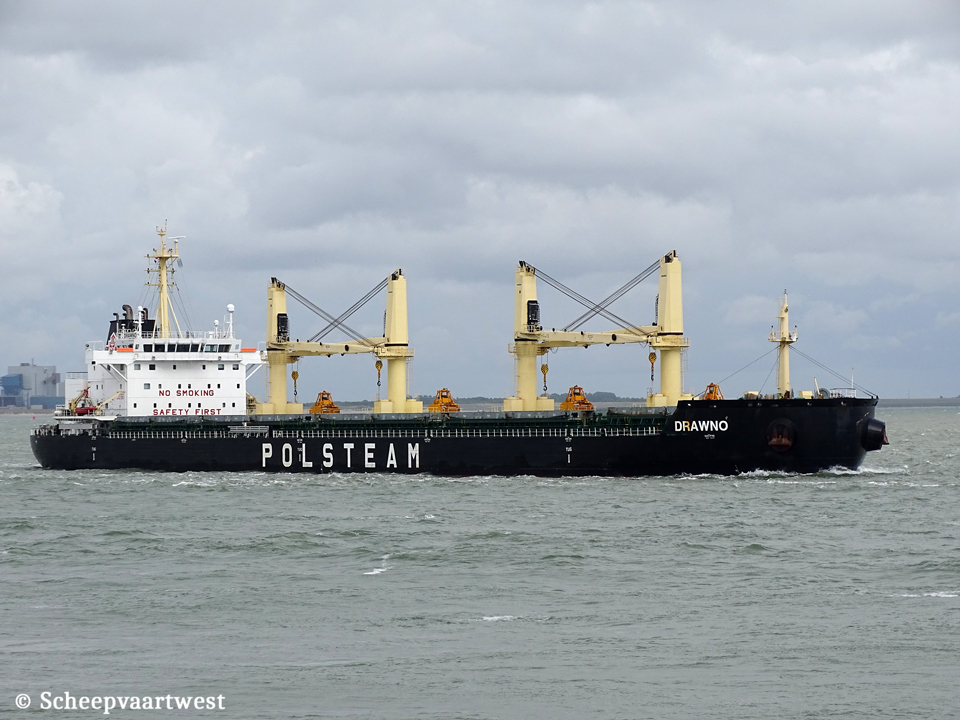

Drawno IMO 9727508 01
Westerschelde 04 June 2020

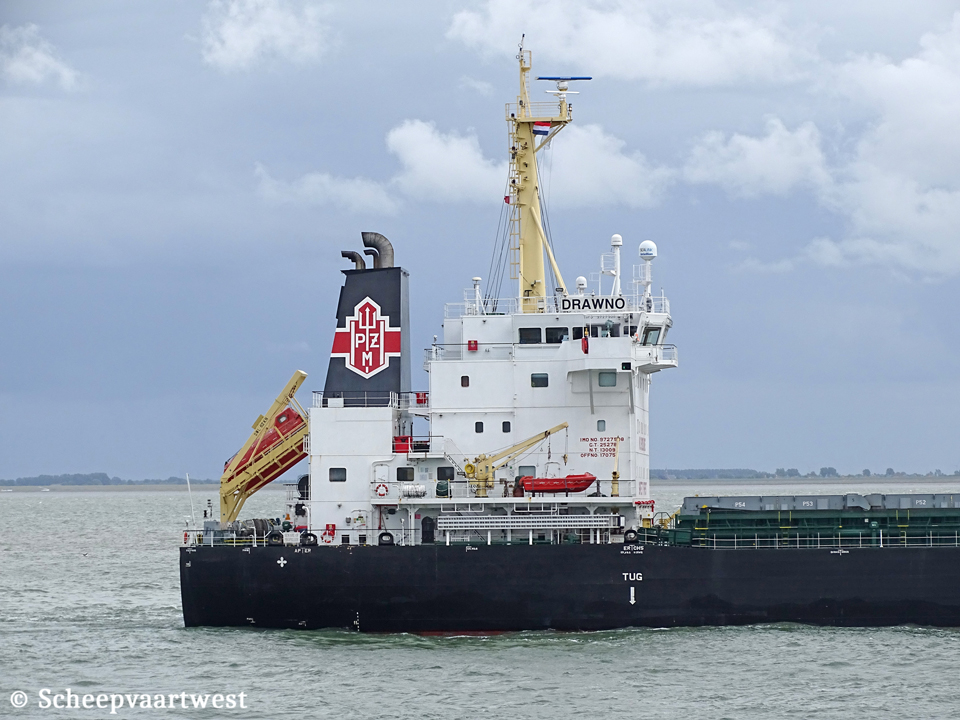

Drawno IMO 9727508 02
Westerschelde 04/06/20









Name

DRAWNO

Type

Bulk carrier - Handymax

Single deck, Double Sskinned, Box, Open hatch, Self-timming bulk carrier

IMO-number

9727508

Call sign

D5JE4

Flag

Liberia

Port of registry

Monrovia

GT

23.475 t

DWT

Summer: 39.071 t

Winter: 37.963 t

NT

13.442 t

Length

179,99 m overall

176,65 m between perpendiculars

Breadth

30,03 m

Draught

Summer: 10,50 m

Winter: 10,28 m

Keel to mast end

44,00 m

Depth

15,00 m moulded

Speed

14,2 knots

Economic: 12,0 knots

Built

2018

Builder

Yangfan Group Co. Ltd.

China

Yard number

BC38K-PZ06

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W/Dalian 5S50ME-B9 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.050 kW / 8.226 hp at 99,0 rpm

Propellers

1x Fixed pitch propeller

Generators

3x Main diesel generatorsets each 674 kW

Emergency generator

1x Diesel generatorset 150 kVA

Number of holds

5

Hold 1: 23,20 x 20,80 x 15,40 m

Hold 2: 31,20 x 20,80 x 15,40 m

Hold 3: 31,20 x 20,80 x 15,40 m

Hold 4: 31,20 x 20,80 x 15,40 m

Hold 5: 17,20 x 20,80 x 15,40 m

Cargo hold capacity

Grain:

Hold 1: 7.030 m³ / 248276 ft³

Hold 2: 11.809 m³ / 417.031 ft³

Hold 3: 11.783 m³ / 416.113 ft³

Hold 4: 11.783 m³ / 416.113 ft³

Hold 5: 8.383 m³ / 296.043 ft³

Total: 50.788 m³ / 1.793.675 ft³

Hold ventilation

Natural + Mechanical

Number of hatches

5

Hatch 1: 14,95 x 20,80 m

Hatch 2: 23,40 x 25,40 m

Hatch 3: 23,40 x 25,40 m

Hatch 4: 23,40 x 25,40 m

Hatch 5: 17,25 x 25,40 m

Cargo gear

4x Deck cranes - SWL 35,0 t each with grabs

ISM & commercial manager

Polska Zegluga Morska PP

Plac Rodla 8

70-419 Szczecin

Poland

Registered owner

Jupiter Six Shipping Ltd.

Care of Polska Zegluga Morska PP (Polsteam)

Plac Rodla 8

70-419 Szczecin

Poland

Latest data adjustment

29 June 2022
