| Westerschelde 09 January 2019 |
|
Name |

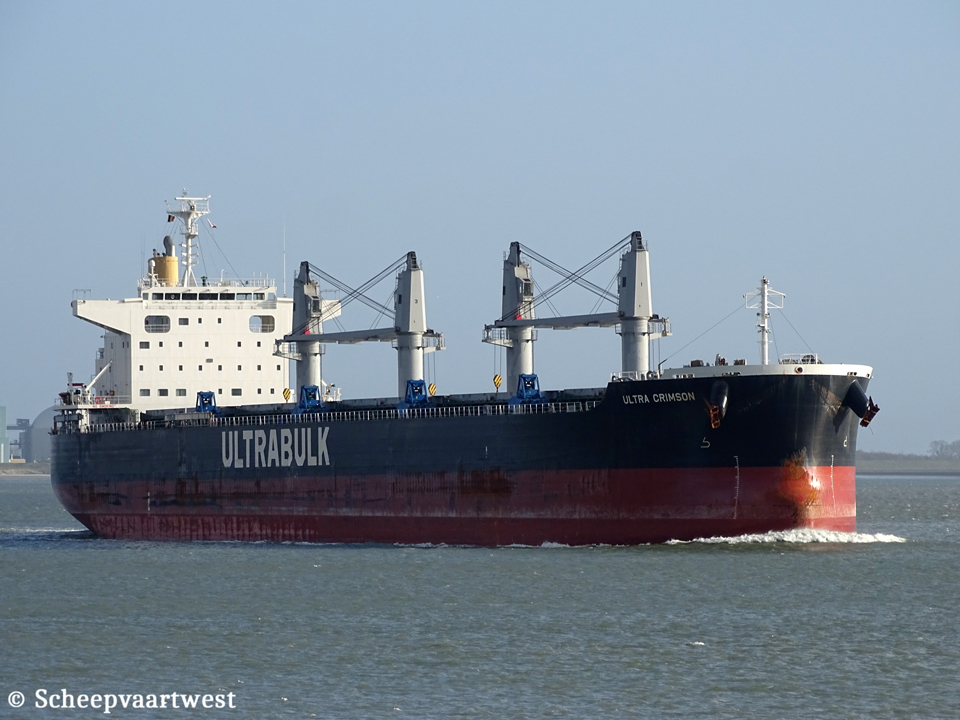

ULTRA CRIMSON |
|
Type |
Geared grab fitted bulk carrier - Strengthened for heavy cargo loading Supramax |
|
IMO-number |
9757826 |
|
Call sign |
3FBQ4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
34.776 t |
|
DWT |
61.084 t |
|
NRT |
20.209 t |
|
Length |
199,98 m overall |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,01 m |
|
Moulded L x B x D |
195,00 x 32,24 x 18,60 m |
|
Registered L x B x D |
195,39 x 32,24 x 18,60 m |
|
Keel to mast end |
46,70 m |
|
Freeboard |
Summer: 5.640 mm |
|
Depth |
18,60 m moulded |
|
Speed |
Max: 16,1 knots Service: 14,5 knots |
|
Built |
2016 |
|
Keel laid |
28/04/2015 |
|
Launch date |
14/01/2016 |
|
Date of completion |
24/03/2016 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1708 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
MAN-B&W 6S50ME-B9 2 - stroke 6 cylinder 500 x 2.214 mm combustion engine 8.260 kW / 11.230 hp at 108,0 rpm Manufacturer: Hitachi Zosen Corporation Ariake Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 500 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 2,10 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 2.340 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 73.551,72 m³ Grain: 77.674,69 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.565,53 m³ Fresh water: 669,12 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Grab Capacity: 4x 12,5 m³ |
|
ISM & commercial manager |
MMSL Pte Ltd. 32-02, Frasers Tower, 182, Cecil Street Singapore 069547 Republic of Singapore |
|
Registered owner |
Taiei Naviera SA - Republic of Panama Care of MMSL Pte Ltd. 32-02, Frasers Tower, 182, Cecil Street Singapore 069547 Republic of Singapore |
|
Latest data adjustment |
14 August 2022 |
