| Westerschelde 01 July 2020 |
|
Name |

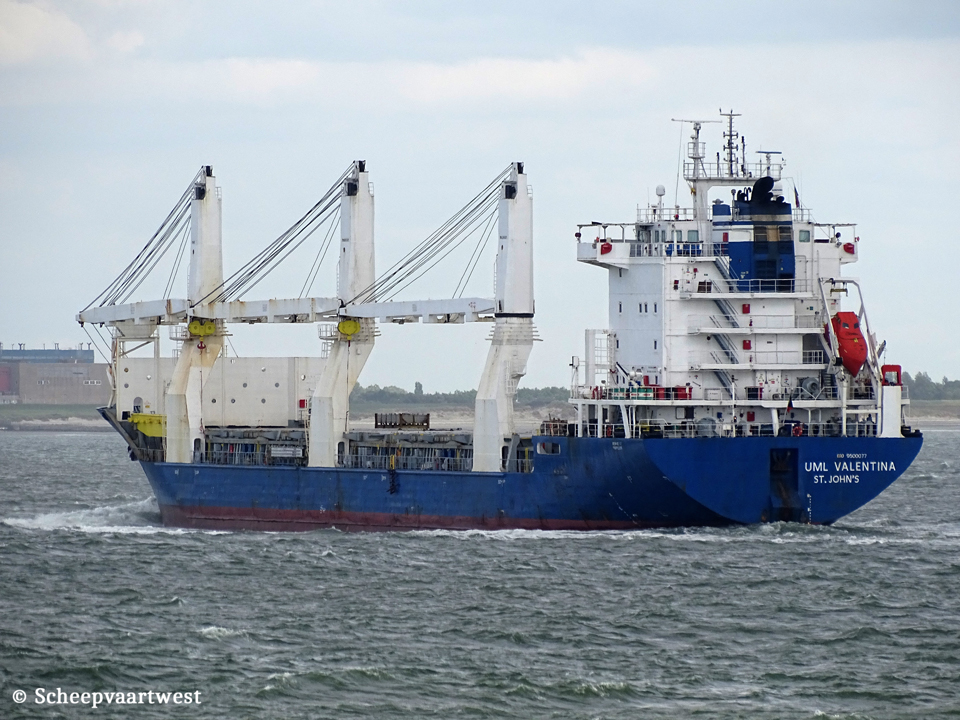

UML VALENTINA |
|
Previous names |
2010 - 2010 Sonja Friederich 2010 - 2015 Safmarine Longa 2015 - 2017 BBC Mahaweli 2017 - 2019 Mercs Mahaweli 2019 Zea Mahaweli |
|
Type |
Multi-purpose dry cargo - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9500077 |
|
Call sign |
V2HH8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
2010 - 2020 Sri Lanka, Colombo |
|
GT |
9.772 t |
|
DWT |
12.346 t |
|
NT |
4.382 t |
|
Number of 20ft containers |
In hold: 306 On deck: 422 Total: 728 |
|
Reefer plugs |
144 |
|
Length |
139,99 m overall |
|
Breadth |
21,50 m |
|
Draught |
Summer: 8,20 m |
|
Reg. dimensions Lx B x D |
133,72 x 21,50 x 11,40 m |
|
Rule dimensions Lx B x D |
133,72 x 21,50 x 11,40 m |
|
Freeboard |
Summer: 2.916 mm |
|
Depth |
11,40 m |
|
Speed |
16,5 knots |
|
Built |
2010 |
|
Keel laid |
04/12/2008 |
|
Launch date |
06/08/2009 |
|
Date of completion |
21/09/2010 |
|
Builder |
Tongfang Jiangxin Shipbuilding Co., Ltd. Jiangxin Road, Hukou County Jiujiang, 332501 Jiangxi People's Republic of China |
|
Yard number |
JX603 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom Double skin |
|
Main engine |
1x MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW at 129 rpm Year of manufacture: 03/2008 Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Jeonha-dong, Dong-gu Ulsan ,682-792 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 129 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating Surface: 22,6 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating Surface: 260,0 m² Year of manufacture: 10/2008 Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. 1, Renmin XI Road Zhangjiagang City, 215600 Jiangsu People's Republic of China |
|
Electric installations |
3x Plants each 450 V - 1.000 kVA 1x Plant 450 V - 122,5 kVA 2x Plants each 24 V - 200 Ah 1x Plant 24 V - 400 Ah 4x Plants each 24 V - 600 Ah |
|
Generators |
3x Main diesel generatorsets each 1.000 kVA / 450 Volt |
|
Emergency generator |
1x Diesel generatorset 122,5 kVA |
|
Batteries |
4x Batteries for start emergency engine each 600 Ah 1x Battery for UPS radio 400 Ah 2x Batteries for automation each 200 Ah |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 40 litres - 10,0 bar 1x Receiver 1.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster - 500 kW, forward |
|
Number of holds |
3 |
|
Total hold capacity |
Grain & Bale: 15.537 m³ with tweendeck |
|
Number of hatches |
3 Hatch 1: 20,30 x 10,80 m Hatch 2: 39,20 x 17,90 m Hatch 3: 25,90 x 17,90 m |
|
Floor space |
Hatch covers: 1.565 m² Tweendeck: 1.410 m² Lower deck: 1.314 m² Total: 4.290 m² |
|
Max permitted loads |
Tanktop: 18,0 t/m² Tweendeck: 3,5 t/m² Hatch covers: 3,5 t/m² |
|
Tank capacities |
Water ballast: 4.753,4 m³ Fuel oil: 1.151,1 m³ Fresh water: 292,4 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m Diameter: 54 mm |
|
Cargo gear |
2x Deck cranes - SWL 80,0 t each 1x Deck crane - SWL 45,0 t Combined lift capacity: 160 t |
|
Crew size |
25 |
|
ISM & commercial manager |
Reederei Bernd Sibum Gmbh & Co. KG Germany |
|
Registered owner |
MS "Sonja Friederich" Schifffahrtsgesellschaft mbH & Co. KG Germany |
|
Latest data adjustment |
10 September 2022 |
