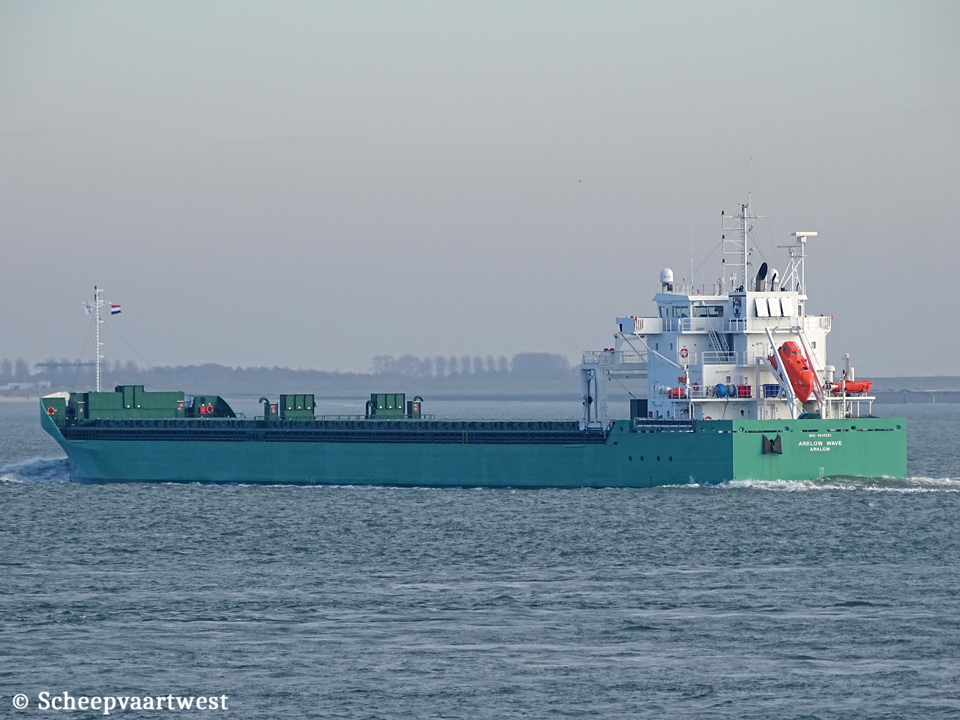

Arklow Wave - IMO 9818931

Name

ARKLOW WAVE

Type

General cargo vessel - Heavycargo - Occasional dry bulk cargo

IMO-number

9818931

Call sign

EIUQ9

Flag

Ireland

Port of registry

Arklow

GT

9.999 t

DWT

Summer: 16.791,4 t

Winter: 16.315,7 t

NT

5.155 t

Length

149,50 m overall

145,50 m between perpendiculars

Breadth

19,25 m moulded

Draught

Summer: 8,60 m

Winter: 8,43 m

5,10 m ballast

Air draft

Min: 28,80 m

Freeboard

3.426 mm

Depth

12,00 m

Speed

Service: 13,0 knots

Max: 16,3 knots

Built

2018

Date of completion

24/10/2018

Builder

Ferus Smit

Leer

Germany

Yard number

447

Hull material

Steel

Movable bulkheads

2x Moveable bulkheads with 9 positions

Continuous decks

1

Main engine

1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 hp at 600 rpm

Build: 25/12/2017

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 110 rpm

Generators

2x Main diesel generatorsets each 500 kVA - 400 kW - 595 hp

Emergency generator

1x Diesel generatorset 125 kVA - 100 kW - 158 hp

Number of holds

2

Cargo hold capacity

Hold 1:

7.540,0 m³ / 266.275 ft³ b/heads

7.341,6 m³ / 259.254 ft³ b/heads stowed

Hold 2:

12.176,7 m³ / 430.020 ft³ b/heads

11.977,0 m³ / 422.944 ft³ b/heads stowed

Hold ventilation

6x Changes/h

Number of hatches

2

Hatch 1: 42,00 x 16,05 x 11,80 m

Hatch 2: 64,00 x 16,05 x 11,80 m

Hatch type

Coops & Nieborg pontoon

Max permitted loads

Tanktop: 20,0 t/m²

Tank capacities

Fuel: 586,72 m³

Commercial manager

Arklow Shipping Nederland BV

Hoofdweg 18

3067 GH Rotterdam

The Netherlands

ISM manager

Arklow Shipping ULC

North Quay, Arklow, Co.

Wicklow

Ireland

Registered owner

Glenart Shipping Ltd.

Care of Arklow Shipping Unlimited Co (Arklow Shipping ULC), North Quay, Arklow, Co.

Wicklow

Ireland

Latest data adjustment

15 October 2022
