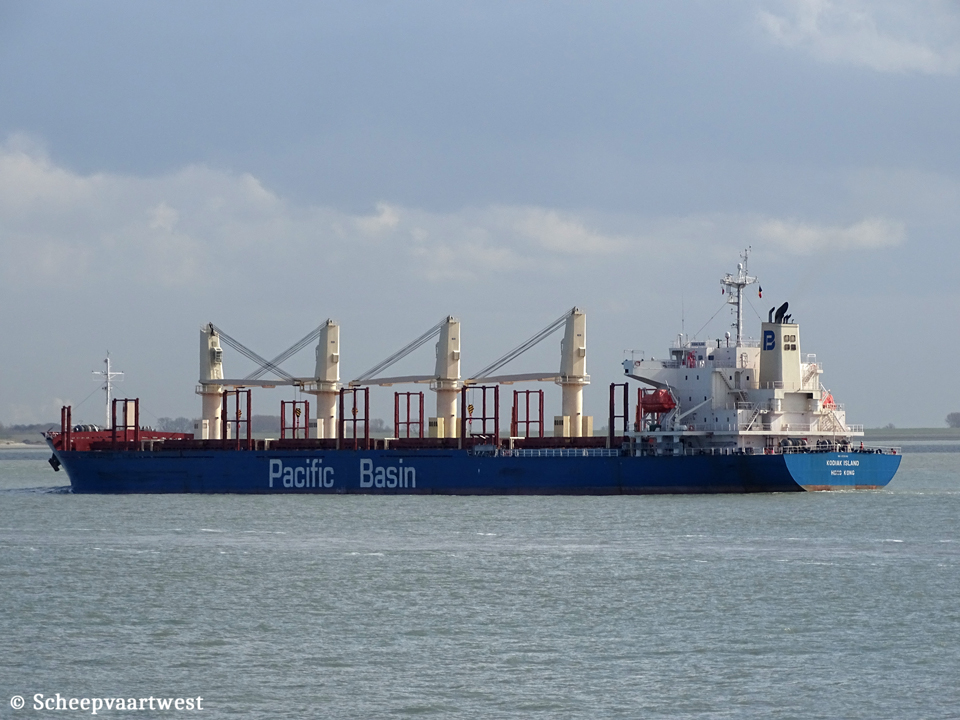

| Westerschelde 08 March 2019 |
|
Name |
KODIAK ISLAND |
|
Type |
General cargo/Lumber - Strengthened for heavy cargo loading - Handysize |
|
IMO-number |
9726190 |
|
Call sign |
VRQO7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GRT |
23.275 t |
|
DWT |
37.581 t |
|
NRT |
12.282 t |
|
Length |
179,93 m overall |
|
Breadth |
30,00 m moulded |
|
Draught |
Summer: 10,53 m |
|
Moulded L x B x D |
174,50 x 30,00 x 15,00 m |
|
Registered L x B x D |
175,06 x 30,00 x 15,00 m |
|
Keel to mast end |
41,60 m |
|
Freeboard |
Summer: 4.528 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Service 14,0 knots Max: 15,8 knots |
|
Built |
2017 |
|
Keel laid |
23/11/2013 |
|
Launch date |
19/12/2016 |
|
Date of completion |
30/03/2017 |
|
Builder |
Kanda Shipbuilding Co., Ltd. Japan |
|
Yard number |
559 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC45LSE-B2-ECO - 2 stroke 6 cylinder 450 x 1.930 mm combustion engine Mcr 6.250 kW / 8.498 hp at 108,0 rpm Manufacturer: Kobe Diesel Co., Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 445 mm |
|
Propellers |
1 |
|
Boilers |
1x Composite boiler - 0,78 MPa Evaporation: 2,34 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generatorsets total 1.750 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 45.904 m³ Grain: 47.531 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.759 m³ Fresh water: 298 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
ISM & commercial manager |
Basin Shipping (HK) Ltd. 31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang Hong Kong - China |
|
Registered owner |
Kodiak Island Ltd. Care of Pacific Basin Shipping (HK) Ltd. 31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang Hong Kong - China |
|
Latest data adjustment |
13 November 2022 |
