| Westerschelde 27 July 2020 |
|
Name |

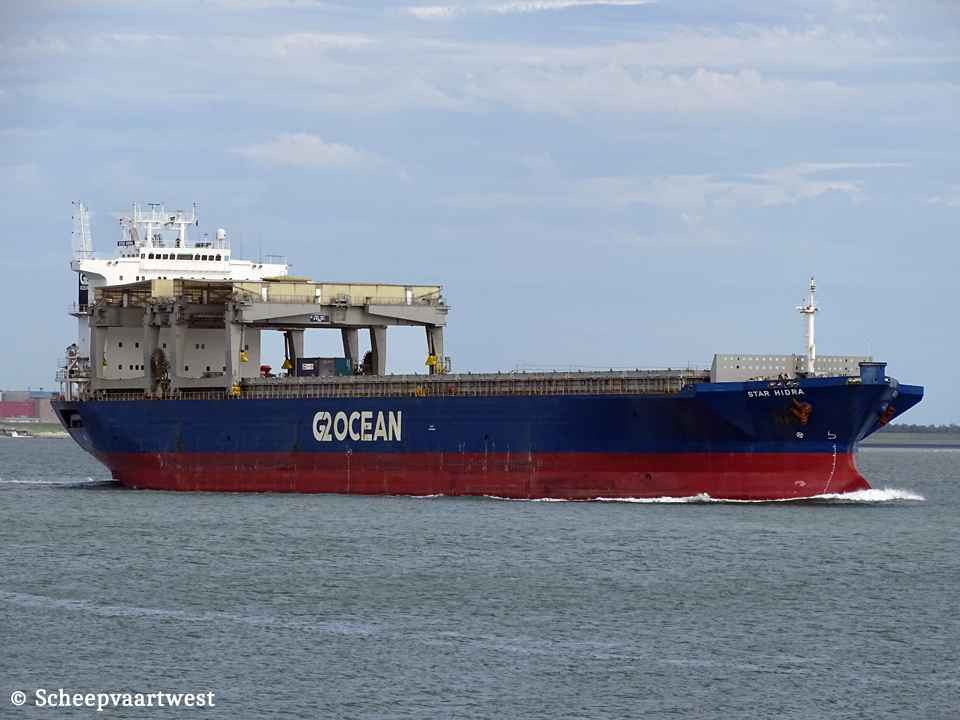

STAR HIDRA |
|
Type |
General dry cargo ship - Heavycargo - Equipped for carriage of containers |
|
Main products |
Baled pulp, ore, grain, cement, paper, packaged lumber and the solid bulk cargoes |
|
IMO-number |
9071569 |
|
Call sign |
LAVN4 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
32.744 t |
|
DWT |
Summer: 46.547 t Winter: 45.237 t |
|
NT |
13.647 t |
|
Number of 20ft containers |
1.950 |
|
Length |
198,00 m overall 187,03 m between perpendiculars |
|
Breadth |
31,00 m |
|
Draught |
Summer: 12,31 m Winter: 12,06 m |
|
Keel to mast end |
46,00 m |
|
Freeboard |
3.316 |
|
Depth |
19,00 m |
|
Speed |
16,0 knots full speed 14,0 knots economic |
|
Built |
1994 |
|
Builder |
Mitsui Engineering & Shipbuilding Co. Ltd., Tamano Works Japan |
|
Hull material |
Mild steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x B&W/Mitsui 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 10.520 kW / 14.293 hp at 96,0 rpm Builder: Mitsui Co., Ltd. |
|
Propellers |
1x Screw propeller solid - aft at 96,0 rpm |
|
Boilers |
1x CHO Auxiliary boiler 22,00 m² - 7,0 bar 1x CHR Exhaust gas economizer 188,00 m² - 6,0 bar |
|
Generators |
1x Diesel generatorset 100 kVA - 80 kW 1x Diesel generatorset 922 kVA - 738 kW - 1.053 hp 2x Diesel generatorset each 1.625 kVA - 1.300 kW - 1.895 hp |
|
Thruster |
1x 1.100 kW, forward 1x 1.100 kW, aft |
|
Number of holds |
11x Box-shaped |
|
Cargo hold capacity |
Hold 1: 4.048,8 m³ / 142.983 ft³ Hold 2: 5.510,5 m³ / 194.603 ft³ Hold 3: 6.206,4 m³ / 219.179 ft³ Hold 4: 6.206,4 m³ / 219.179 ft³ Hold 5: 6.206,4 m³ / 219.179 ft³ Hold 6: 6.206,4 m³ / 219.179 ft³ Hold 7: 6.206,4 m³ / 219.179 ft³ Hold 8: 6.206,4 m³ / 219.179 ft³ Hold 9: 6.206,4 m³ / 219.179 ft³ Hold 10: 5.722,2 m³ / 202.079 ft³ Hold 11: 2.764,7 m³ / 97.635 ft³ Total: 61.491 m³ / 2.171.553 ft³ |
|
Deck area |
Weather deck: 3.550 m² Under deck: 4.841 m² |
|
Number of tweendecks |
4 |
|
Max permitted load |
Hatch covers: 3,60 t/m² Tweendecks:5,50 t/m² Tanktop hold 1: 22,0 t/m² Tanktop hold 2-10: 28,0 t/m² Tanktop hold 11 : 17,0 t/m² |
|
Tank capacities |
Fuel: 2.360,4 m³ |
|
Cargo gear |
2x Gantry Crane - SWL 40,0 t each |
|
Crew size |
Accommodation aft for a total of 29 persons |
|
Commercial manager |
G2 Ocean AS C Sundts gate 17 5004 Bergen Norway |
|
ISM manager |
Grieg Star AS C Sundtsg 17-19 5004 Bergen Norway |
|
Registered owner |
Grieg Shipping II AS Care of G2 Ocean AS C Sundtsg 17-19 5004 Bergen Norway |
|
Latest data adjustment |
06 January 2023 |
