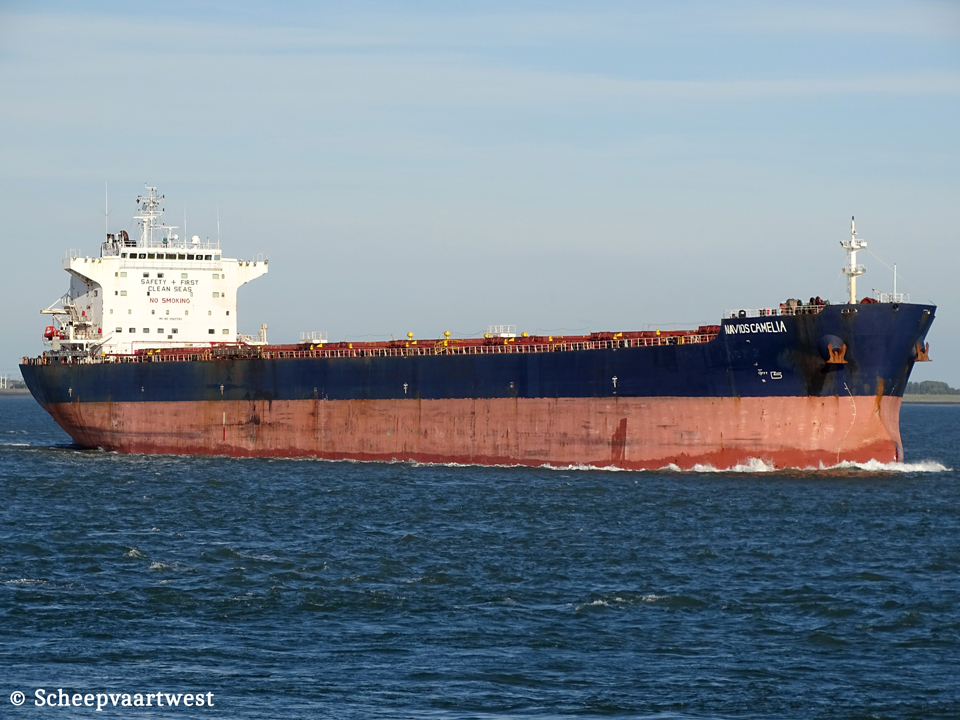

| Westerschelde 02 August 2020 |
|
Name |
NAVIOS CAMELIA |
|
Previous names |
2009 - 2019 Lady Z 2019 - 2020 Camelia |
|
Type |
Bulk carrier - Panamax |
|
IMO-number |
9465784 |
|
Call sign |
3EWI7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
40.170 t |
|
DWT |
75.162 t |
|
NT |
25.603 t |
|
Length |
225,00 m overall 217,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,25 m |
|
Deck house |
11,20 m |
|
Depth |
19,60 m |
|
Speed |
Service: 14,0 knots Max: 16,0 knots |
|
Built |
2009 |
|
Keel laid |
17/12/208 |
|
Launch date |
14/02/2009 |
|
Date of completion |
22/04/2009 |
|
Builder |
Hudong-Zhonghua Shipbuilding (Group) Co., Ltd. Shaghai China |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Non tight: 1 Water tight: 9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hudong 5S60MC-C - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine Mcr 8.990 kW / 12.223 hp at 101,0 rpm Build: 01/12/2008 Builder: Hudong Heavy Machinery Co.,Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary composite boiler MISSION TM OC 1 - 9,0 bar Heating surface: 15,00/230,00 m² Builder: Aalborg Industries Ltd/ |
|
Generators |
3x Main diesel generatorsets each 570 kW Builder: Taiyo Electric Co.,Ltd. |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 190 hp |
|
Number of holds |
7 |
|
cargo hold capacity |
Grain Hold 1: 10.984,30 m³ Hold 2: 12.959,90 m³ Hold 3: 14.158,40 m³ Hold 4: 12.864,20 m³ Hold 5: 14.196,20 m³ Hold 6: 12.873,30 m³ Hold 7: 11.902,60 m³ Total: 89.938,90 m³ |
|
Number of hatches |
7 1x 14,62 x 13,20 m 6x 14,42 x 15,00 m |
|
Hatch type |
Side-rolling |
|
Tank capacities 100% |
Diesel oil: 145,9 m³ Fresh water: 510,2 m³ Fuel oil: 2.680,8 m³ Lube oil: 20,4 m³ Tank ballast: 20.728,6 m³ |
|
Lifting equipment |
1x Hose handling davit - Port side - SWL 0,9 t 1x Hose handling davit - Starboard side - SWL 0,9 t 1x Engine room overhead crane - SWL 4,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Ningbo kairong |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
ISM & commercial manager |
Navios Shipmanagement Inc. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Registered owner |
Camelia Shipping Inc. Care of Navios Shipmanagement Inc. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Renamed |
11/2022 Prime Andalan I Indonesia, Jakarta - Call sign: YDWT2 Owner: PT. Prima Maritim Bahari Operator: PT. Sukses Inkor Maritim |
|
Latest data adjustment |
08 January 2023 |
