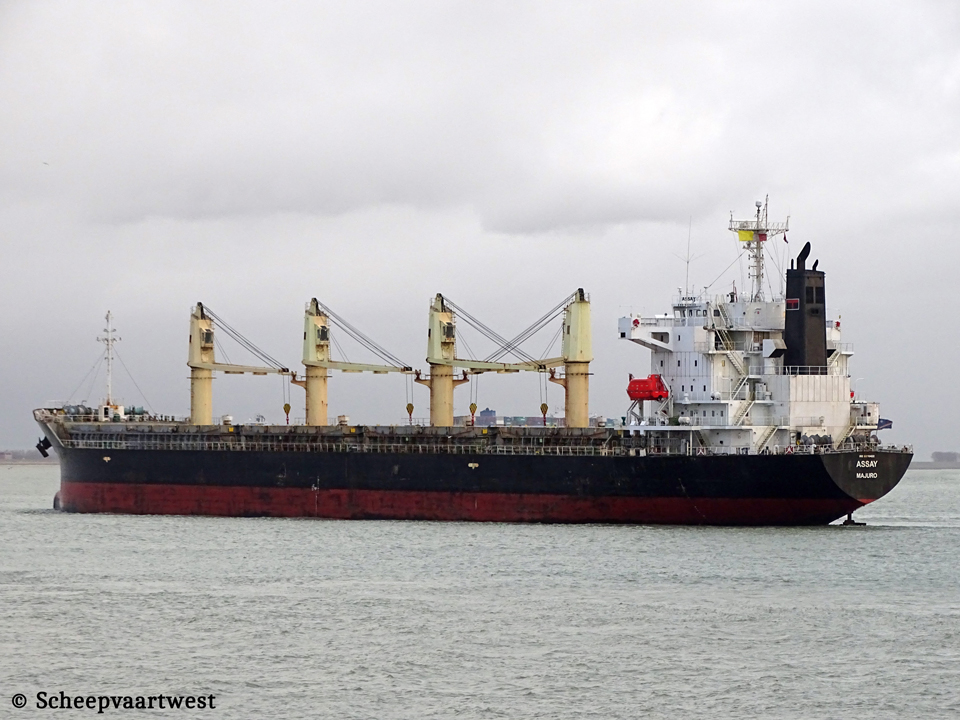

Assay IMO 9370422 01
Westerschelde 11 January 2019


Name

ASSAY

Previous names

2008 - 2018 Star Lily

Type

Bulk carrier

IMO-number

9370422

Call sign

V7RP5

Flag

Marshall Islands

Port of registry

Majuro

GRT

21.192 t

DWT

33.248 t

NRT

11.444 t

Length

179,99 m overall

Breadth

28,20 m moulded

Draught

Summer: 10,03 m

Moulded L x B x D

172,00 x 28,20 x 14,30 m

Registered L x B x D

172,32 x 28,20 x 14,30 m

Freeboard

4.336 mm

Depth

14,30 m moulded

Speed

Max: 15,9 knots

Service: 14,3 knots

Built

2008

Keel laid

02/06/2006

Launch date

28/08/2008

Date of completion

28/10/2008

Builder

Shin Kochijyuko Co., Ltd.

Kochi

Japan

Yard number

7220

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x Mitsubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine 6.250 kW at 118,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 460 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 1,87 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Diesel generatorsets total 1.191 kVA

Number of holds

5

Cargo hold capacity

Grain: 43.765 m³

Bale: 44.642 m³

Hold ventilation

Electrical

Number of hatches

5

Hatch 1: 16,80 x 17,20 m

Hatch 2: 20,80 x 23,80 m

Hatch 3: 20,80 x 23,80 m

Hatch 4: 20,80 x 23,80 m

Hatch 5: 19,20 x 23,80 m

Max permitted loads

Tanktop: 12,5 t/m²

Tank capacities

Fuel oil: 1.610 m³

Fresh water: 310 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Commercial manager

Taylor Maritime HK Ltd.

26th Floor, Vertical Square, 28, Heung Yip Road, Wong Chuk Hang

Hong Kong - China

ISM manager

Tamar Ship Management Ltd.

26th Floor, Vertical Square, 28, Heung Yip Road, Wong Chuk Hang

Hong Kong - China

Registered owner

Good Fiefdom MI Ltd.

Care of Taylor Maritime (HK) Ltd.

26th Floor, Vertical Square, 28, Heung Yip Road, Wong Chuk Hang

Hong Kong - China

Latest data adjustment

21 January 2023
