| Westerschelde 01 August 2019 |
 |
|
| Westerschelde 01/08/19 | |
|
Name |

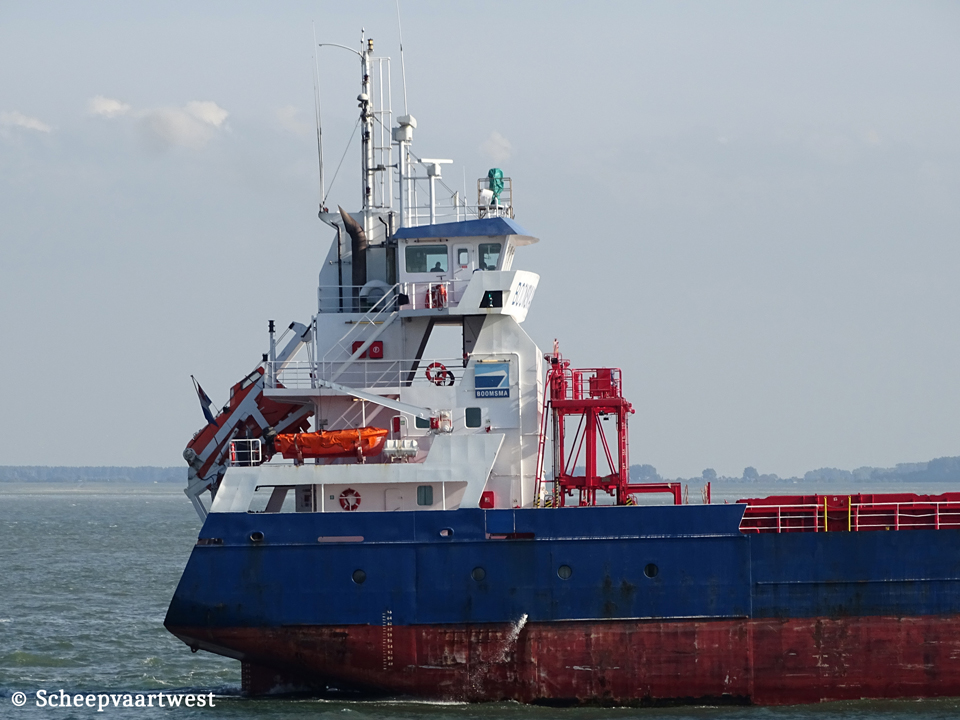

FRISIAN SPRING |
|
Type |
General Cargo ship |
|
IMO-number |
9367774 |
|
Call sign |
PHII |
|
Flag |
The Netherlands |
|
Port of registry |
Sneek |
|
GT |
4.087 t |
|
DWT |
6.582 t |
|
DWCC |
Summer: 6.100 t Winter: 5.910 t |
|
NT |
1.747 t |
|
Number of 20ft containers |
256 |
|
Length |
118,90 m overall 111,69 m between perpendiculars |
|
Breadth |
13,45 m extreme |
|
Draught |
Summer: 6,08 m |
|
Air draft |
25,00 m in ballast |
|
Depth |
9,10 m |
|
Speed |
11,5 knots in ballast 10,0 knots loaded |
|
Built |
2007 |
|
Keel laid |
23/12/2004 |
|
Delivery date |
16/02/2007 |
|
Builder casco |
Port Weller Dry Docks St. Catharines Canada |
|
Builder completion |
Scheepswerf Peters B.V. Kampen The Netherlands |
|
Yard number |
814 |
|
Hull material |
Steel |
|
Movable bulkheads |
3x Pieces in hold 2, for 9 positions including storage positions |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26A2 - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine 2.040 kW at 1.000 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
2 Hold 1: 18,70 x 11,20 x 9,00 m Hold 2: 59,90 x 11,20 x 9,00 m |
|
Cargo hold capacity |
Grain: 7.923 m³ / 279.798 ft³ |
|
Hold ventilation |
6x Air changes / hour |
|
Number of hatches |
2 Hatch 1: 18,70 x 11,20 m Hatch 2: 59,90 x 11,20 m |
|
Hatch type |
Pontoon covers (13 pieces) |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,6 t/m& |
|
Tank capacities |
Fuel oil IFO: 380 m³ MGO: 37 m³ Fresh water: 42 m³ Water ballast: 2.378 m³ |
|
ISM & commercial manager |
Boomsma Shipping B.V. Harste 15 Sneek The Netherlands |
|
Previous managers |
Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., Delfzijl - The Netherlands |
|
Operator |
NewTide Chartering B.V. Wilhelminakade 1 3072 AP Rotterdam The Netherlands |
|
Registered owner |
Scheepvaartonderneming M/S Frisian Spring CV Care of Boomsma Shipping BV Harste 15 Sneek The Netherlands |
|
Previous owners |
Scheepvaartondernemimg ms Frisian Spring C.V., Sneek - The Netherlands |
|
Latest data adjustment |
26 January 2023 |
