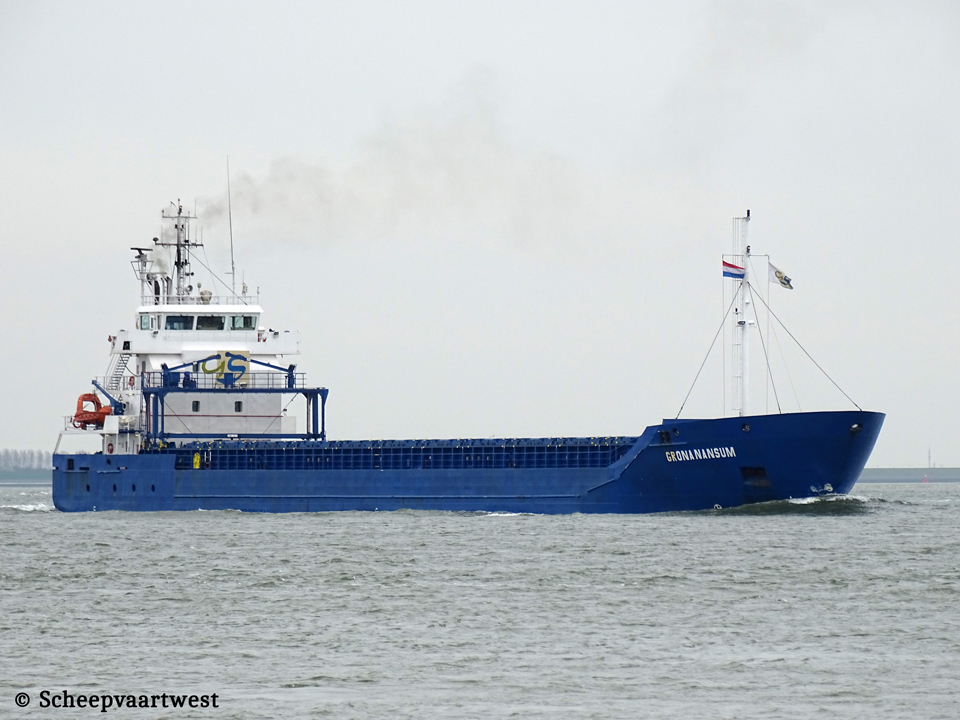

| Westerschelde 22 April 2016 |
|
Name |
GRONA NANSUM |
|
Previous names |
01/2012 -09/2013 Emswater |
|
Type |
Multi-purpose dry cargo vessel - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9552082 |
|
Call sign |
V2FZ8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
3.500 t |
|
DWT |
5.235,2 t |
|
NT |
1.382 t |
|
Number of 20ft containers |
188 |
|
Length |
99,36 m overall 92,37 m between perpendiculars |
|
Breadth |
13,53 m extreme |
|
Draught |
Summer: 6,15 m |
|
Depth |
9,10 m |
|
Speed |
Max: 12,0 knots |
|
Built |
2012 |
|
Keel laid |
21/12/2008 |
|
Launch date |
25/12/2011 |
|
Date of completion |
02/04/2012 |
|
Builder |
Western Marine Shipyard Ltd. Chattogram Bangladesh |
|
Yard number |
928/08 |
|
Hull material |
Steel |
|
Movable bulkheads |
2 |
|
Main engine |
1x MaK 6M25 C - 4 stroke 6 cylinder 255 x 400 mm combustion engine 2.000 kW / 2.719 hp at 750 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil fired |
|
Generators |
2x SISU 74.475 CTAG-4V diesel generatorsets each 163 kW |
|
Emergency generator |
1x SISU 49.548DTG diesel generatorset 81 kW |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
1 61,80 x 11,20 x 9,60 m |
|
Cargo hold capacity |
6.645 m³ / 234.650 ft³ |
|
Number of hatches |
1 61,80 x 11,20 m |
|
Max permitted loads |
Tanktop: 15,0 t/m² Deck load: 1,75 t/m² |
|
Tank capacities |
Ballast: 1.911,8 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
Manager |
Grona Shipping GmbH Hafenstraße 6 26506 Leer Germany |
|
Renamed |
12/2016 Aceromar G.D. Luxembourg, Luxembourg - Call sign: LXRV Owner: Vertom-Bojen Schiffahrts MS "Celine" GmbH & Co. KG - Germany Manager: Vertom Bereederungs GmbH & Co. KG, Moormerland, Germany |
|
Latest data adjustment |
23 February 2023 |
