| Westerschelde 19 April 2017 |
|
Name |

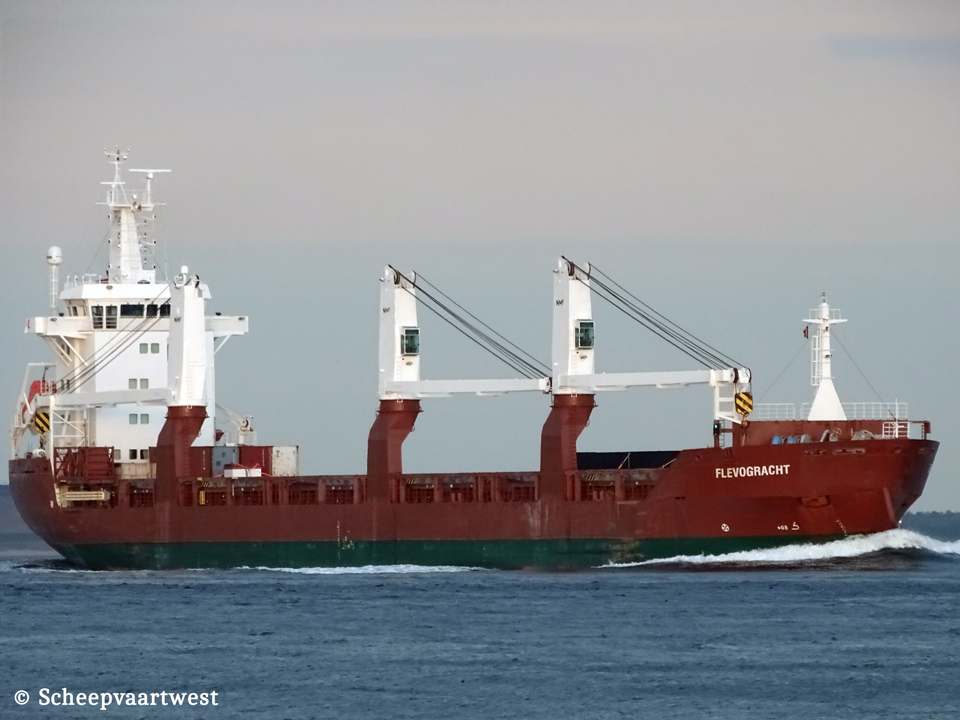

FLEVOGRACHT |
|
Type |
General Cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9509956 |
|
Call sign |
PBUT |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
8.620 t |
|
DWT |
12.500 t excl. Tweendeck 12.075 t Incl. tweendeck |
|
NT |
4.398 t |
|
Number of 20ft containers |
In holds: 296 On deck: 362 Total: 658 |
|
Number of 40ft containers |
In hold: 136 + 24 TEU On deck: 186 + 62 TEU Total: 322 + 86 TEU |
|
Reefer capacity |
322 |
|
Length |
136,64 m overall 128,94 m between perpendiculars |
|
Breadth |
18,90 m moulded |
|
Draught |
Summer: 8,53 m |
|
Freeboard |
1.136 mm |
|
Depth |
11,65 m moulded |
|
Speed |
Max: 15,7 knots Service: 14,0 knots |
|
Built |
2011 |
|
Keel laid |
01/07/2009 |
|
Launch date |
10/10/2009 |
|
Delivery date |
14/04/2011 |
|
Builder |
Jiangsu Yangzi Chanbo Shipbuilding Co. Ltd. Rongcheng China |
|
Yard number |
K06-040 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads / compartments |
Removable pontoons for up to 11 compartments at TEU interval |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6R46 - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 bhp at 500 rpm Build: 12/2008 Builder: Wärtsilä Iberica S.A., Bermeo factory - Spain |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boilers |
1x CHO Heatmaster BV 28,50 m²-/ 10,0 bar 1x CHR Heatmaster BV 108,00 m² - 10,0 bar |
|
Generators |
3x Main diesel generatorsets each 413 kVA - 330 kW - 480 hp |
|
Emergency generator |
1x Diesel generatorset 263 kVA - 210 kW - 296 hp |
|
Bow thruster |
1x 500 kW / 700 hp |
|
Number of holds |
2 |
|
Cargo hold capacity |
Hold 1: 208.000 ft³ / 5.890 m³ Hold 2: 557.250 ft³ / 15.780 m³ Total: 765.250 ft³ / 21.670 m³ |
|
Hold ventilation |
30 x per hour / empty holds |
|
Number of hatches |
Weather deck: N° 1: 26,60 x 15,80 m N° 2: 31,74 x 15,80 m N° 3: 26,60 x 15,80 m Tween deck: 91,94 x 15,80 m Consisting of 17 steel pontoons: 11x 6,35 x 15,80 m 2x 4,36 x 15,80 m 3x 3,19 x 15,80 m 1x 3,19 x 15,80 m |
|
Hatch type |
Steel, end folding type |
|
Timber |
17.500 m³ length packages |
|
Floor spaces |
Tank top: 1.270 m² Tween deck: 1.419 m² Weather deck: 1.589 m² |
|
Max permitted loads |
Weather deck hatch covers: 2,00 t/m² Tween deck hatch covers: 4,50 t/m² Tank top: 20,00 t/m² |
|
Tank capacities |
Fuel oil: 1.300 m³ Diesel oil: 170 m³ Ballast water: 4.000 m³ |
|
Cargo gear |
3x NMF cranes starboard side - SWL 80,0 t each |
|
Manager |
Spliethoff's Bevrachtingskantoor B.V. Radarweg 36 1042 AA Amsterdam The Netherlands |
|
Registered owner |
Flevogracht Rederij Amlsterdam The Netherlands |
|
Previous owners |
04/2011 - 12/2012 C.V. Scheepvaartonderneming Lemmergracht, Amsterdam - The Netherlands |
|
Latest data adjustment |
30 April 2023 |
