| Westerschelde 20 August 2015 |
|
Name |

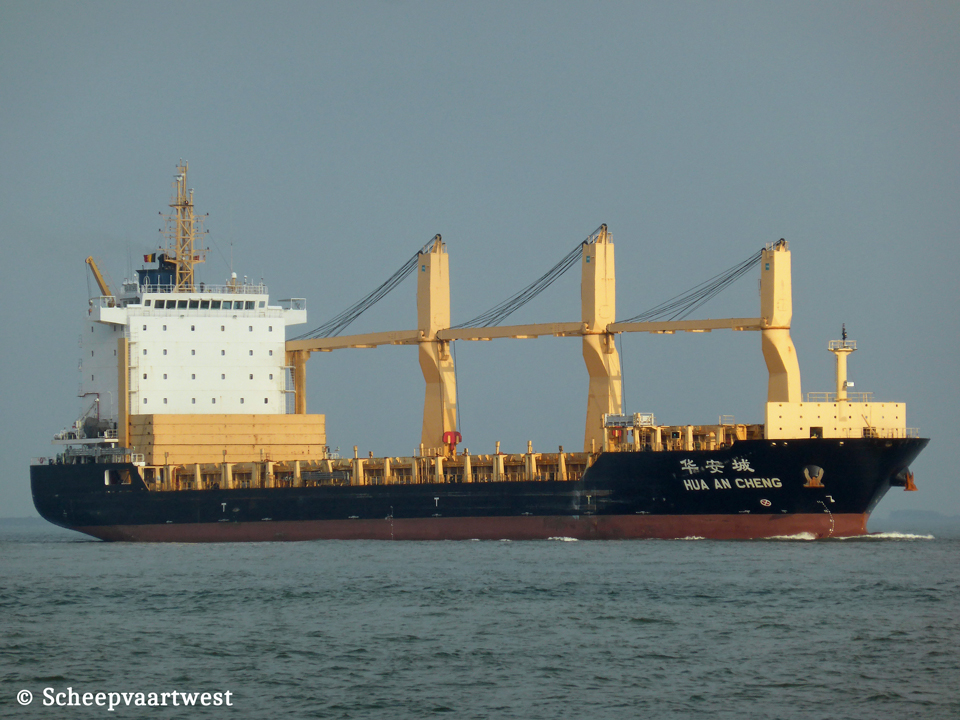

HUA AN CHENG |
|
Type |
Multi-purpose tweendecker dry cargo ship / Container vessel |
|
IMO-number |
9593660 |
|
Call sign |
9V9603 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
18.189 t |
|
DWT |
24.983 t |
|
NT |
8.446 t |
|
Number of 20ft containers |
In hold: 675 On deck: 822 Total: 1.497 |
|
Number of 40ft containers |
In hold: 152 + 120 TEU On deck: 418 + 237 TEU Total: 570 + 357 TEU |
|
Container capacity 14t |
1.247 |
|
Reefer capacity |
86 |
|
Length |
161,33 m overall 151,98 m between perpendiculars |
|
Breadth |
27,39 m moulded |
|
Draught |
Summer: 9,81 m |
|
Keel to mast end |
52,30 m |
|
Depth |
13,50 m to main deck |
|
Speed |
Service: 14,5 knots Max: 16,0 knots |
|
Built |
2013 |
|
Keel laid |
20/07/2012 |
|
Launch date |
01/11/2012 |
|
Date of completion |
28/02/2013 |
|
Builder |
Dalian Shipbuilding Industry Co., Ltd. China |
|
Yard number |
MC240-6 |
|
Hull material |
Steel - Part higher tensile steel |
|
Continuous decks |
1 |
|
Main engine |
1x Dalian/MAN-B&W 6S50MC-C8 (TIER II) - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.058 kW / 15.330 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Daihatsu 5DK-20E main diesel generatorsets each 620 kW |
|
Number of holds |
4 |
|
Cargo hold capacity |
30.235 m³ / 1.067.880 ft³ |
|
Number of hatches |
4 |
|
Hatch type |
Folding type |
|
Floor space |
Under deck: 4.189 m² / 45.000 ft² On deck: 2.438 m² / 26.242 ft² |
|
Max permitted loads |
Tanktop: 23,0 t/m² Tweendeck: 4,0 t/m² Hatch covers: 2,5 t/m² |
|
Cargo gear |
3x Deck cranes, situated Portside: 2x SWL - 100 t Combinable - SWL 200 t 1x SWL - 60 t |
|
Registered owner |
Pacific International Lines Pte Ltd. Republic of Singapore |
|
Renamed |
01/2018 Kota Bagus Republic of Singapore - Call sign: 9V9603 Owner: Pacific International Lines Pte Ltd. - Republic of Singapore 04/2021 BBC Elisabeth Antigua & Barbuda, Barbuda - Call sign: V2HL2 Manager: Briese Heavylift GmbH & Co KG, Leer - Germany Owner: Briese Schiffahrts GmbH & Co. KG MS “Reersum” |
|
Latest data adjustment |
07 May 2023 |
