| Westerschelde 28 April 2018 |
|
Name |

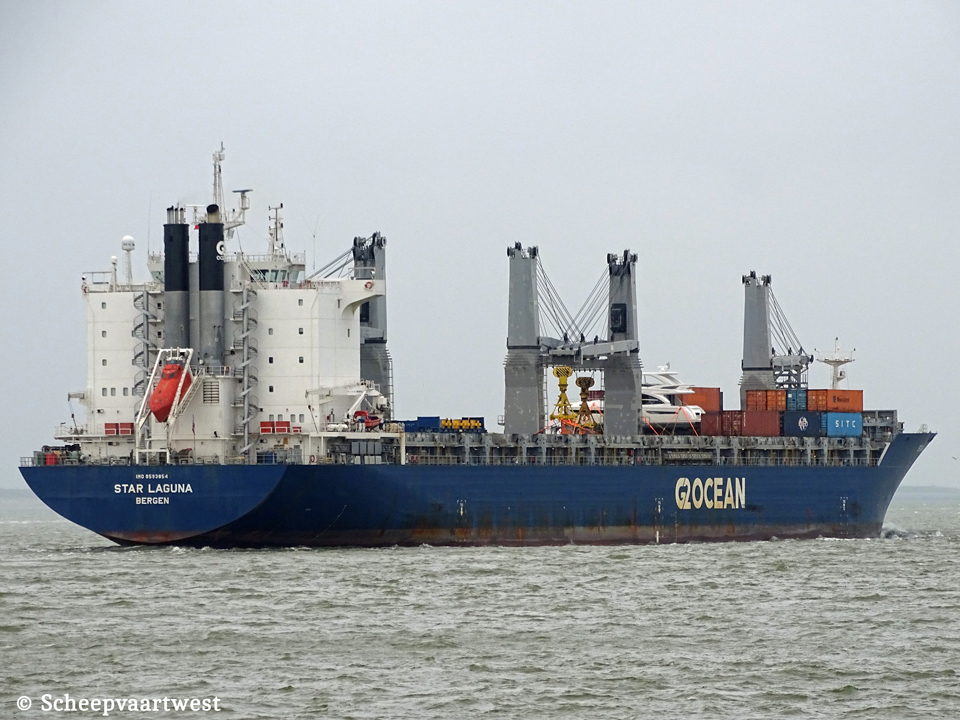

STAR LAGUNA |
|
Type |
Multi-purpose dry carrier |
|
Main products |
Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes |
|
IMO-number |
9593854 |
|
Call sign |
LAPD7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
37.447 t |
|
DWT |
50.761 t |
|
NT |
15.619 t |
|
Number of 20ft containers |
4.411 |
|
Length |
204,37 m overall 194,03 m between perpendiculars |
|
Breadth |
32,26 m moulded 32,30 m extreme |
|
Draught |
Summer: 12,64 m |
|
Depth |
19,00 m |
|
Speed |
Max: 16,1 knots Eco speed: 14,7 knots Super eco speed: 13,2 knots |
|
Built |
2012 |
|
Keel laid |
11/02/2012 |
|
Launch date |
21/05/2012 |
|
Delivery date |
26/09/2012 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
8075 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN B&W 5S60ME-C8.1 - 2 stroke 5 cylinder combustion engine MCR: 10.780 kW at 95,2 rpm NSR: 9.090 kW at 90,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler - 0,59 MPa Steam production: 1.600 kg/h 1x Exhaust gas economizer - 0,59 MPa Steam production: 1.200 Kg/h Manufacturer: Kangrim Heavy Industries Co., Ltd |
|
Generators |
3x Hyundai/Himsen 5H21/32 - 4 stroke 5 cylinder diesel engine each 960 kW at 900 rpm connected with HFC7 506-84K generators each 900 kW / 1.125 kVA |
|
Emergency generator |
1x Sisu 645 DSBIG/Norhavn Gasi 8-06E diesel generatorset 225 kVA / 180 kW |
|
Compressed air receivers |
2x Main air compressors Sperre XW150 - 165 m³/h capacity at 30,0 bar 1x Working air compressor Atlas Copco GA37VSD-175-60 388 m³/h capacity at 7,0 bar 1x Emergency air compressor Sperre XA030 - 35 m³/h capacity at 30,0 bar |
|
Number of holds |
9x Box-shaped Two removable tweendecks in hold no 4 and 7 |
|
Cargo hold capacity |
Bale Hold 1: 4.522 m³ Hold 2: 5.959 m³ Hold 3: 14.298 m³ Hold 4: 6.932 m³ Hold 5: 6.932 m³ Hold 6: 14.298 m³ Hold 7: 6.557 m³ Hold 8: 5.398 m³ Hold: 9 1.886 m³ Total: 66.773 m³ |
|
Hold ventilation |
Hold 1-2: 6 air changes per hour Hold 3-8: 2 air changes per hour |
|
Cargo space |
Under deck: 5.315 m² Weather deck: 3.882 m² |
|
Max permitted loads |
Hatch covers: 3,60 t/m² Tween decks: 5,50 t/m² Tank top # 2-8: 28,0 t/m² Tank top # 9: 5,50 t/m² |
|
Tank capacities |
Ballast: 20.365 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
4x MacGregor GLE7526 deck cranes - SWL 45,0 t each |
|
Crew size |
29 |
|
ISM manager |
Grieg Star AS C Sundtsg 17-19 5004 Bergen Norway |
|
Operator |
G2 Ocean AS Grieg-Gaarden, C. Sundtsgate 17 NO-5809 Bergen Norway |
|
Registered owner |
Grieg Shipping II AS C Sundtsg 17-19 5004 Bergen Norway |
|
Latest data adjustment |
11 May 2023 |
