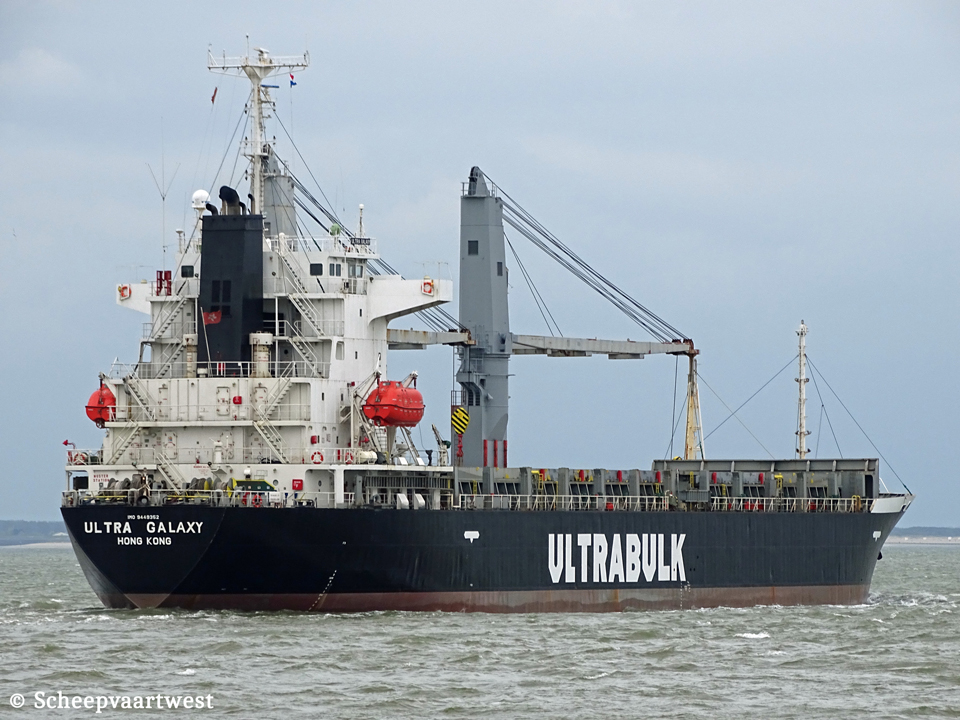

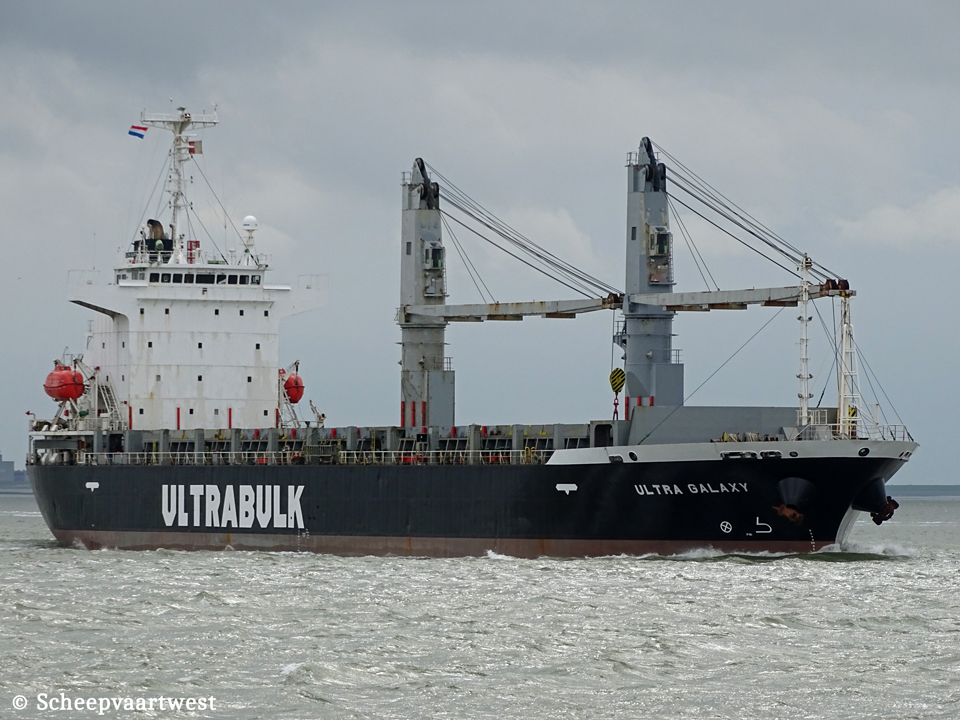

| Westerschelde 28 April 2018 |
 |
|
| Westerschelde 28/04/18 | |
|
Name |
ULTRA GALAXY |
|
Previous names |
2008 - 2011 Thor Galaxy 2011 - 2017 Thorco Galaxy |
|
Type |
Multi-purpose general cargo vessel - Fitted for carrying dangerous goods Handysize |
|
IMO-number |
9449352 |
|
Call sign |
3E3578 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2008 - 2022 Hong Kong, China - Call sign: VREO3 |
|
GRT |
10.021 t |
|
DWT |
13.802 t |
|
NRT |
4.520 t |
|
Number of 20ft containers |
538 |
|
Length |
124,56 m overall |
|
Breadth |
21,20 m moulded |
|
Draught |
Summer: 9,17 m |
|
Moulded L x B x D |
116,00 x 21,20 x 14,00 m |
|
Registered L x B x D |
117,72 x 21,20 x 14,00 m |
|
Air draft |
36,64 m |
|
Freeboard |
Summer: 4.865 mm |
|
Depth |
14,00 m moulded |
|
Speed |
Service: 13,0 knots Max: 15,2 knots |
|
Built |
2008 |
|
Keel laid |
10/04/2008 |
|
Launch date |
07/07/2008 |
|
Date of completion |
26/09/2008 |
|
Builder |
Honda Heavy Industries Co., Ltd. Saiki Japan |
|
Yard number |
1056 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6L35MC - 2 stroke single acting 6 cylinder 250 x 1.400 mm combustion engine 4.200 kW at 170,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 380 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,70 MPa Evaporation: 1,04 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
2x Main diesel generatorsets each 550 kW |
|
Bow thruster |
1x 596 kW |
|
Number of holds |
2 |
|
Hold space |
Hold 1: Tanktop: 585,67 m² Tweendeck: 654,37 m² Hatch cover: 405,00 m² Total: 1.645,04 m² Hold 2: Tanktop: 776,51 m² Tweendeck: 954,00 m² Hatch cover: 562,50 m² Total: 2.293,01 m² |
|
Cargo hold capacity |
Hold 1 bale/grain: 8.394,74 / 8.821,03 m³ Hold 2 bale/grain: 11.226,84 / 11.862,51 m³ Total bale/grain: 19.621,58 / 20.683,54 m³ |
|
Hold ventilation |
3x Air changes pr. hour Dehumidifier fitted in hold |
|
Max permitted loads |
Tanktop: 14,7 t/m² Tweendeck: 3,9 t/m² Hatch cover: 2,5 t/m² |
|
Tank capacities |
HFO: 724,40 m³ - 96% MGO: 94,38 m³ - 96% Fresh water: 100,16 m³ Ballast: 4.410,17 m³ |
|
Cargo gear |
2x Electro hydraulic cranes - SWL 50,0 t |
|
Crew size |
25 |
|
Manager |
TW Ship Management Private Limited |
|
Operator |
Ultrabulk A/S Smakkedalen 6 2820 Gentofte Denmark |
|
Registered owner |
Fujita Shoji Co., Ltd.,Tokyo - japan Futurum Partners Inc.- Republic of Panama |
|
Latest data adjustment |
11 May 2023 |
