| Westerschelde 19 May 2017 |
|
Name |

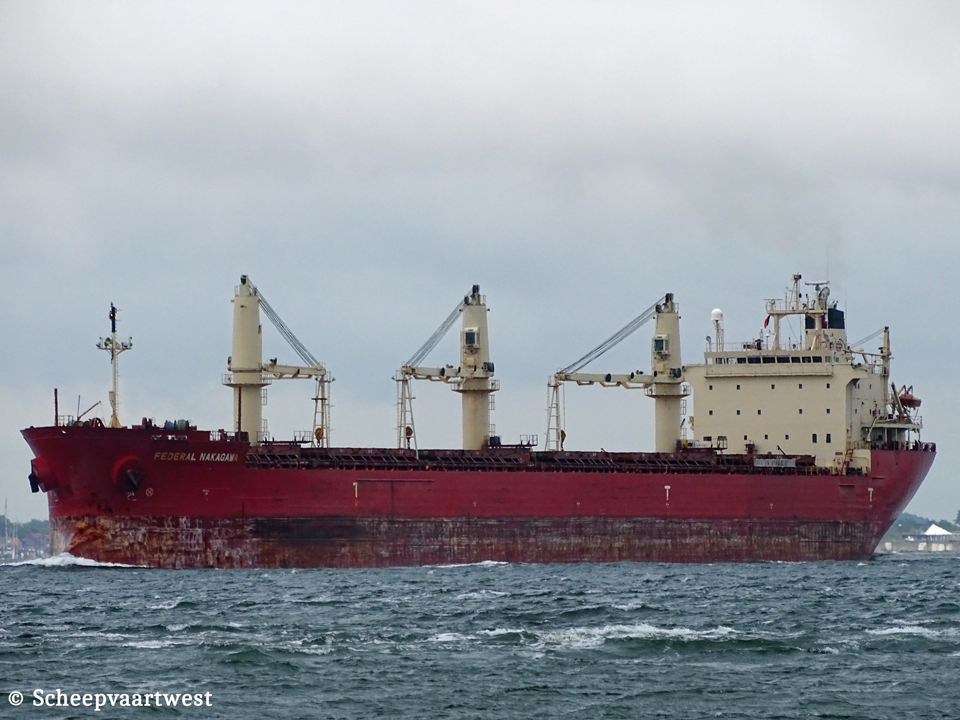

FEDERAL NAKAGAWA |
|
Type |
Geared bulk carrier - Handymax |
|
IMO-number |
9278791 |
|
Call sign |
V7RF9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2005 - 2016 Hong Kong - Call sign: VRAT7 |
|
GRT |
20.661 t |
|
DWT |
Summer: 36.489 t Winter: 35.517 t |
|
NRT |
12.020 t Panama: 17.263 t Suez: 18.942 t |
|
Length |
199,99 m overall 191,00 m between perpendiculars |
|
Breadth |
23,80 m extreme |
|
Draught |
Summer: 10,75 m Winter: 10,53 m |
|
Keel to mast end |
37,23 m |
|
Depth |
14,85 m |
|
Speed |
14,0 knots |
|
Built |
2005 |
|
Keel laid |
07/06/2002 |
|
Launch date |
21/01/2005 |
|
Date of completion |
25/02/2005 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10377 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 8 |
|
Continuous decks |
1x Fixed pitch mono-block propeller Builder: Nakashima Propeller Co., Ltd. |
|
Main engine |
1x MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.877 kW / 10.710 hp at 129,0 rpm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary boiler, composite Builder: Aalborg Industries A/S |
|
Generators |
3x Daihatsu 5DK-20 main diesel generatorsets each 400 kW |
|
Emergency generator |
1x Deutz BF6L913 diesel generatorset 118 kW |
|
Bow thruster |
1x 716 kW |
|
Number of holds |
6 Tanktop width forward / aft: Hold 1: 8,24 / 19,86 m Hold 2: 19,86 / 19,86 m Hold 3: 19,86 / 19,86 m Hold 4: 19,86 / 19,86 m Hold 5: 19,86 / 19,86 m Hold 6: 19,86 / 9,80 m Tanktop length: Hold 1: 26,08 m Hold 2: 26,98 m Hold 3: 25,18 m Hold 4: 21,58 m Hold 5: 26,08 m Hold 6: 26,06 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 7.109 / 6.866 m³ Hold 2: 7.990 / 7.663 m³ Hold 3: 7.499 / 7.166 m³ Hold 4: 6.394 / 6.089 m³ Hold 5: 7.759 / 7.412 m³ Hold 6: 7.333 / 7.093 m³ Total: 44.084 / 42.289 m³ |
|
|
|
|
Number of hatches |
6 Hatch 1: 17,10 x 13,20 m Hatch 2: 19,80 x 13,20 m Hatch 3: 19,80 x 13,20 m Hatch 4: 13,50 x 13,20 m Hatch 5: 19,80 x 13,20 m Hatch 6: 18,00 x 13,20 m |
|
Hatch type |
Folding hydraulic |
|
Max permitted loads |
Hold 1: 22,0 t/m² Hold 2: 20,50 t/m² Hold 3: 21,00 t/m² Hold 4: 24,50 t/m² Hold 5: 21,00 t/m² Hold 6: 22,00 t/m² |
|
Tank capacities |
IFO: 1.445 m³ MDO: 447 m³ Ballast: 19.683,75 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
3x Electro-hydraulic deck cranes - SWL 30,0 t each |
|
Crew size |
30 |
|
Commercial manager |
Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada. |
|
ISM manager |
Anglo Eastern Shipmanagement 17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong China |
|
Registered owner |
Baffin Investments Ltd. Care of Fednav Ltd , Bureau 3500 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Latest data adjustment |
28 May 2023 |
