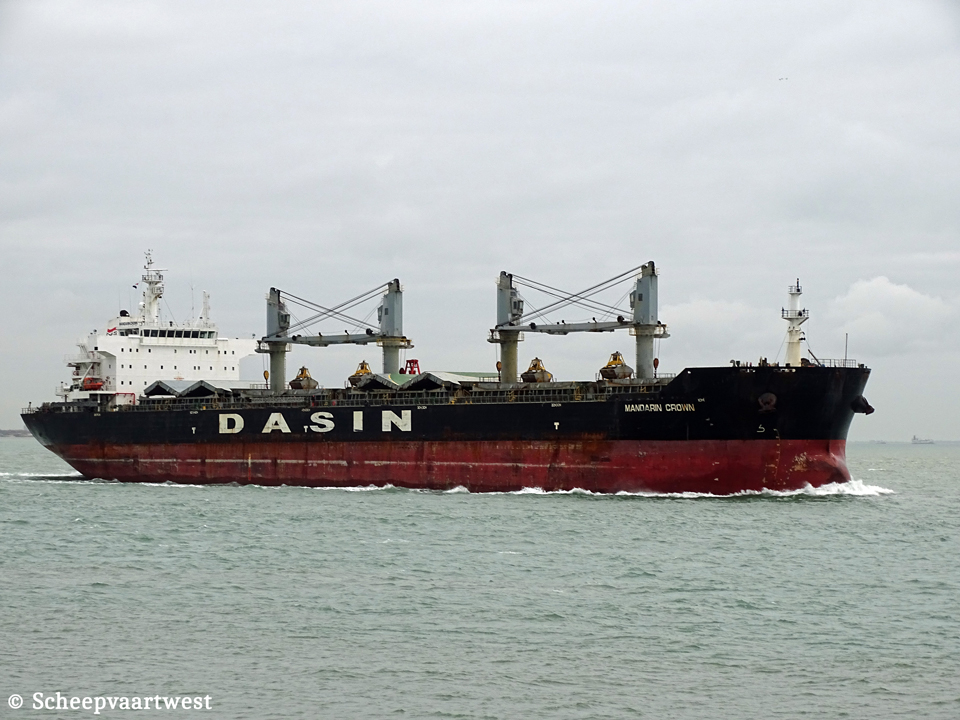

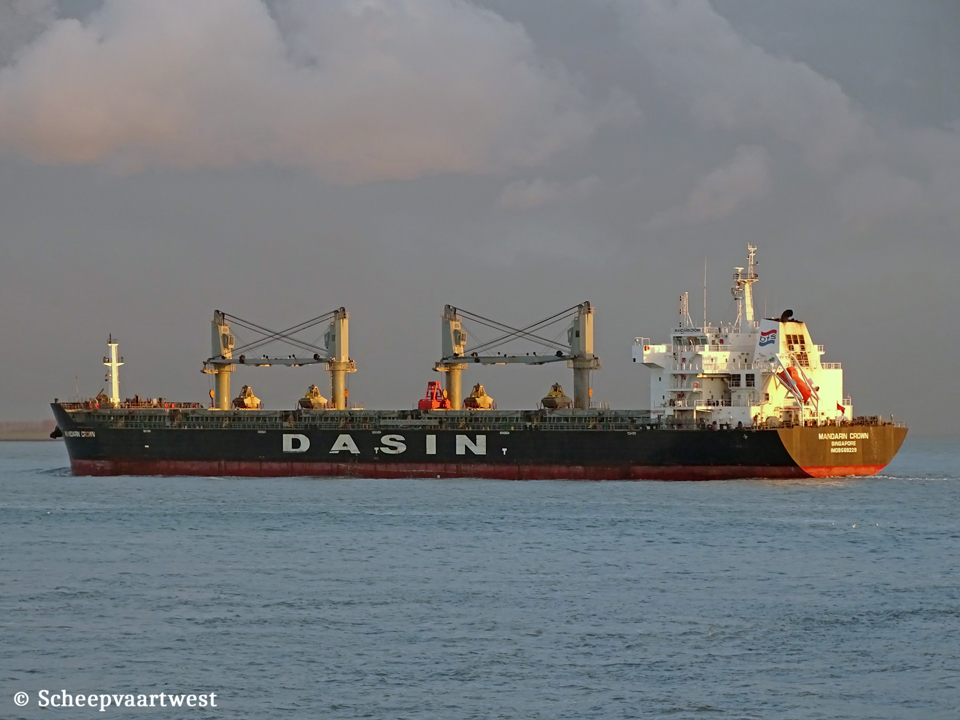

Mandarin Crown - IMO 9569229

Name

MANDARIN CROWN

Type

Bulk carrier

IMO-number

9569229

Call sign

9V8622

Flag

Republic of Singapore

Port of registry

Singapore City

GT

32.987 t

DWT

56.406 t

NT

19.231 t

Length

189,99 m overall

185,00 m between perpendiculars

Breadth

32,28 m extreme

Draught

Summer: 12,80 m

Depth

18,00 m moulded

Speed

14,2 knots

Built

2012

Keel laid

28/11/2011

Launch date

13/03/2012

Date of completion

11/06/2012

Builder

Jiangsu Hantong Ship Heavy Industry Co., Ltd.

Tongzhou City

China

Yard number

HT082

Hull material

Shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm

Starter type:Compressed air direct

Propellers

1x Fixed pitch propeller

4 blades

Generators

3x Main diesel generatorsets each 750 kVA

Emergency generator

1x Diesel generatorset 123,8 kVA

Number of holds

5

Cargo hold capacity

Grain / bale:

Hold 1: 12.300 m³ / 13.009,86 m³

Hold 2: 14.700 m³ / 15.333,25 m³

Hold 3: 14.000 m³ / 14.553,08 m³

Hold 4: 14.700 m³ / 15.333,27 m³

Hold 5: 12.500 m³ / 13.404,64 m³

Total: 68.200 m³ / 71.634,10 m³

Hold ventilation

Natural

Tank capacities

HFO: 2.169,77 t (98%)

MDO: 121,42 t (98%)

Lub oil: 123,8 m³

Fresh water: 465,41 t

Anchor equipment

3x Anchors weight each 8.700 kg

Chain length 632,50 m

Cargo gear

4x NMF electro - hydraulic cranes - SWL 35,0 t

Manager

Dasin Shipping Pte Ltd.

Republic of Singapore

Registered owner

Mandarin Crown Shipping Pte Ltd.

Republic of Singapore

Renamed

07/2022 Eastern Magnolia

Liberia, Monrovia - Call sign: 5LFM2

Owner: Huaxia Shengli Tianjin Leasing - China

Operator: EGPN Bulk Carrier Co. Ltd.

Latest data adjustment

14 June 2023
