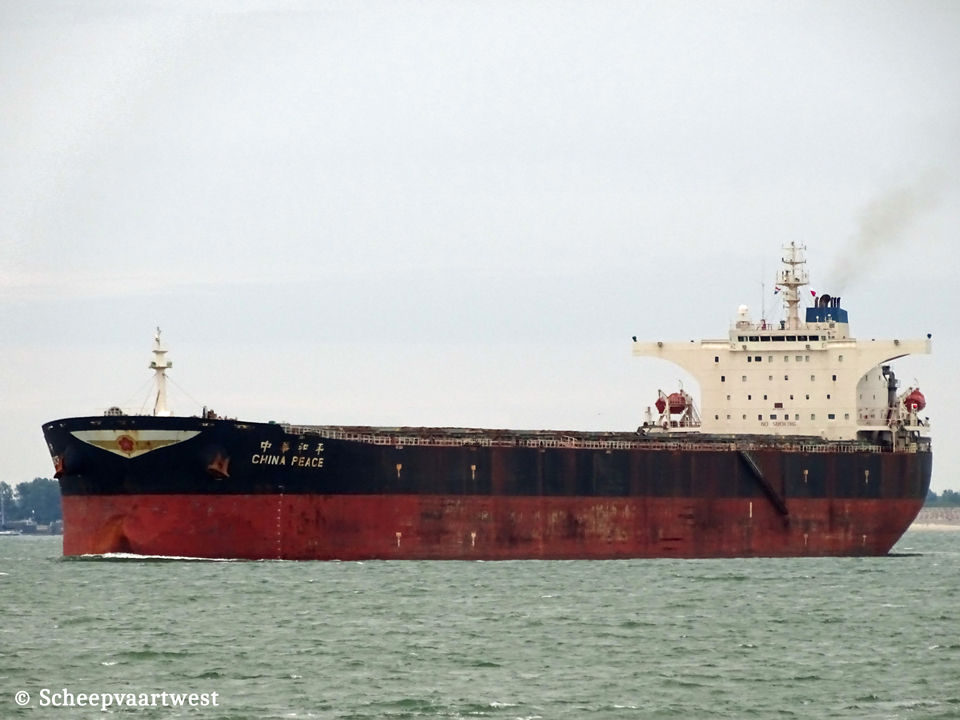

| Westerschelde 15 July 2017 |
|
Name |
CHINA PEACE |
|
Type |
Bulk carrier - Strengthened for the carriage of heavy cargoes |
|
IMO-number |
9329447 |
|
Call sign |
VRBA2 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
88.930 t Suez: 90.226,78 t |
|
DWT |
174.413 t |
|
NT |
58.083 t Suez: 83.576,82 t |
|
Displacement |
197.779 t |
|
Length |
289,00 m overall 278,20 m between perpendiculars |
|
Breadth |
45,00 m moulded |
|
Draught |
Summer: 18,12 m |
|
Keel to mast end |
52,68 m |
|
Freeboard |
6.432 mm |
|
Depth |
24,50 m moulded |
|
Speed |
15,0 knots |
|
Built |
2005 |
|
Keel laid |
14/09/2004 |
|
Launch date |
18/03/2005 |
|
Delivery date |
07/06/2005 |
|
Builder |
Shanghai Waigaoqiao Shipbuilding Co., Ltd. 3001 Zhouhai Road Pudong New Area Shanghai, 200137 China |
|
Yard number |
H1020 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S70MC - 2 stroke 6 cylinder 700 x 2.674 mm combustion engine Mcr 16.860 kW at 91,0 rpm Manufacturer: Dalian Marine Diesel Works |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
Auxiliary smoke tube exhaust gas and fired boiler OVS2 type vertical composite boiler - 7,0 MPa Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 750 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of holds |
9 |
|
Cargo hold capacity |
Grain: 193.134,75 m³ Bale: 183.478,96 m³ |
|
Number of hatches |
9 |
|
Tank capacities |
Ballast: 140.852,77 m³ Fuel oil: 4.595,59 m³ Lub oil: 228,38 m³ Fresh water: 576,38 m³ Diesel oil: 74,41 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 5,0 t manufacturer: Jiangyin Changjiang Ship Equipment Factory 2x Fuel Oil Hose/Suez Boat Handling Crane Port &Stbd - SWL 4,0 t 2x Provision/Engine Parts Handling Crane Port &Stbd - SWL 5,0 Manufacturer: Zhenjiang Marine Auxiliary Machinery Works |
|
ISM & commercial manager |
CMT - Chinese Maritime Transport Ltd. 9th Floor, Chinese Maritime Building, 15, Jinan Road Section 1, Zhongzheng District Taipei City, 10051, China Republic of (Taiwan) |
|
Registered owner |
China Peace Shipping Ltd. Care of Chinese Maritime Transport Ltd. 9th Floor, Chinese Maritime Building, 15, Jinan Road Section 1, Zhongzheng District Taipei City, 10051, China Republic of (Taiwan) |
|
Latest data adjustment |
18 June 2023 |
