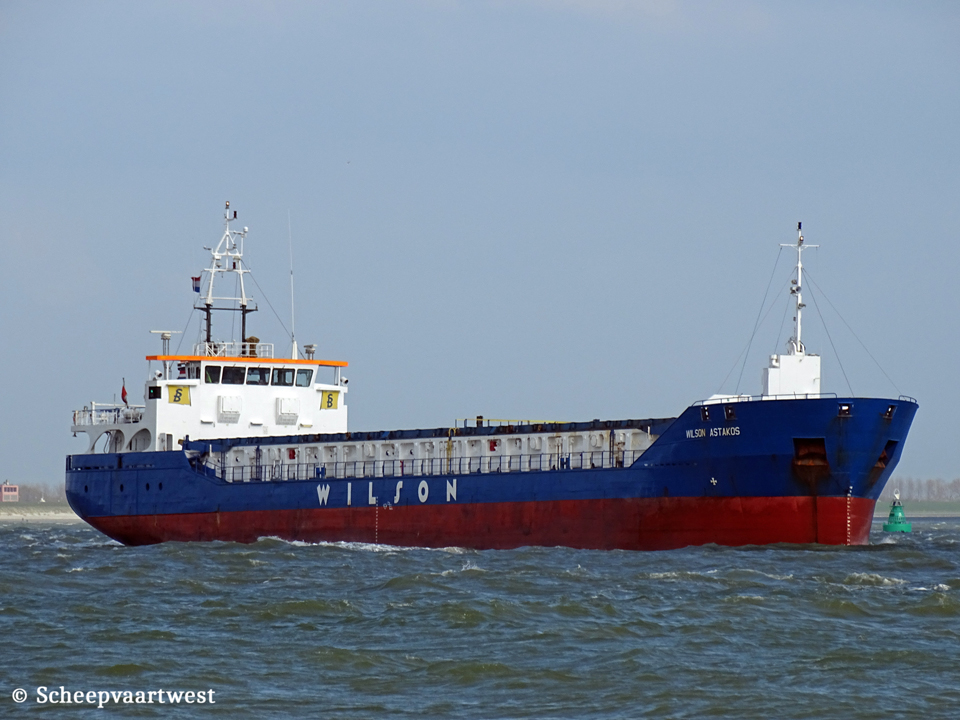

Wilson Astakos IMO 9313759 03
Westerschelde 18 April 2016

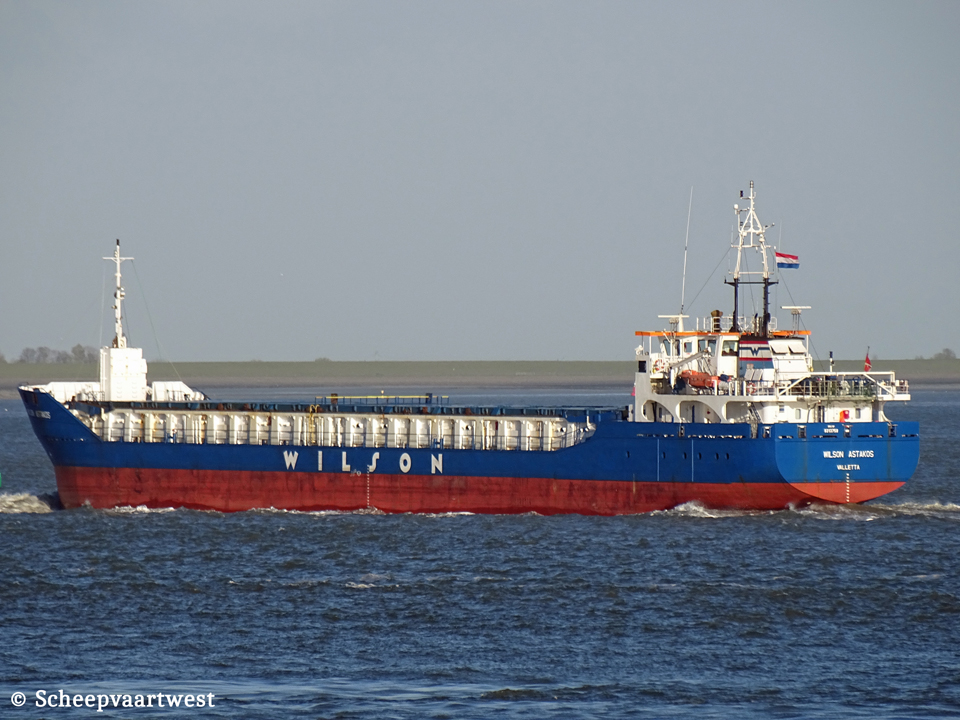

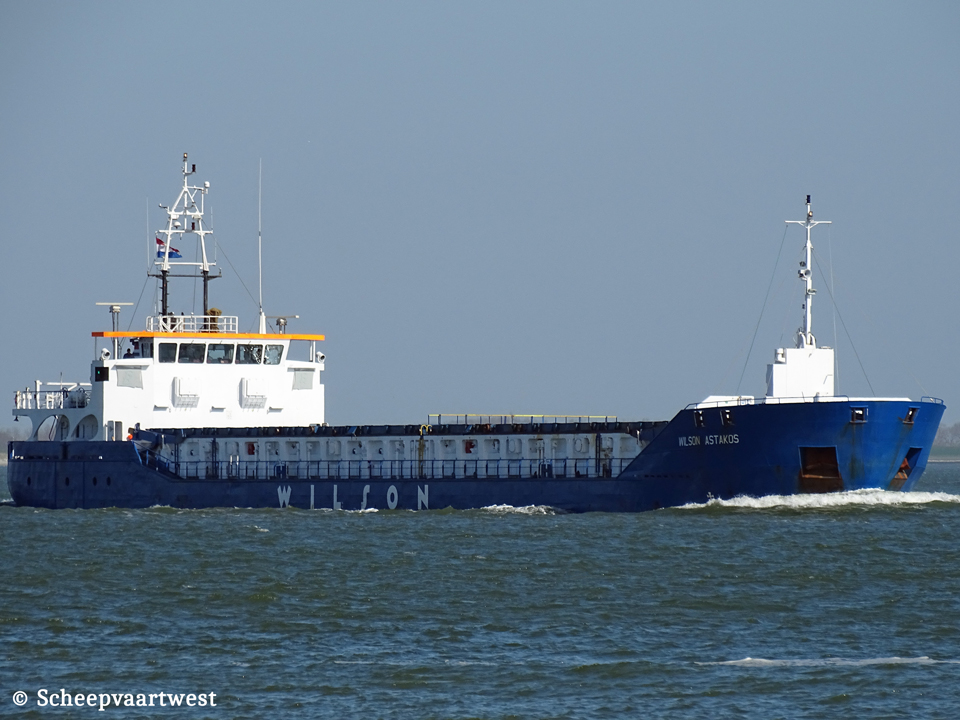

Wilson Astakos IMO 9313759 02   Wilson Astakos IMO 9313759 01
Westerschelde 19/04/16   Westerschelde 19/04/16


Name

WILSON ASTAKOS

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9313759

Call sign

LXWL

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

Previous flags

2010 - 2019 Malta, Valletta - Call sign: 9HA2370

2019 - 2020 Germany - Call sign: DGLH2

GT

2.451 t

DWT

Summer: 3.598 t

Winter: 3.485 t

NT

1.325 t

Number of 20ft containers

20 on hatch no. 2 only

Length

88,26 m overall

84,58 m between perpendiculars

Breadth

12,50 m extreme

12,40 m moulded

Draught

Summer: 5,14 m

Winter: 5.03 m

Keel to top antenna

20,80 m, forward

23,64 m, aft

Depth

6,70 m

Speed

Max: 10,5 knots

Built

2010

Keel laid

27/08/2003

Launch date

06/06/2010

Date of completion

29/07/2010

Builder

Slovenske Lodenice Komarno A.S.

Komarno

Slovakia

Yard number

2118

Hull material

Steel

Movable bulkheads

2x Moveable bulkheads, 11 position

Main engine

1x Wärtsilä 6L20 - 4 stroke 6 cylinder 200 x 280 mm combustion engine 1.200 kW / 1.632 hp at 1.000 rpm

Gearbox

1x Reintjes WAF 843L K41

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired 1(Hot water heater)

Generators

1x Sisu 49 CTAG diesel generatorset

1x Sisu 84 CTA diesel generatorset

Emergency generator

1x Sisu 49 DTG diesel generatorset

Bow thruster

1x Jastram BU 20 F - 130 kW

Number of holds

2x Box type

Hold 1: 25,20 x 10,10 x 7,77 m

Hold 2: 31,80 x 10,10 x 7,77 m

Cargo hold capacity

Grain/Bale:

Hold 1: 1.951 m³/ 68.891 ft³

Hold 2: 2.478 m³ / 87.501 ft³

Total: 4.429 m³ / 156.392 ft³

Number of hatches

2

Hatch 1: 25,20 x 10,10 m

Hatch 2: 31,80 x 10,10 m

Hatch type

System TTS multifold crocodile

Max permitted loads

Deck/hatch-cover: 1,6 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Ballast: 1.377,3 m³

MGO: 73 m³

IFO: 107 m³

Anchor equipment

Length: 412,50 m

Diameter: 30 mm

Crew size

8

ISM manager & commercial

Vertom Bereederungs GmbH & Co., KG

Borgwardring 80

26802 Moormerland

Germany

Registered owner

Vertom-Bojen Schiffahrts MS "GATA NONEKA" GmbH & Co., KG

Care of Kapitan Siegfried Bojen-Schiffahrtsbetrieb eK,

Borgwardring 80

26802 Moormerland

Germany

Latest data adjustment

01 July 2023
