| Westerschelde 24 March 2019 |
|
Name |

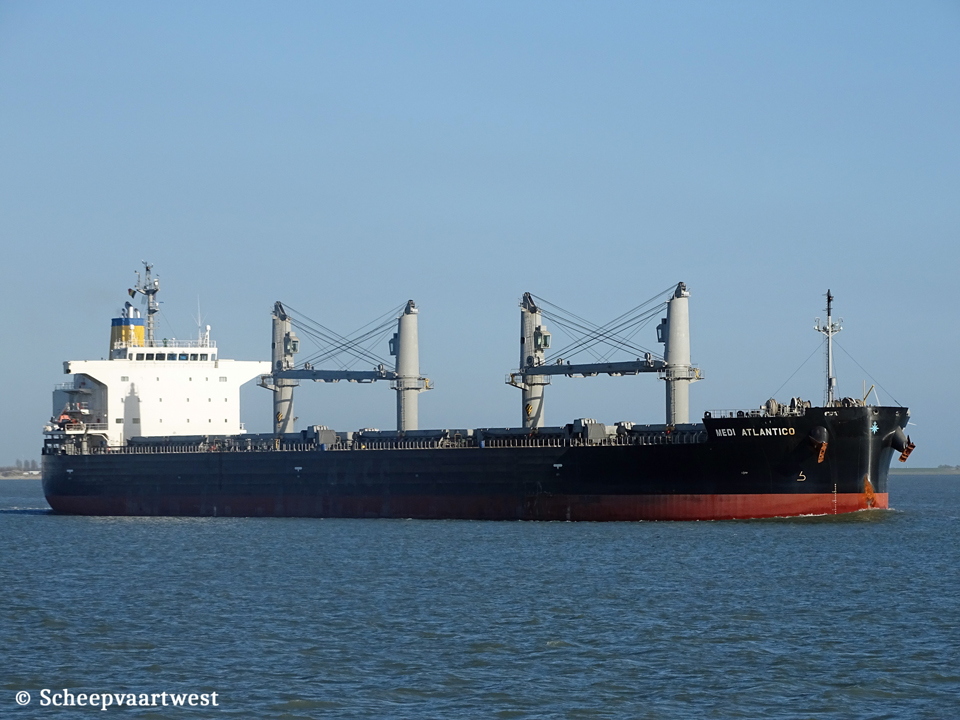

MEDI ATLANTICO |
|
Previous names |
2016 - 2019 DACC Atlantico |
|
Type |
Geared grab fitted bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9774446 |
|
Call sign |
D5SQ3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2016 - 2019 Malta, Valletta - Call sign: 9HA4349 |
|
GT |
34.049 t Suez: 35.001,54 t |
|
DWT |
60.550 t |
|
NT |
19.883 t Suez: 31.933,06 t Panama: 28.210 t |
|
Displacement |
70.903 t |
|
Length |
199,89 m overall 196,13 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,82 m |
|
Keel to mast end |
52,95 m |
|
Freeboard |
5.536 mm |
|
Depth |
18,33 m moulded |
|
Speed |
14,3 knots |
|
Built |
2016 |
|
Keel laid |
14/12/2015 |
|
Launch date |
07/07/2016 |
|
Delivery date |
30/08/2016 |
|
Builder |
Oshima Shipbuilding Co., Ltd. 1605-1 Oshima-Cho, Saikai City, 857-2494 Japan |
|
Yard number |
10777 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine Mcr 7.260 kW / 9.871 hp at 99,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary composite boiler - 6,9 MPa Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 620 kW Manufacturer: HHI Electro Electric System |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 74.917 m³ Grain: 76.518 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Ballast: 33.557,50 m³ Lub oil: 19,40 m³ Diesel oil: 104,40 m³ Fuel oil: 2.085,60 m³ Fresh water: 379,90 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each 4x Grabs: 12 m³ each Manufacturer: Iknow Machinery Co., Ltd. |
|
Crew |
24 |
|
Manager |
Ishima Pte Ltd. 34-01, 6, Battery Road Singapore 049909 Republic of Singapore |
|
Registered owner |
D'Amico Dry Designated Activity Company The Anchorage, 17-19, Sir John Rogerson's Quay Dublin 2 Ireland |
|
Latest data adjustment |
10 August 2023 |
