| Westerschelde 10 February 2016 |
|
Name |

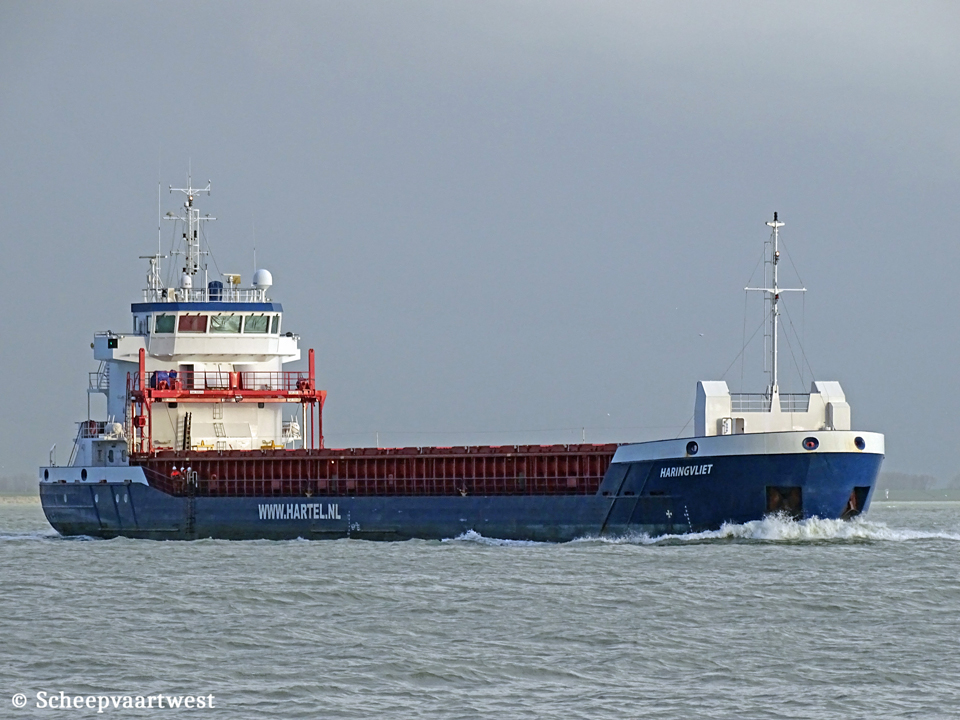

HARINGVLIET |
|
Type |
General cargo vessel - Strengthened for heavy cargoes - Containers cargoes |
|
IMO-number |
9625229 |
|
Call sign |
PCRN |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
2.597 t |
|
DWT |
3.850 t |
|
DWCC |
3.300 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 108 On deck: 80 Total: 188 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,67 m extreme 12,50 m moulded |
|
Draught |
Summer: 5,42 m |
|
Keel to mast end |
24,80 m |
|
Air draft |
21,50 m |
|
Depth |
7,00 m moulded |
|
Speed |
Max: 12,5 knots |
|
Built |
2012 |
|
Keel laid |
14/12/2010 |
|
Launch date |
10/2011 |
|
Delivery date |
28/11/82012 |
|
Builder cvasco |
Santierul Naval Damen Galati S.A. Galati Romania Yard number: 1216 |
|
Builder completion |
B.V. Scheepswerf Damen Bergum Bergum The Netherlands Yard number: 9413 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable bulkheads |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine Mcr 1.520 kW / 2.067 hp at 1.000 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 226,0 rpm |
|
Boilers |
1x Hot water heater |
|
Generators |
1x Generatorset 140 kW / 400 Volt 50 Hz 1x Generatorset 259 kW / 400 Volt 50 Hz |
|
Bow thruster |
1x Fixed pitch thruster 220 kW / 299 bhp, forward |
|
Number of holds |
1x Box shaped 62,50 x 10,12 x 8,43 m |
|
Cargo hold capacity |
Grain/Bale: 5.250 m³ |
|
Number of hatches |
1 62,50 x 10,12 m |
|
Tank capacities |
Ballast: 1.340 m³ HFO: 156 m³ |
|
Manager |
Hudig & Veder Chartering BV Debussystraat 2 3161 WD Rhoon The Netherlands |
|
Operator |
Hartel Shipping & Chartering BV Debussystraat 2 3161 WD Rhoon The Netherlands |
|
Registered owner |
Beheermaatschappij m.s. Haringvliet B.V. Rotterdam The Netherlands |
|
Latest data adjustment |
27 August 2023 |
