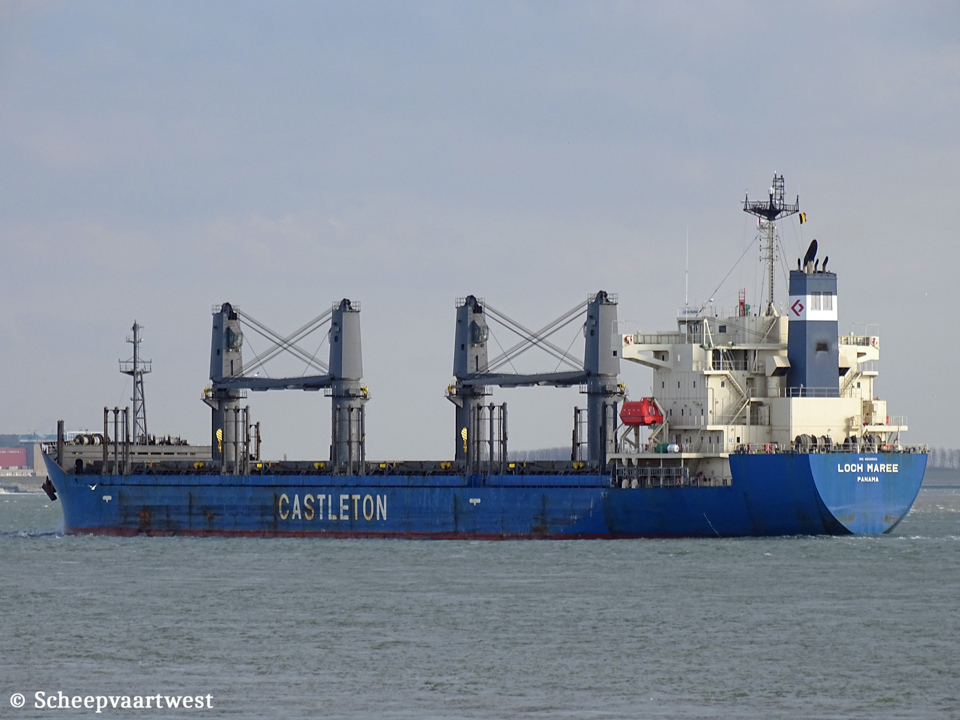

| Westerschelde 12 February 2016 |
|
Name |
LOCH MAREE |
|
Type |
Bulk carrier - Lumber carrier |
|
IMO-number |
9658800 |
|
Call sign |
3FVK4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
21.168 t Suez: 21.670 t |
|
DWT |
33.382 t |
|
NT |
10.765 t Suez: 19.786 t Panama: 17.654 t |
|
Length |
176,83 m overall |
|
Breadth |
28,80 m moulded |
|
Draught |
Summer: 9,83 m |
|
Moulded L x B x D |
169,50 x 28,80 x 14,20 m |
|
Registered L x B x D |
170,70 x 28,80 x 14,20 m |
|
Freeboard |
Summer: 4.427 mm |
|
Depth |
14,20 m moulded |
|
Speed |
Max: 15,6 knots |
|
Built |
2013 |
|
Keel laid |
19/12/2012 |
|
Launch date |
20/05/2013 |
|
Date of completion |
20/08/2013 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. Imabari Japan |
|
Yard number |
5776 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x 1.840 mm combustion engine 6.200 kW at 111,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 1,55 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 1.565 kVA |
|
Number of holds |
5 Hold 1: 24,00 x 20,60 x 12,42 m Hold 2: 28,80 x 26,40 x 12,42 m Hold 3: 28,80 x 26,40 x 12,42 m Hold 4: 28,80 x 26,40 x 12,42 m Hold 5: 28,80 x 26,40 x 12,42 m |
|
Cargo hold capacity |
Grain / bale: Hold 1: 6.278,25 / 6.265,47 m³ Hold 2: 9.538,81 / 9.365,35 m³ Hold 3: 9.575,27 / 9.400,21 m³ Hold 4: 9.502,36 / 9.376,94 m³ Hold 5:8.310,71 / 8.145,15 m³ Total: 43.205 m³ / 42.503 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.539 m³ Fresh water: 315 m³ |
|
Cargo gear |
4x Deck cranes |
|
Crew size |
24 |
|
Manager |
Castleton Commodities Shipping Singapore City Republic of Singapore |
|
Owner |
MK Shipmanagement Tokyo Japan |
|
Renamed |
2022 Majesty Star Liberia, Monrovia - Call sign: 5LEM3 Owner: Majesty Star Shipping SA Manager: Meadway Shipping and Trading Inc. |
|
Latest data adjustment |
27 August 2023 |
