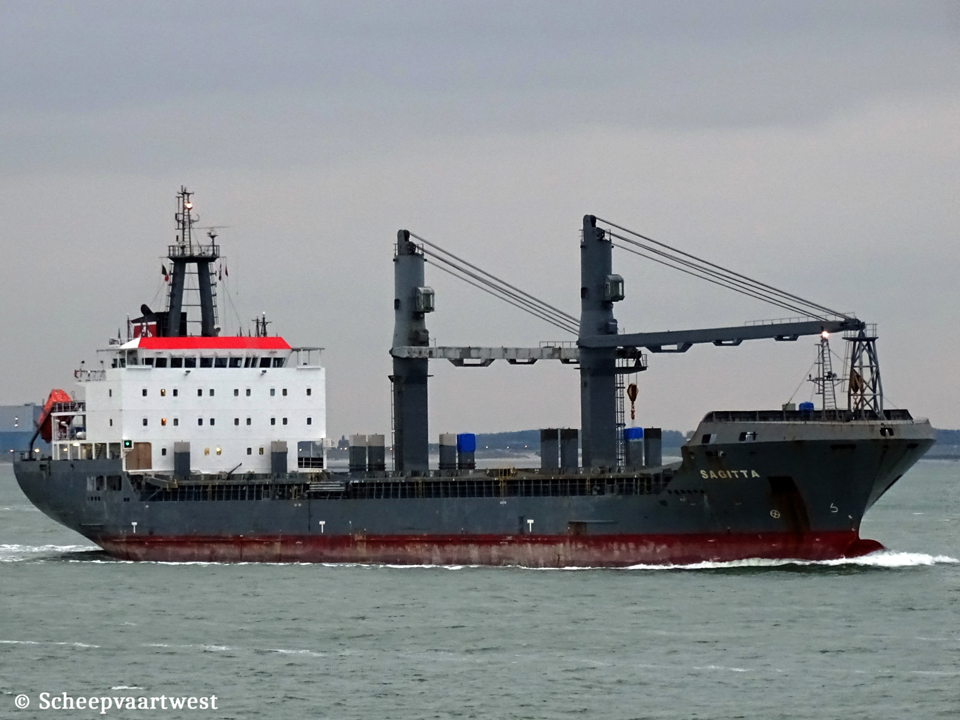

Westerschelde 12 October 2016 |
|
Name |
SAGITTA |
|
Type |
Boxshaped/open hatch general cargo vessel Minibulker 13000 |
|
IMO-number |
9370109 |
|
Call sign |
V2DG3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
9.556 t |
|
DWT |
13.464 t |
|
NT |
4.404 t |
|
Number of 20ft containers |
1.850 |
|
Container capacity 14t |
1.300 |
|
Reefer capacity |
300 |
|
Length |
138,07 m overall 130,00 m between perpendiculars |
|
Breadth |
21,00 m moulded |
|
Draught |
Summer: 8,00 m |
|
Depth |
11,00 m moulded |
|
Speed |
Max: 15,1 knots |
|
Built |
2008 |
|
Keel laid |
15/09/2007 |
|
Launch date |
26/11/207 |
|
Date of completion |
21/02/2008 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co., Ltd. China |
|
Yard number |
YZJ2005-694C |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7S35MC - 2 stroke 7 cylinder 350 x 1.400 mm combustion engine 5.180 kW / 7.043 hp at 173,0 rpm Build: 2007 Builder: MAN Group, München - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 173,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 26,8 m² Heating surface: 197,5 m² Build: 2007 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
1x Plant 450 V - 500 kVA 1x Plant 450 V - 500 kVA 1x Plant 450 V - 500 kVA 1x Plant 450 V - 875 kVA 1x Plant 450 V - 125 kVA |
|
Shaft generator |
1x 875 kVA |
|
Generators |
3x Main diesel generatorsets each 500 kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Compressed air receivers |
1x Receiver 50 litres - 33,0 bar 2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 160 liters- 30,0 bar 1x Receiver 250 litres - 11,0 bar 1x Receiver 80 litres - 8,3 bar |
|
Bow thruster |
Transverse thruster 500 kW, forward |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain: 16.230 m³ / 548.500 ft³ |
|
Number of hatches |
3 |
|
Tank capacities |
Ballast: 4.395,2 m³ |
|
Anchor equipment |
3 Anchors weight each 4.320 kg Chain length: 550,00 m |
|
Cargo gear |
2x Deck cranes - SWL 25,0 t each |
|
Manager |
Peter Döhle Schiffahrts-KG Elbchaussee 370 22609 Hamburg Germany |
|
Registered owner |
Dohle Bulk GmbH & Co KG Elbchaussee 370 22609 Hamburg Germany |
|
Latest data adjustment |
08 October 2023 |
