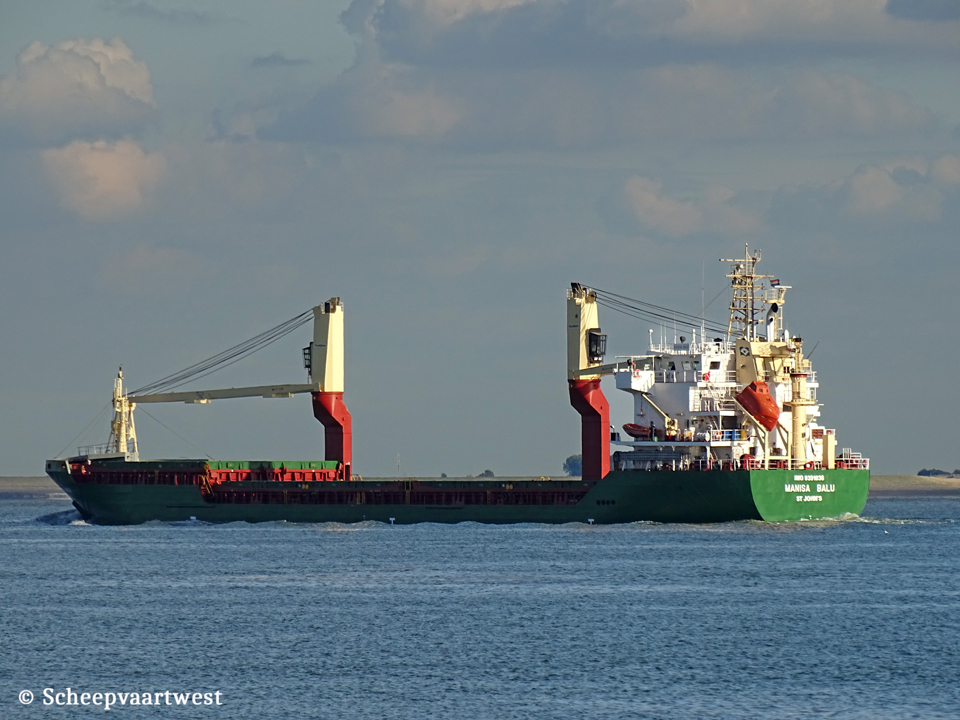

| Westerschelde 09 October 2016 |
|
Name |
MANISA BALU |
|
Type |
Geared multi-purpose cargo vessel |
|
IMO-number |
9391036 |
|
Call sign |
CQXA |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
Antigua & Barbuda, St. John’s - Call sign: V2DL6 Malta, Valletta - Call sign: 9HA4516 |
|
GT |
5.629 t Suez: 5.799,54 t |
|
DWT |
8.076 t |
|
NT |
2.877 t Suez: 4.727,15 t Panama: 4.788 t |
|
Length |
108,20 m overall 103,90 m between perpendiculars |
|
Breadth |
18,20 m |
|
Draught |
Summer: 7,05 m |
|
Depth |
9,00 m to main deck |
|
Speed |
Max: 12,4 knots |
|
Built |
2008 |
|
Keel laid |
19/11/2004 |
|
Launch date |
27/03/2008 |
|
Date of completion |
09/06/2008 |
|
Builder |
Jiangsu Yangzijiang Shipyard Jiangyin China |
|
Yard number |
YZJ2005-702C |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7S26MC - 7 cylminder combustion engine 2.800 kW / 3.806 hp |
|
Propellers |
1x Controllable pitch propeller - aft at 225 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 8,0 bar Heating surface: 17,1 m² Heating surface: 63,9 m² Builder: Alfa Laval Aalborg A/S |
|
Electric installations |
2x Plant 440 V - 456 kVA 1x Plant 440 V - 440 kVA 1x Plant 440 V - 331 kVA 2x Plants each 24 V - 24 Ah 2x Plants each 24 V - 65 Ah 2x Plants each 24 V - 80 Ah 2x Plants each 24 V - 100 Ah 2x Plants each 24 V - 160 Ah 2x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 440 kVA |
|
Generators |
2x MAN D2876LE301 main diesel generatorsets each 456 kVA |
|
Emergency generator |
1x MAN D2866LXE20 diesel generatorsets 331 kVA |
|
Batteries |
2x Batteries for UPS navigation each 200 Ah 2x Batteries for UPS radio each 100 Ah 2x Batteries for start auxiliary engine each 80 Ah 2x Batteries for start emergency engine each 80 Ah 2x Batteries for start auxiliary engine each 80 Ah 2x Batteries for diesel control each 65 Ah 2x Batteries for automation each 24 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 75 litres - 10,0 bar 1x Receiver 250 litres - 7,0 bar |
|
Bow thruster |
1x Jastram BU 40F - 255 kW |
|
Number of holds |
3
|
|
Cargo hold capacity |
Hold 1: 95.844 ft³ Hold 2: 137.837 ft³ Hold 3: 130.984 ft³ Total Grain capacity: 364.665 ft³ |
|
Hold ventilation |
6x Air changes/hour by two independent fans |
|
Number of hatches |
3 Hatch 1: 17,50 x 15,20 m Hatch 2: 25,90 x 15,20 m Hatch 3: 25,90 x 15,20 m |
|
Hatch cover type |
Hydraulic folding type hatch covers |
|
Max permitted loads |
Hatch 1: 2,2 t/m² Hatches 2&3: 2,5 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel IFO: 400 m³ Fuel GO: 60 m³ Fresh water: 80 m³ Ballast: 2,500 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Cargo gear |
1x Macgregor cranes starboard side mounted - SWL 25,0 t each Max. outreach : 26,00 m |
|
Crew size |
15 |
|
Manager |
GRS Rohden Shipping GmbH & Co. KG Michaelisstraße 24 20459 Hamburg Germany |
|
Registered owner |
Manisa Bulk SRL Riviera di Chiaia, 215 80121 Napoli NA Italy |
|
Latest data adjustment |
10 November 2023 |
