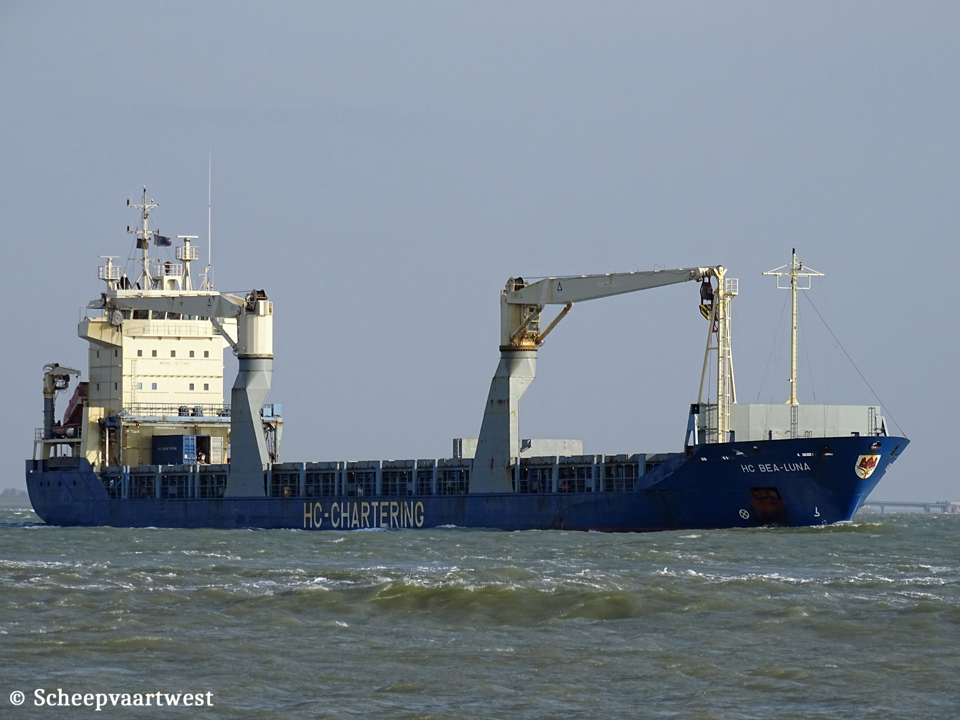

| Westerschelde 27 Fenruary 2016 |
|
Name |
HC BEA-LUNA |
|
Previous names |
2000 build as: Tatjana 2000 - 2002 Tatjana 2002 - 2013 TMC Brazil |
|
Type |
Multi-purpose geared dry cargo ship strengthened for heavy cargo and equipped for carrying container |
|
IMO-number |
9235488 |
|
Call sign |
V2AU7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
6.382 t |
|
DWT |
9.000 t at 7,45 m summer draft |
|
NT |
3.419 t |
|
Container capacity 14t |
In Hold: 262 On Deck: 32 Total: 294 |
|
Reefer capacity |
60 Reefer plugs |
|
Length |
129,45 m overall 123,08 m between perpendiculars |
|
Breadth |
15,85 m |
|
Draught |
Summer: 7,39 m |
|
Depth |
10,20 m |
|
Speed |
Max: 15,7 knots |
|
Built |
2000 |
|
Builder casco |
Damen Galati Galati Romania |
|
Builder completion |
Damen Shipyards Hoogezand The Netherlands |
|
Hull material |
Steel |
|
Main engine |
1x MaK 9M32C - 9 cylinder combustion engine 4.320 kW / 5.875 hp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Bow thruster |
1x 400 kW |
|
Number of holds |
2 Hold 1: 38,65 x 13,15 x 11,05 m Hold 2: 52,19 x 13,15 x 11,05 m all heights without tweendeck |
|
Cargo hold capacity |
Grain/Bale:without tweendecks Hold 1: abt 184.873 ft³ / 5.235 m³ Hold 2: abt 266.271 ft³ / 7.540 m³ Total: abt 451.144 cbft / 12.775 With tweendecks Hold 1: abt 4.907,9 m³ Hold 2: abt 7087,9 m³ |
|
Number of hatches |
2 Hatch 1: 38,65 x 13,15 m Hatch 2: 52,19 x 13,15 m |
|
Floor space |
Weatherdeck:
Tweendeck:
Tanktop:
Tweendeck panels can be placed in hold 1 or 2 or as bulkheads |
|
Max permitted loads |
Tanktop load abt 20,0 t/m² Tweendeck load abt 3,5 t/m² Weatherdeck load abt 1,75 t/m² |
|
Cargo gear |
2x Cranes starboard side mounted, - SWL 60,0 t each 60 at 16m outreach Combinable upto 120 t Capacity/Outreach: 60 t/16,00 m - 40 t/26,00 m - 30 t/28,40 m |
|
Operator |
HC Chartering GmbH & Co. KG Ahrensburg Germany |
|
Owner |
HC-Chartering Gmbh & Co. Kg Breite Straße 61 22767 Hamburg Germany |
|
Renamed |
2020 Esen Republic of Panama, Panama City - Call sign: 3FFK7 Owner: Esen Shipping Corporation |
|
Latest data adjustment |
14 November 2023 |
