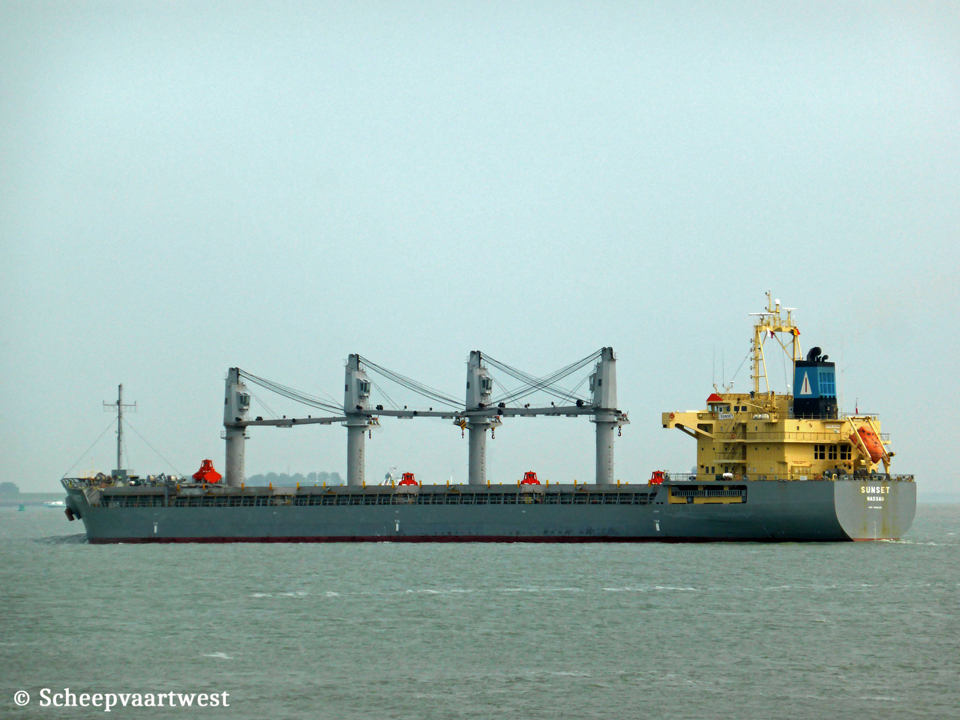

| Westerschelde 22 May 2015 |
|
Name |
SUNSET |
|
Type |
Bulk carrier - Carriage of dangerous goods - Handysize |
|
IMO-number |
9402122 |
|
Call sign |
C6XY4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GRT |
22.697 t |
|
DWT |
37.334 t |
|
NRT |
12.674 t |
|
Length |
177,84 m overall 169,80 m between perpendiculars |
|
Breadth |
28,60 m moulded |
|
Draught |
Summer: 10,86 m |
|
Moulded L x B x D |
169,80 x 28,60 x 15,00 m |
|
Registered L x B x D |
170,58 x 28,60 x 15,00 m |
|
Freeboard |
Summer: 4.190 mm |
|
Depth |
15,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2009 |
|
Keel laid |
06/03/2009 |
|
Launch date |
08/06/2009 |
|
Delivery date |
28/07/2009 |
|
Builder |
Saiki Heavy Industries Co., Ltd. Japan |
|
Yard number |
1178 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Bulkheads |
Watertight: 48 Non tight: 8 Oil tight:7 |
|
Main engine |
1x Mitsubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine Mcr 7.080 kW / 9.626 hp at 133,0 rpm Manufacturer: Akasaka Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 452 mm |
|
Propellers |
1x Fixed pitch solid keyless propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary vertical composite boiler - 6,9 bar Evaporation: 2,14 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 440 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 45.706,85 m³ Grain: 46.030,12 m³ |
|
Number of tanks |
Ballast: 14 Lubricating oil: 11 Fuel oil: 9 Fresh water: 6 Diesel oil: 5 Sludge: 4 Chain: 2 Waste water: 2 |
|
Tank capacities 100% |
Diesel oil: 315,36 m³ Freshwater: 233,68 m³ Fuel oil: 1.450,89 m³ Lube oil: 92,226 m³ Tank ballast: 14.299,32m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 2,6 t Manufacturer: Futaba Mfg. Co., Ltd. 1x Provision crane - SWL 1,5 t Manufacturer: Mansei Inc. |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Manufacturer: Mitsubishi Heavy Industries Ltd. |
|
Crew size |
25 |
|
Manager |
Alberta Shipmanagement Ltd. 26A Ioannou Apostolopoulou Chalandri 152 31, Athens Greece |
|
Registered owner |
Sashiko Maritime SA, Athens - Greece Care of Alberta Shipmanagement |
|
Latest data adjustment |
27 November 2023 |
