| Westerschelde 03 April 2016 |
|
Name |

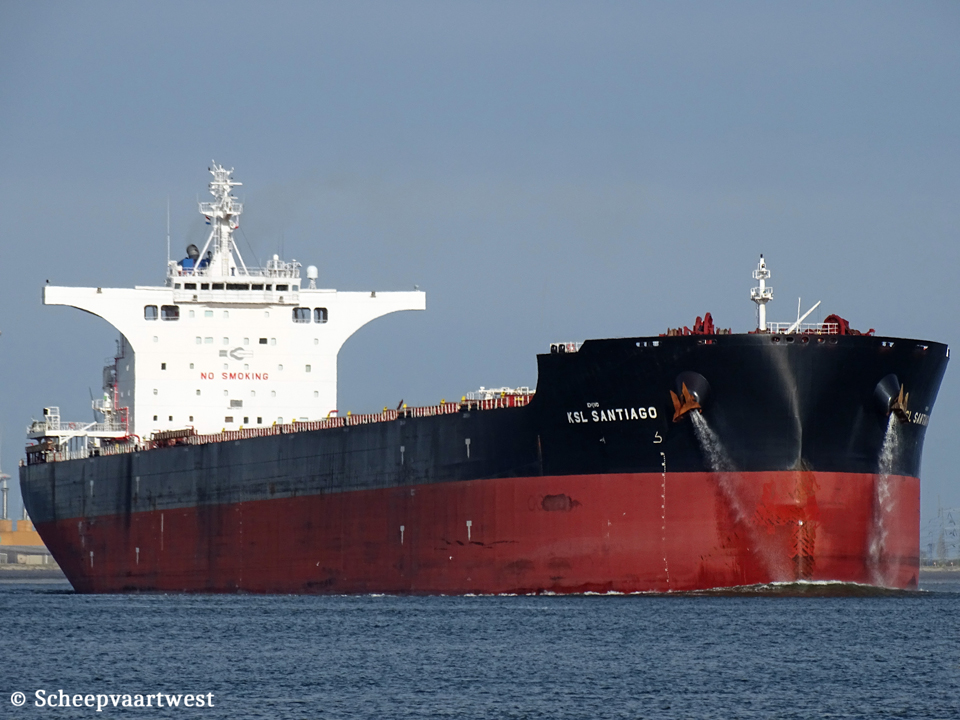

KSL SANTIAGO |
|
Location |
Westerschelde 30 April 2016 |
|
Type |
Bulk carrier - Capesize |
|
IMO-number |
9719927 |
|
Call sign |
VRNR4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
94.742 t Suez: 96.155,32 t |
|
DWT |
181.020 t |
|
NT |
58.889 m³ Suez: 89.772,6 t Panama: 91.063 t |
|
Displacement |
207.591 t |
|
Length |
292,00 m overall 286,40 m between perpendiculars |
|
Breadth |
45,00 m moulded |
|
Draught |
Summer: 16,10 m |
|
Freeboard |
6.637 mm |
|
Depth |
24,90 m moulded |
|
Built |
2014 |
|
Keel laid |
05/05/2014 |
|
Launch date |
26/07/2014 |
|
Delivery date |
22/09/2014 |
|
Builder |
Shanghai Waigaoqiao Shipbuilding Co., Ltd. 3001 Zhouhai Road Pudong New Area Shanghai, 200137 China |
|
Yard number |
H1329 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x CMD/MAN-B&W 6G70ME-C9.2-TII - 2 stroke 6 cylinder 700 x 3.256 mm combustion engine Mcr 15.748 kW / 21.411 hp at 75,0 rpm Manufacturer: CSSC-MES Diesel Co., Ltd. - China |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
1x Fired exhaust gas boiler (Composite boiler) - 7,0 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd.-Changzhou Office |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: Zhenjiang China Xiandai Generating Co., Ltd. |
|
Number of holds |
9 |
|
Cargo hold capacity |
Grain:197.101,3 m³ Bale: 183.425 m³ |
|
Number of hatches |
9 |
|
Tank capacities |
Lub oil: 268,90 m³ Fresh water: 656,10 m³ Diesel oil: 319,50 m³ Fuel oil: 4.128,50 m³ Ballast: 145.668,5 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 8,0 t Manufacturer: Jiangyin Chengjiang Ships Equipment Co., Ltd. 1x Provisions crane Port - SWL 10,0 t 1x Provisions crane Starboard - SWL 4,0 t Manufacturer: Ningbo Kairong Ship Machinery Co., Ltd. |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Commercial manager |
Golden Ocean Group Ltd. Par la Ville Place, 14, Par la Ville Road Hamilton, HM 08 Bermuda |
|
ISM manager |
Thome Ship Management Pte Ltd. 43-01, Hong Leong Building, 16, Raffles Quay Singapore 048581 Republic of Singapore |
|
Registered owner |
Front Santiago Inc. Care of Golden Ocean Group Ltd. (GOGL) Par la Ville Place, 14, Par la Ville Road Hamilton, HM 08 Bermuda |
|
Latest data adjustment |
11 Decembzer 2023 |
