Westerschelde 29 March 2020 |
Name |

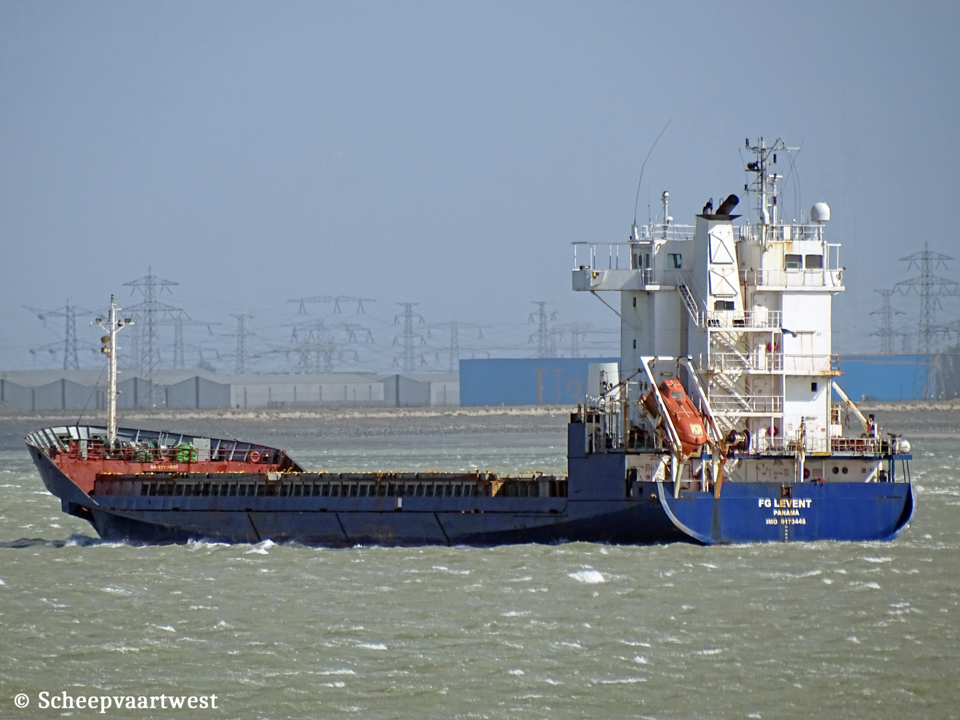

FG LEVENT |
Previous names |
1998 - 11/2009 Heike 2009 - 2015 Sider Panarea |
Type |
Multi-purpose carrier |
IMO-number |
9173446 |
Call sign |
3FHC8 |
Flag |
Republic of Panama |
Port of registry |
Panama City |
Previous flags |
1998 - 2003 Germany, Hamburg - Call sign: DKIV 2003 - 2008 United Kingdom 2008 - 2009 Germany 2009 - 2020 Malta, Valletta - Call sign: 9HA2176 |
GT |
2.979 t |
DWT |
4.384 t |
NT |
1.733 t |
Number of 20ft containers |
366 |
Reefer capacity |
40 |
Length |
99,51 m overall 92,19 m between perpendiculars |
Breadth |
16,90 m moulded |
Draught |
Max: 6,17 m |
Keel to mast end |
29,00 m |
Forecastle |
13,30 m |
Poop |
12,35 m |
Deckhouse |
7,80 m |
Freeboard |
1.380 mm |
Depth |
7,55 m moulded |
Speed |
Max: 14,8 knots |
Built |
1998 |
Keel laid |
17/03/1998 |
Launch date |
25/06/1998 |
Delivery date |
11/11/1998 |
Builder |
Lurssen Kroeger Werft GmbH & Co. KG Rendsburg Germany |
Yard number |
1544 |
Hull material |
Shipbuilding steel (standard) |
Hull type |
Double side skin - Double bottom |
Watertight bulkheads |
4 |
Main engine |
1x MAN-B&W 12V28/32 - 4 stroke 12 cylinder 280 x 320 mm combustion engine 2.940 kW / 3.997 hp at 775 rpm Build: 1998 |
Propellers |
1x Controllable pitch propeller - aft at 231 rpm |
Boilers |
1x Water heater, oil fired - 5,0 bar Heating surface: 15,2 m² |
Electric installations |
2x Plants each 440/220 V - 320 kVA 1x Plant 440 V - 783 kVA 1x Plant 440 V - 32 kVA |
Shaft generator |
1x Marelli Motori generator 783 kVA |
Generators |
2x MAN D2866LE main diesel generatorsets each 230 kVA |
Emergency generator |
1x Diesel generatorset 32 kVA |
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 350 kW, forward |
Number of holds |
2 |
Cargo hold capacity |
Grain: 4.456 m³ Bales: 4.166 m³ |
Number of hatches |
3 Hatch 1: 25,60 x 13,20 m Hatch 2: 25,35 x 13,29 m Hatch 3: 6,20 x 10,56 m |
Tank capacities |
Fuel oil: 254 m³ Ballast: water: 1.661 m³ |
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m |
Crew size |
15 |
ISM & commercial manager |
FG Denizcilik Sanayi Ve Ticaret A.S. 14, Kat 8, Daire 81, Cebi Natura Plaza, 1992 Sokak, Barbaros Hayrettin Pasa Mah, Esenyurt, Istanbul Turkey |
Registered owner |
FG Shipping & Trading Ltd. Ataköy 7-8-9-10. Kısım Mah. Çobançeşme E-5 Yanyol akırköy / İstanbul / Türkiye |
Previous named & owners |
1998 -2008 Heike - ms "Heike" Schiffahrts GmbH & Co KG 2008 - 2009 Sider Panarea - Sider Navi International 2009 Heike - Viest Sg SA |
Latest data adjustment |
20 December 2023 |
